Salice America UBYE2812004820

Name: Salice America UBYE2812004820 Coplanar Vertical Sliding Door System for Wall Cabinets, 480mm Door Height - 1 Set
Brand: Salice America
SKU: Salice America UBYE2812004820
Price: 1493.25 USD

Salice America UBYE2812004820 Coplanar Vertical Sliding Door System for Wall Cabinets, 480mm Door Height - 1 Set

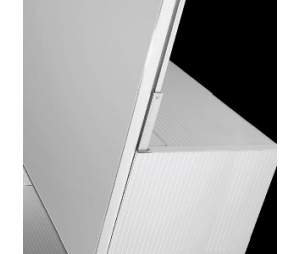

× This image is for a similar product but it will differ in size, color and/or other attributes.

Salice America UBYE2812004820 Coplanar Vertical Sliding Door System for Wall Cabinets, 480mm Door Height - 1 Set

Price: $1,493.25 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Vernon Hills, IL Warehouse Qty: 1

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Salice America UBYE2812004820 Coplanar Vertical Sliding Door System for Wall Cabinets, 480mm Door Height - 1 Set

Coplanar Vertical Sliding Door System for Wall Cabinets
Mover Series
Vertical sliding system for single door
Door dimensions:

900W x 600 H mm (35-7/16" x 23-5/8") - weight from 6 kg (13 lb) to 8 kg (18 lb)
1200W x 600 H mm (47-7/32" x 23-5/8") - weight from 10 kg (22 lb) to 12 kg (27 lb)
1800W x 600 H mm (71-1/16" x 23-5/8") - weight from 15 kg (33 lb) to 17 kg (38 lb)
2400W x 600 H mm (94-1/2" x 23-5/8") - weight from 19 kg (42 lb) to 21 kg (46 lb)

Telescopic guides thickness 20mm
Height adjustment ± 3mm (± 1/8")
Door weight adjustment ± 1 kg (±2 lb)
480mm height door available as special order
Aluminum profile in 6060T5 alloy, anodized in silver ARC10
Components for the transmission and regulation (cables in VECTRAN fiber; components in ZAMAC 13 alloy, components in pressed plastic)
The system parts can be cleaned with a soft cloth using water and soap. Do not use any solvents or abrasive products
The products and it components must not be disposed of in the environment; for disposal, please use public disposal systems

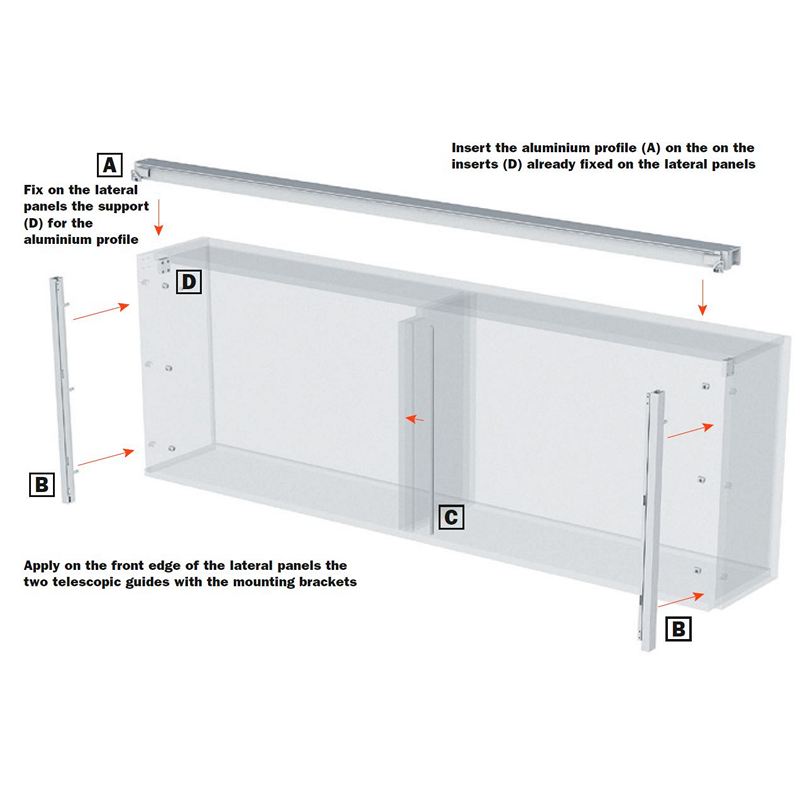

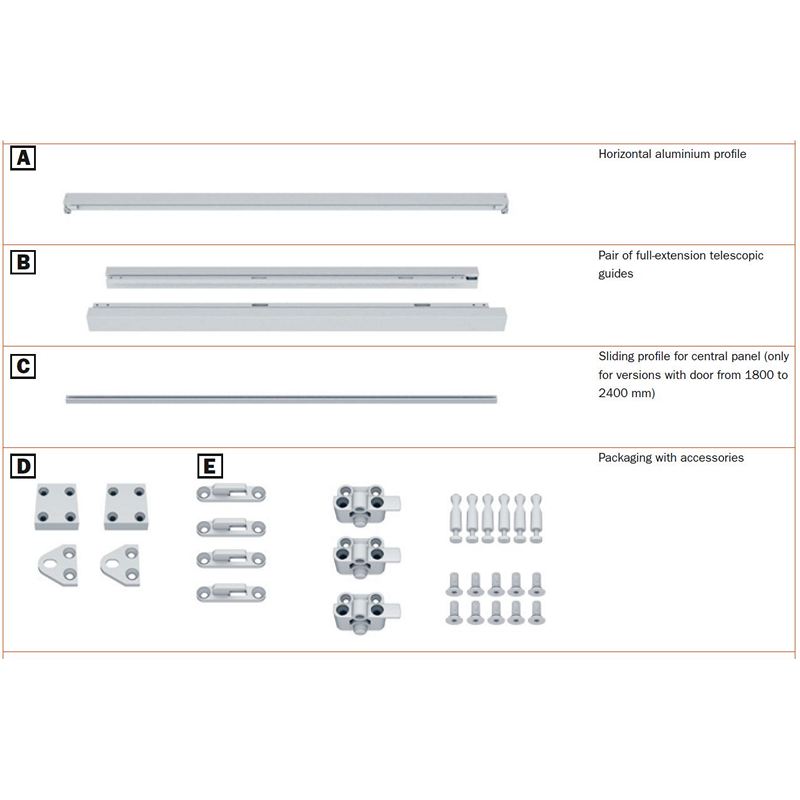

The kit assembly consists of:

1 horizontal aluminum profile
1 pair of full extension telescopic guides
1 sliding profile for central panel (only for versions with door width from 1,800 to 2,400mm)
1 pack with hardware accessories

Door Width: 1200mm
Door Height: 477mm
Door Weight: 7 - 9 kg
Total Cabinet Height: 480 mm
Internal Cabinet Width: 1163mm
MPN Code: YE2812004820
Packing & Sold as: Set.
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one one set. Price is for one set.
