Salice America UBCSP3699

Name: Salice America UBCSP3699 One Piece Self-Closing Face Frame Hinge for 9/16" Overlay, Screw-On - Nickel-Plated Finish
Brand: Salice America
SKU: Salice America UBCSP3699
Price: 2.78 USD

Salice America UBCSP3699 One Piece Self-Closing Face Frame Hinge for 9/16" Overlay, Screw-On - Nickel-Plated Finish

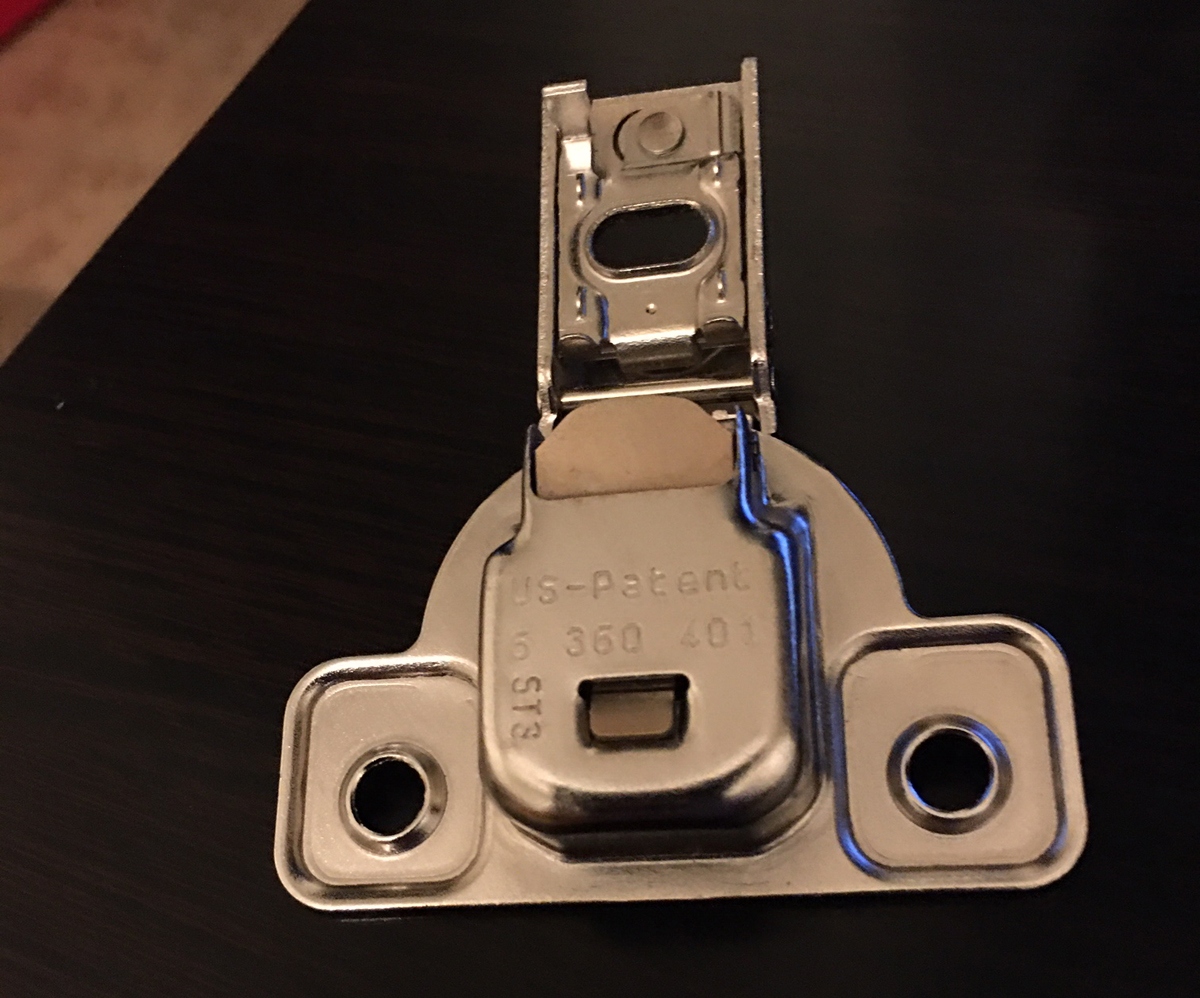

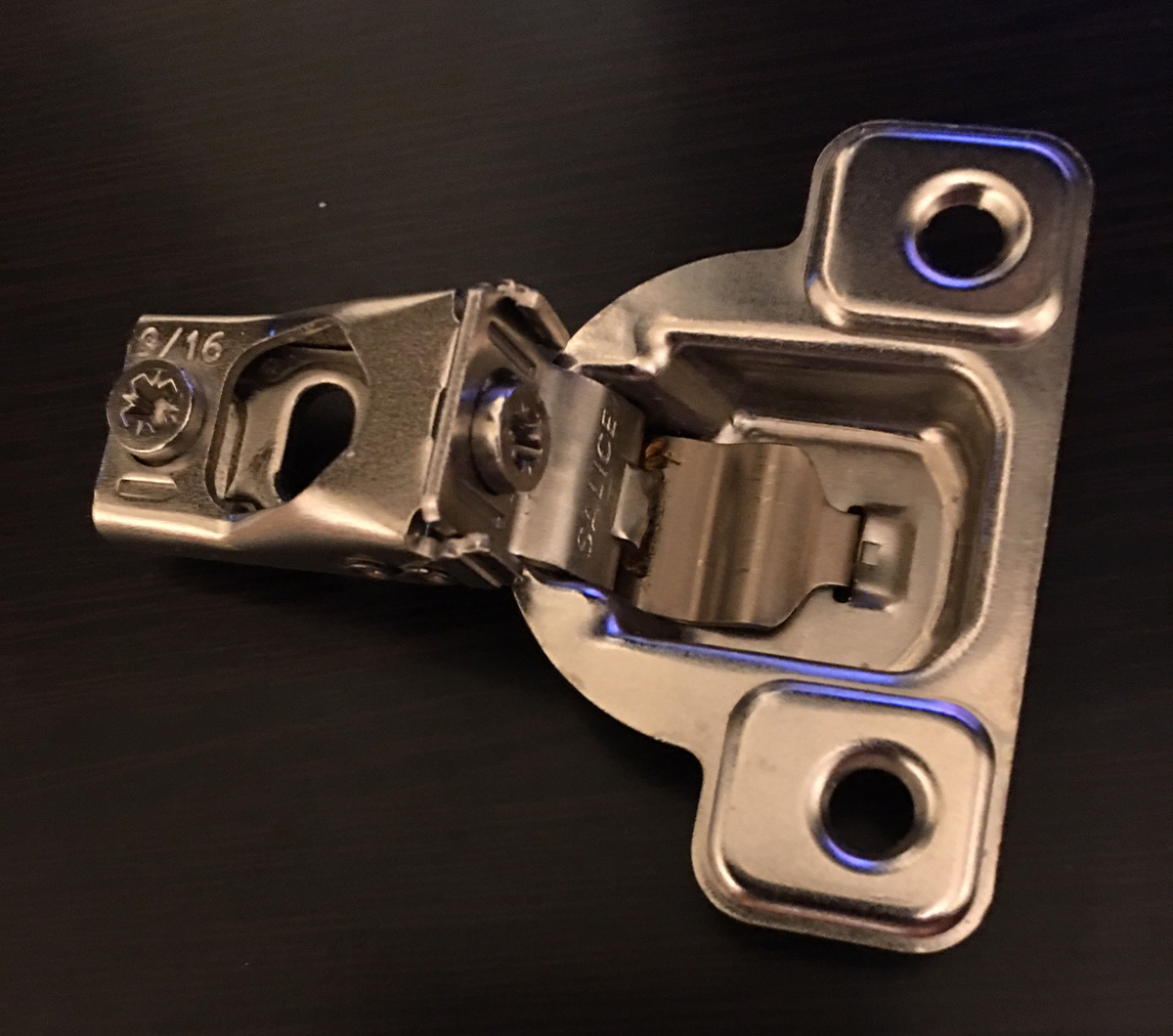

× This image is for a similar product but it will differ in size, color and/or other attributes.

Salice America UBCSP3699 One Piece Self-Closing Face Frame Hinge for 9/16" Overlay, Screw-On - Nickel-Plated Finish

Video Review Salice America UBCSP3699 One Piece Self-Closing Face Frame Hinge for 9/16" Overlay, Screw-On - Nicke

Price: $2.78 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Vernon Hills, IL Warehouse Qty: 1086

For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Salice America UBCSP3699 One Piece Self-Closing Face Frame Hinge for 9/16" Overlay, Screw-On - Nickel-Plated Finish

One Piece Self-Closing Face Frame Hinge
Two Cam Adjustment
Salice Excentra face frame hinges have all steel one piece construction with nickel plating to resist corrosion and have a lifetime warranty
A cup depth of only 11mm allows this hinge to be used on most door styles
Excentra, two cam adjustment hinges provide: cam depth adjustment (+2.8mm to -0.5mm), cam lateral adjustment (+3.0mm to -2mm) and slotted screw hole height adjustment (+/-2 mm)
Hinge cup edge drilling distance is 2.5mm
Excentra hinges with overlays of 1/2" and greater have "zero door protrusion"
Hinge is designed to work with cabinet doors up to 3/4" thick
Excentra hinges are available in two cabinet door fixing designs: "Screw-On" via two #6 x 5/8" wood screws (not included) and "Press-In" 8mm dowels
All hinges are self-closing design
Excentra face frame hinges are designed to work with Salice Type U soft-close devices
Opening Angle: 106°
Overlay: 9/16"
Fixing Type: Screw-On
Boring Pattern: 45 mm
Closing Type: Self-Closing
Mounting Type: Wrap-Around
Box Quantity: 50 Each
Cup Depth: 11 mm
MPN Code: CSP3699
Packing: 50 hinges per box. Sold in both broken and full box quantities.
Unit of measure is EA and Boxes. Each Box contains 50 hinges. When you are purchasing a quantity of 1 you will get one hinge. When you are purchasing a quantity of 50 you will get one box which contains 50 hinges. Price is for one hinge.
