Salice America UBC7R6NE9AM

Name: Salice America UBC7R6NE9AM Overlay Blind Corner Soft-Close Hinge, Dowel
Brand: Salice America
SKU: Salice America UBC7R6NE9AM
Price: 11.47 USD

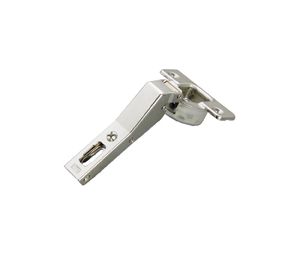

Salice America UBC7R6NE9AM Overlay Blind Corner Soft-Close Hinge, Dowel

× This image is for a similar product but it will differ in size, color and/or other attributes.

Salice America UBC7R6NE9AM Overlay Blind Corner Soft-Close Hinge, Dowel

Price: $11.47 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Vernon Hills, IL Warehouse Qty: 77

Kansas City, MO Warehouse Qty: 85

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Salice America UBC7R6NE9AM Overlay Blind Corner Soft-Close Hinge, Dowel

Overlay Blind Corner
Silentia Series 700 positive and negative angle hinges are designed for use in both residential and commercial cabinets
The soft-close mechanism is completely hidden from view within the hinge cup
Cup depth of 13.5mm making the hinge compatible with most cabinet door profiles
Hinge cup edge drilling distance of 3mm to 8mm
Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
Available in two cup fastening designs: "Dowel" with two #6 x 5/8" screws (not included) and "Press-in" dowels
Series 700 hinges are designed to work with Salice mounting plates
Opening Angle: 110°
Fixing Type: Dowel
Boring Pattern: 45mm
Closing Type: Soft-Closing
MPN Code: C7R6NE9AM
Packing & Sold as: 150 each/box. Sold in both broken and Half box quantities.
Note: Unit of measure is EA and Boxes. Each Box contains 150 pieces. When you are purchasing a quantity of 1 you will get one piece. When you are purchasing a quantity of 150 you will get one box of 150 pieces. We are able to break open the box quantity, therefore we are able to sell you this item in multiples other than 150. Price is for one piece.
