Rockwood SP1080

Name: Rockwood SP1080 1/4 - 20 Cone Head WS
Brand: Rockwood
SKU: Rockwood SP1080
Price: 5.83 USD

Rockwood SP1080 1/4 - 20 Cone Head WS

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $5.83 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 16

For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

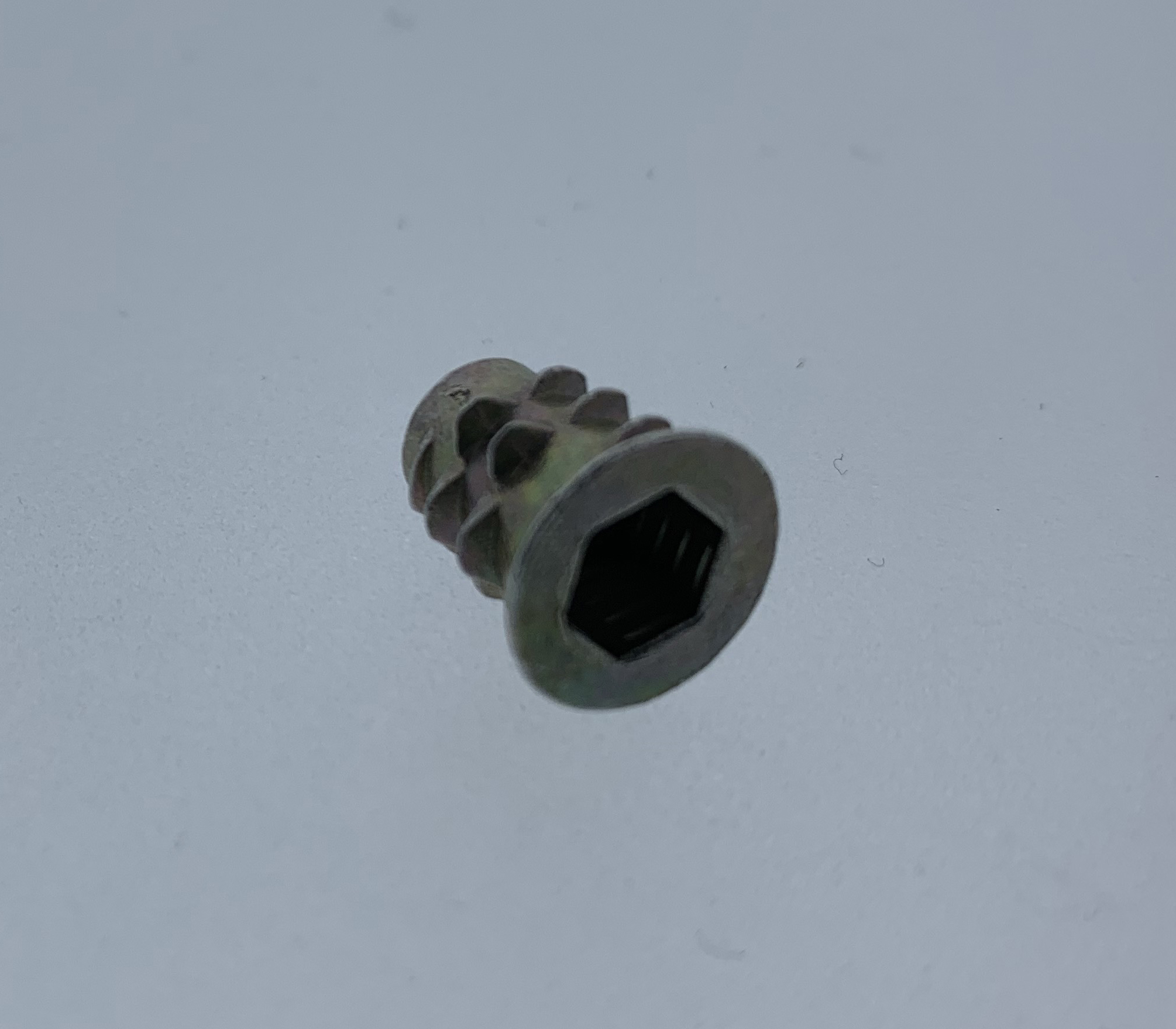

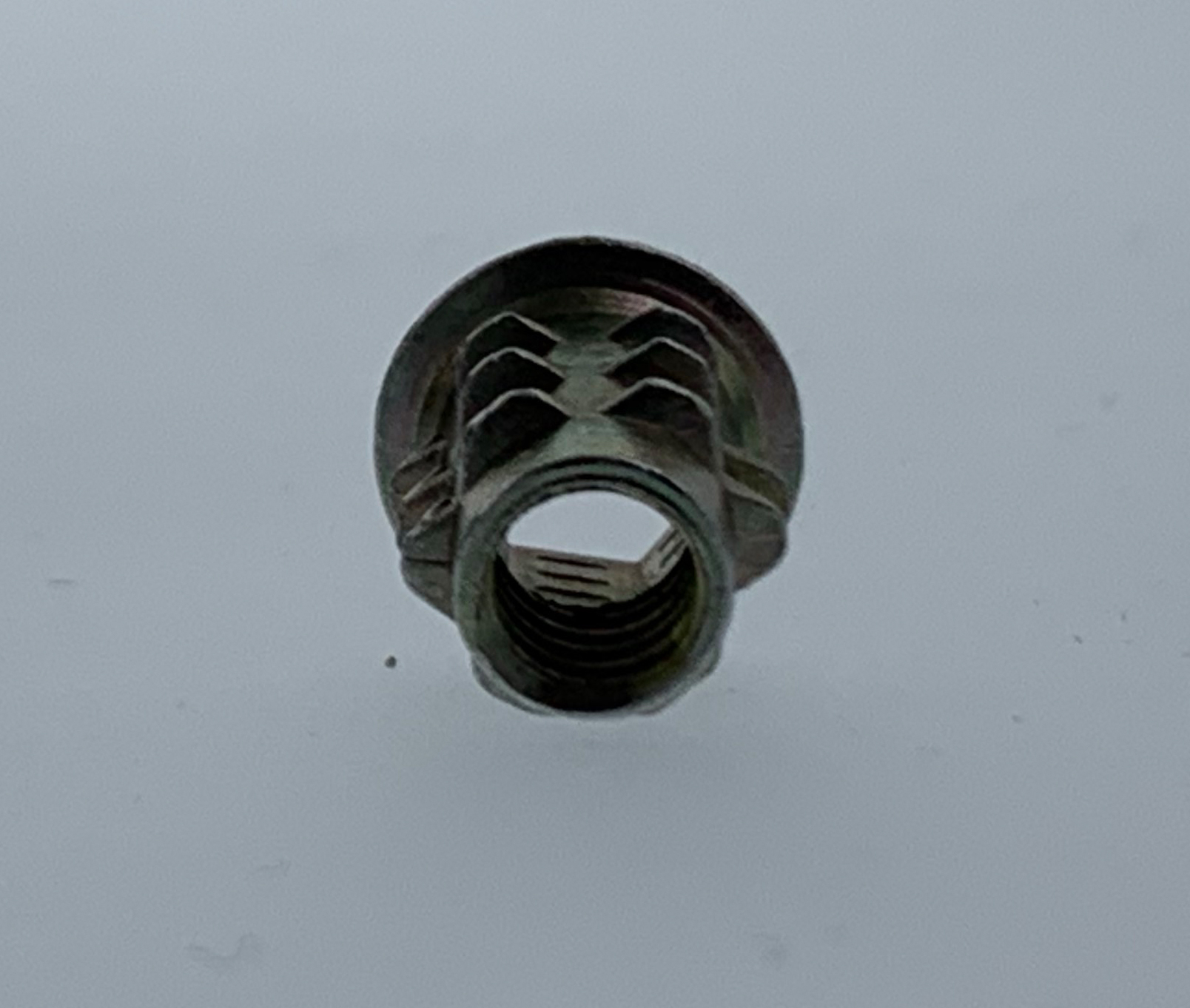

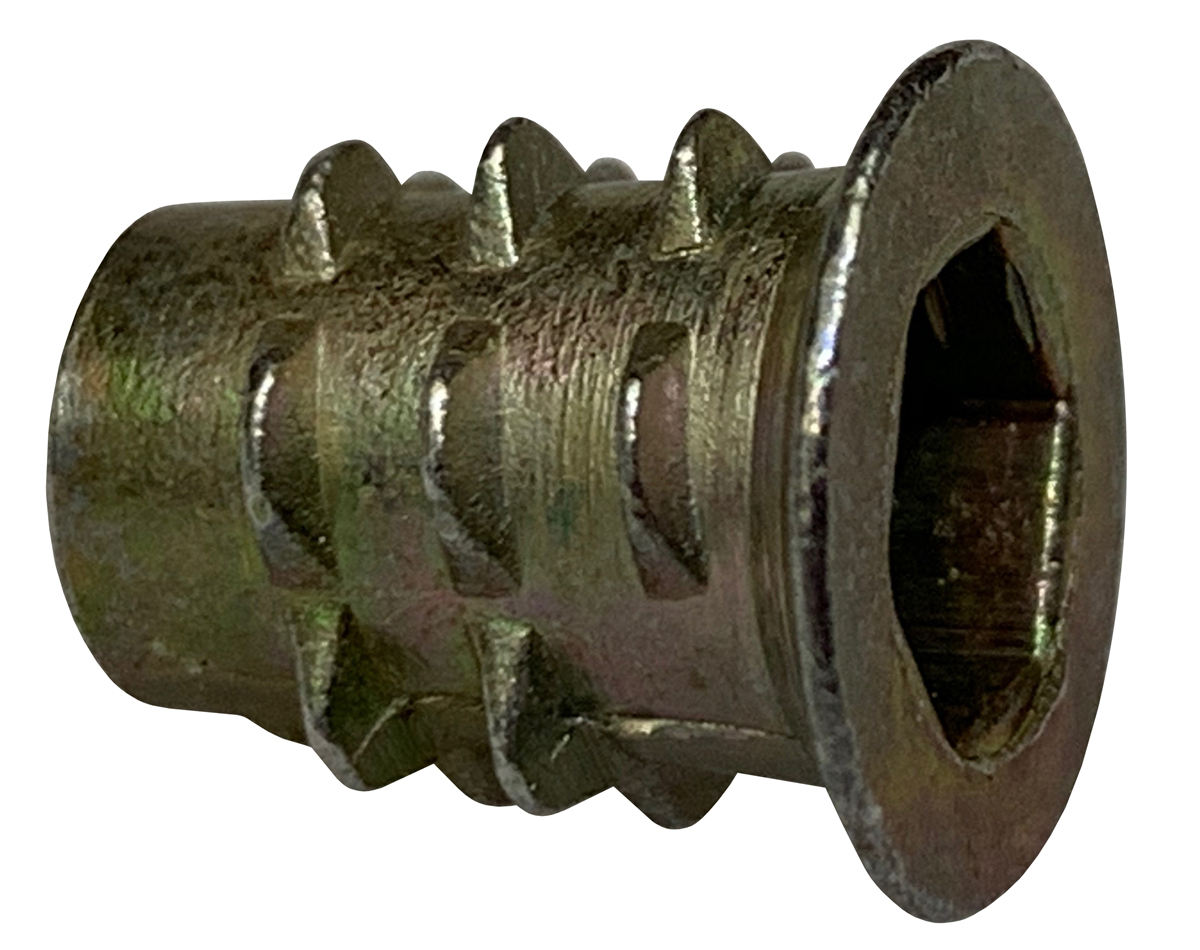

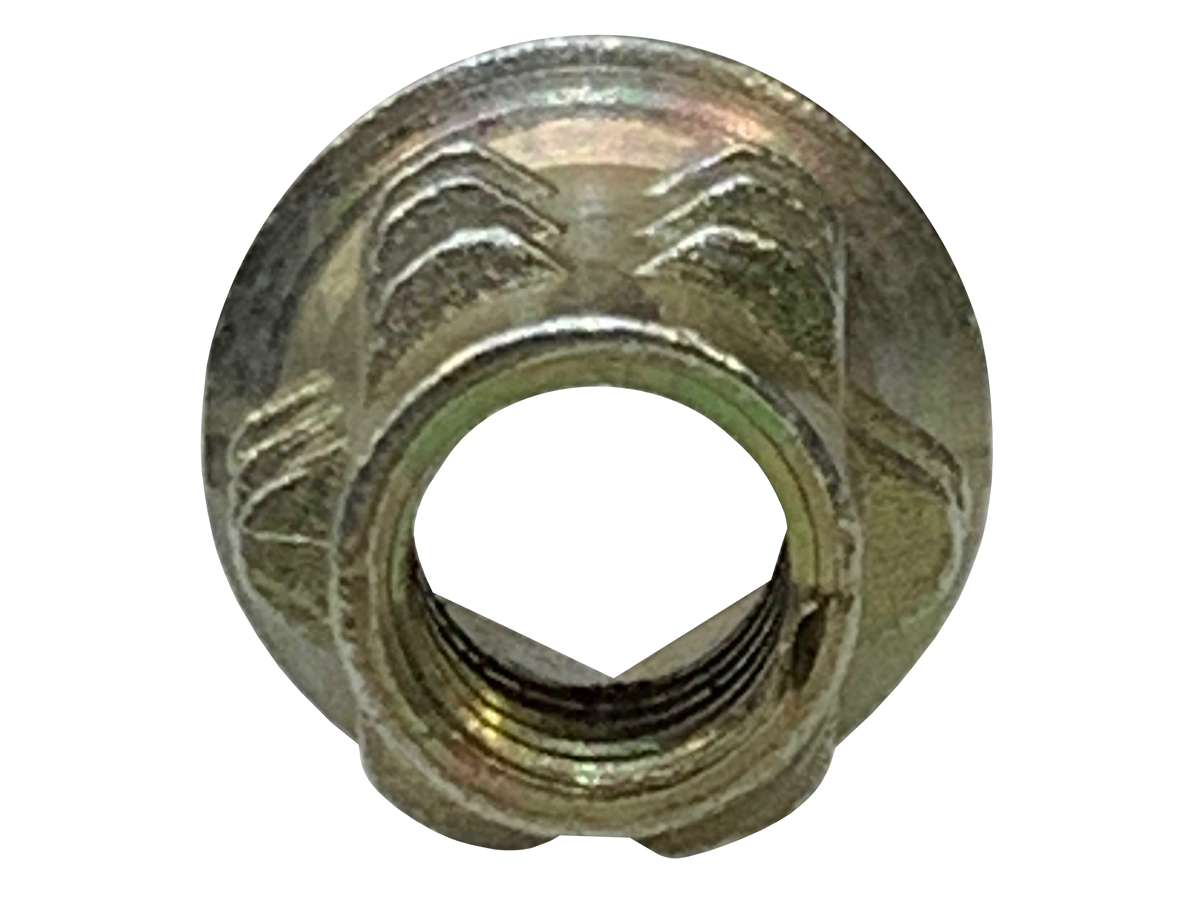

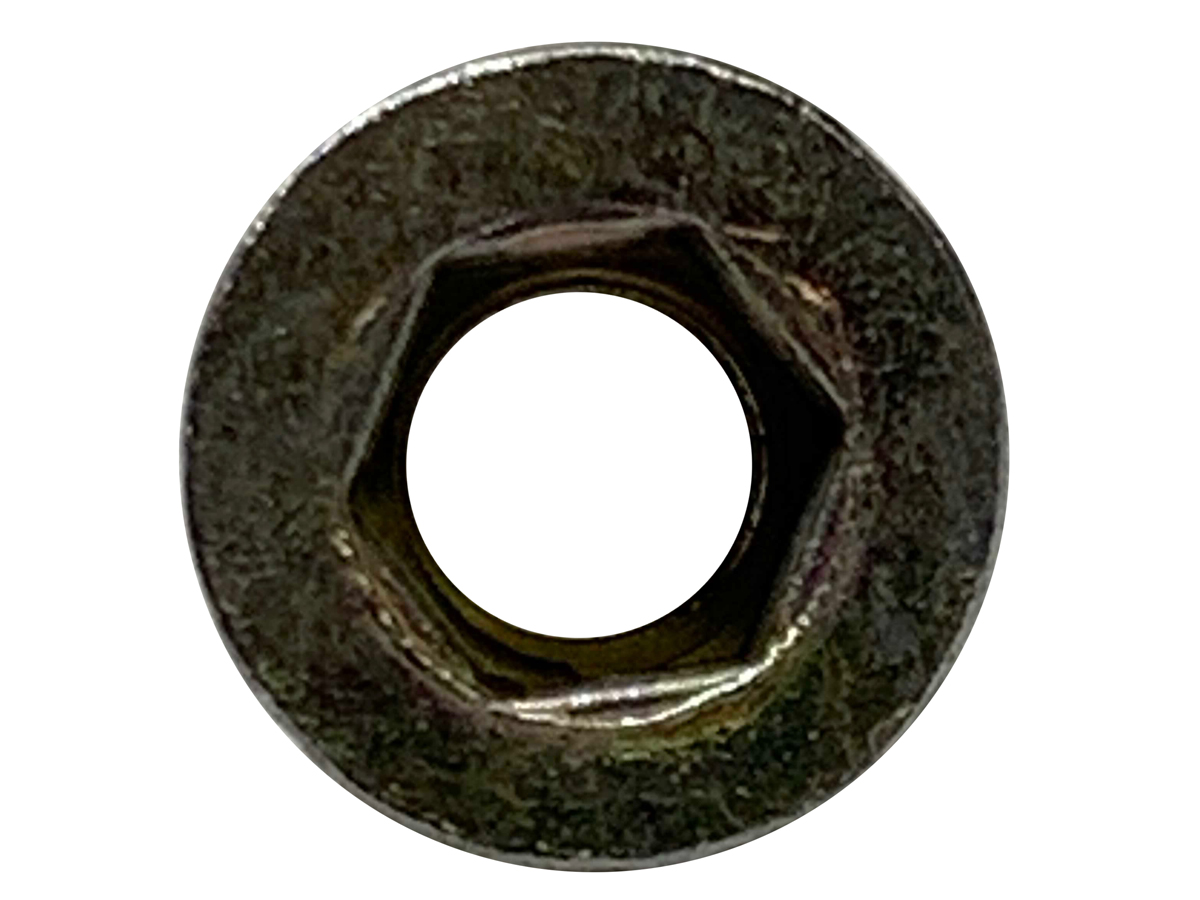

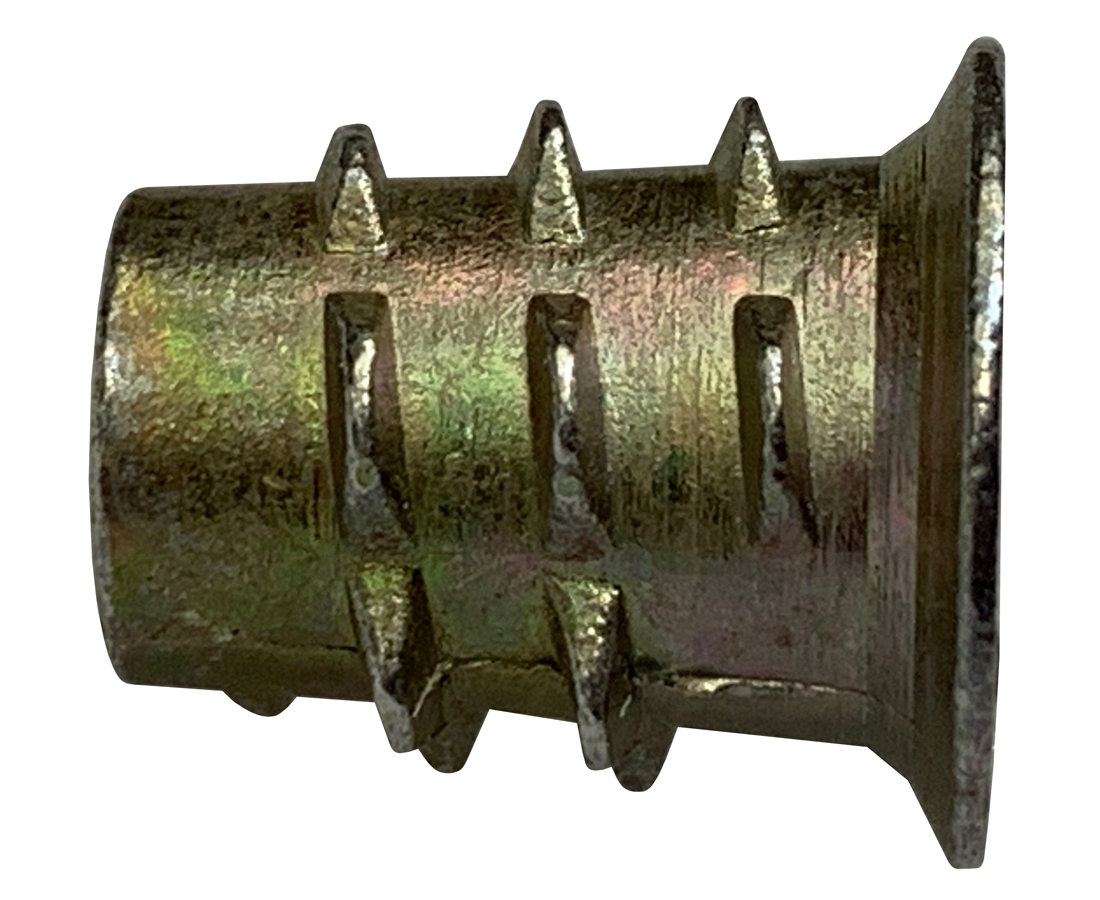

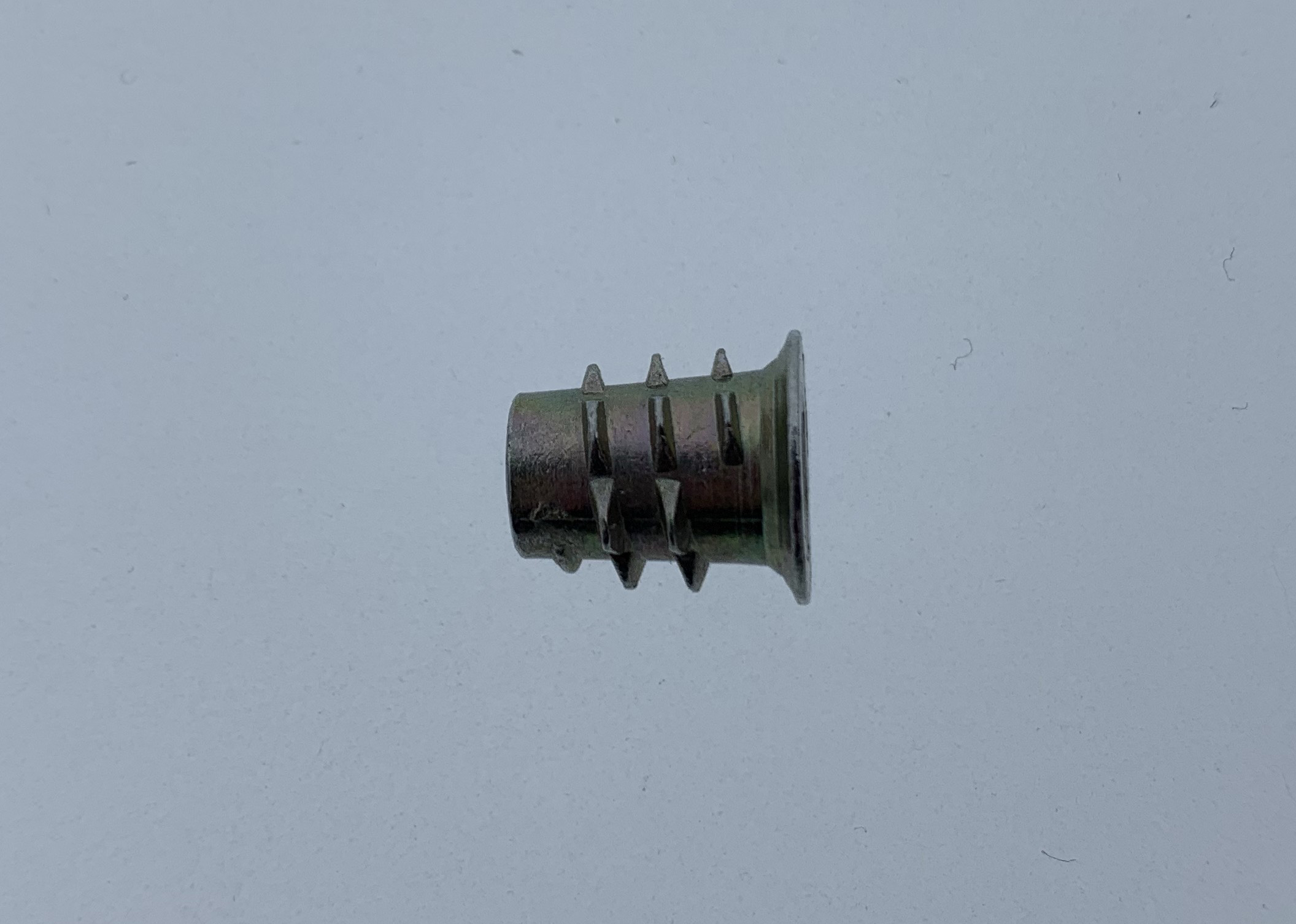

Rockwood SP1080 1/4"-20 Knife Style Thread Insert only

1/4"-20 Knife Style Thread Insert only
Use for wood doors
Use with SP1039 1/4"-20 x 1/2" Cone Head Machine Screw
The SP1080 and SP1039 together make up the Type 8 Mount Type, Surface Concealed Mount for 1-3/4" Wood Doors
If you need Surface Concealed Mount for Wood Doors make sure you order the SP1039 as well.

Cut Sheet

Mounting Types

Mounting Kit Parts
Master Table

(Click to Enlarge)

Rockwood SP1039 shown when installed in Rockwood SP1080
1/4 - 20 Cone Head Wood Screw

(Click to Enlarge)

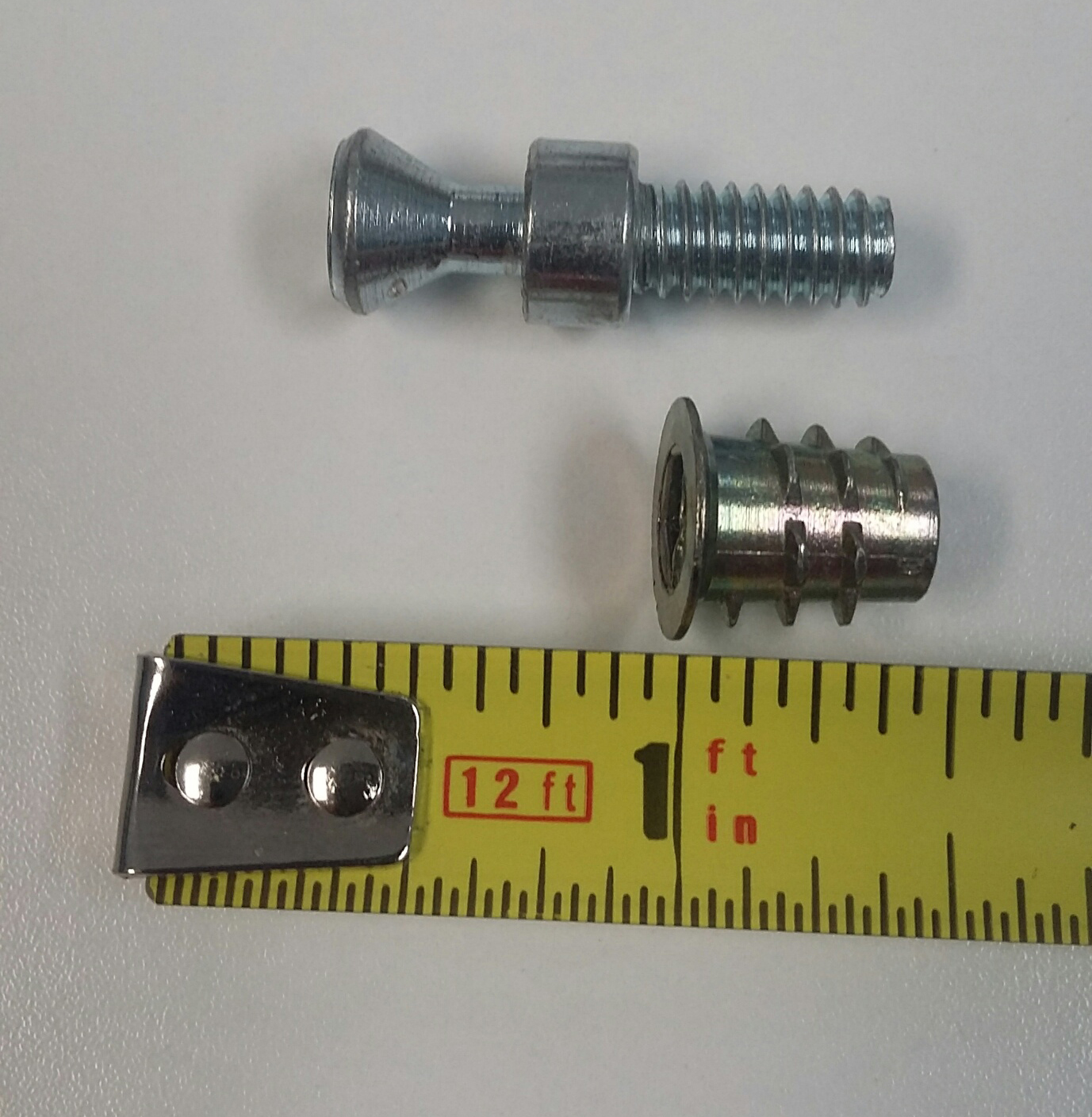

Rockwood SP1039 1/4-20 x 1/2" Cone Head Machine Screw
and Rockwood SP1080 1/4-20 Knife Style Thread Insert Only
1/4 - 20 Cone Head WS

(Click to Enlarge)

Additional Information on Rockwood SP1080

Original, outdated version of Rockwood SP1080

FASTENERS - SPARE PARTS
Concealed Mounting - For 1-3/4" Wood and Metal Doors

Images	Part #	Description	Mounting Type	Video Review
	SP1039	1⁄4"-20 x 1⁄2" Cone Head Machine Screw	6/6R	SP1039
	SP1058	5⁄16"-18 x 1⁄2" Cone Head Machine Screw	6HD	SP1058
	SP1021	1⁄4"-20 x 1 1⁄8" Cone Head Machine Screw; For Use with Jack Nut - Type 7 Mount	7	SP1021
	SP1030	1⁄4"-20 Jack Nut Insert; Mounting Anchor for Concealed Mounting on Hollow Doors	7	SP1030
	SP1080	1⁄4"-20 Cone Head / Knife Thread Insert	8	SP1080
	SP1082	5⁄16"-18 Cone Head / Knife Thread Insert	8HD	SP1082
	SP1051	1⁄4"-20 x 1⁄2" Double Cone Head Machine Screw	17/17R	SP1051
	SP1059	5⁄16"-18 x 1⁄2" Double Cone Head Machine Screw	17HD	SP1059
	6R Rivnut	1/4"-20 18-8 Stainless Steel Rivnut only	6R	6R Rivnut
	6RHD Rivnut	5/16" x 18 18-8 Stainless Steel Rivnut only	6RHD	6RHD Rivnut
For Rockwood Mounting Kit Parts Master Table CLICK HERE:

Questions and Answers

Q: What is the overall length?

A: *** UPDATE ***

The answer provided below in July of 2017 is no longer accurate and up-to-date as the manufacturer has changed the design of this product. Effective April of 2019 the Rockwood SP1080 is the knife insert only and does not include the conehead machine bolt which is the part number Rockwood SP1039. We have left that old answer intact as it does apply to the original question when you are using a combination of the SP1039 and the SP1080

*** Original out of date answer: ***

The Rockwood SP1080 1/4 - 20 Cone Head WS Now consists of two individual components as seen in the photograph here :

View Image

The Rockwood SP1080 consists of the Rockwood SP1039 as seen here :

View Image

And now this new knife style thread wood compatible bolt that will insert onto the machined end of the SP1080. According to rockwood this new knife style insert bolt does not have an individual part number.

Your original question is what is the overall length I would say that our overall length is approximately 1"
