Rockwood 6RHD Rivnut
Rockwood 6RHD Rivnut

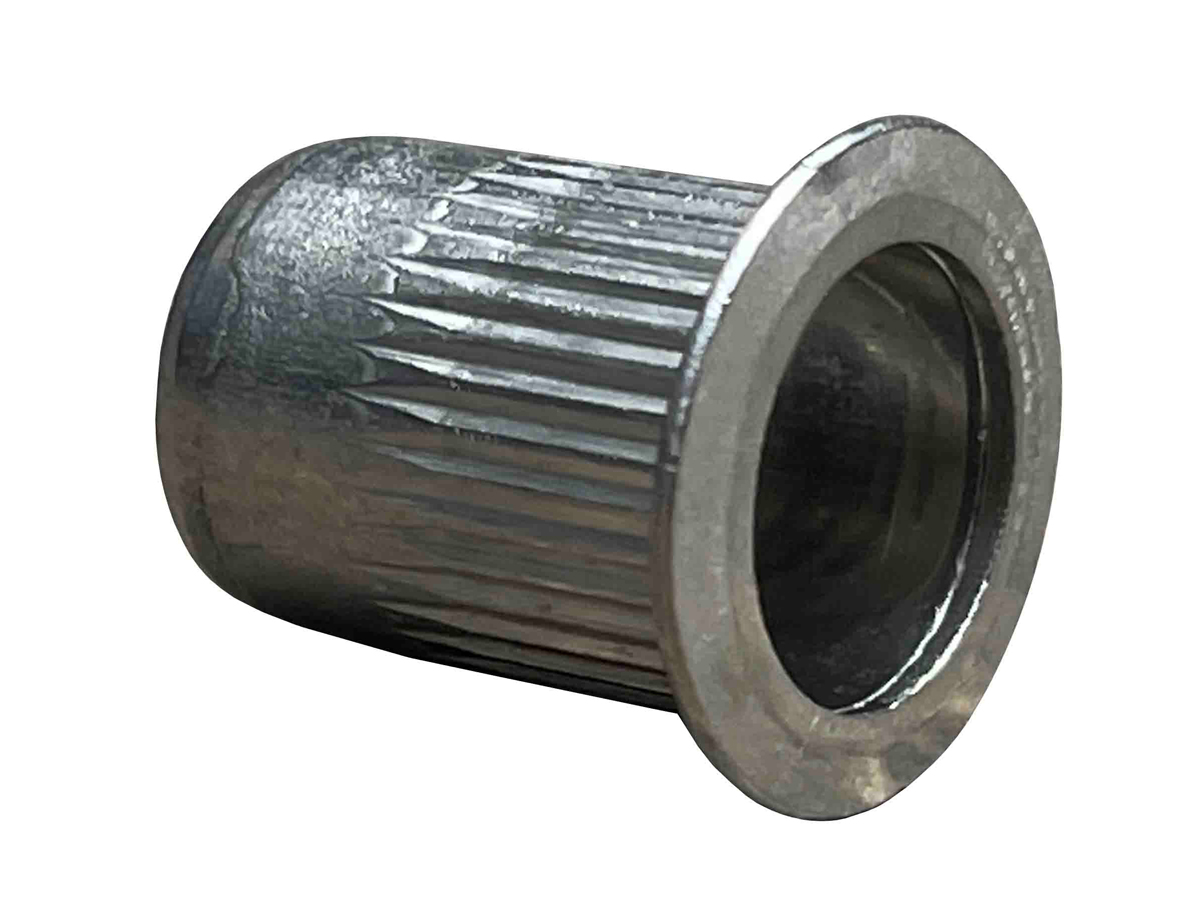

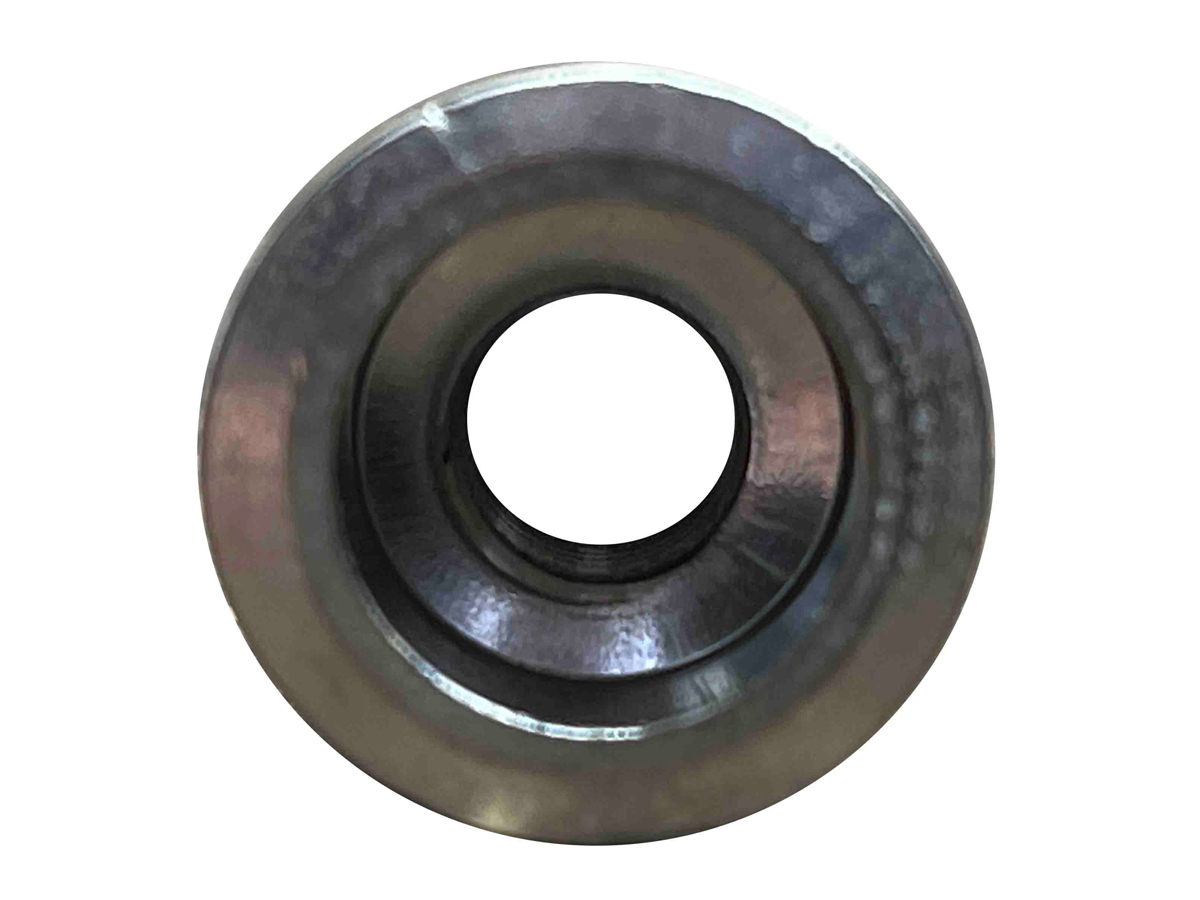

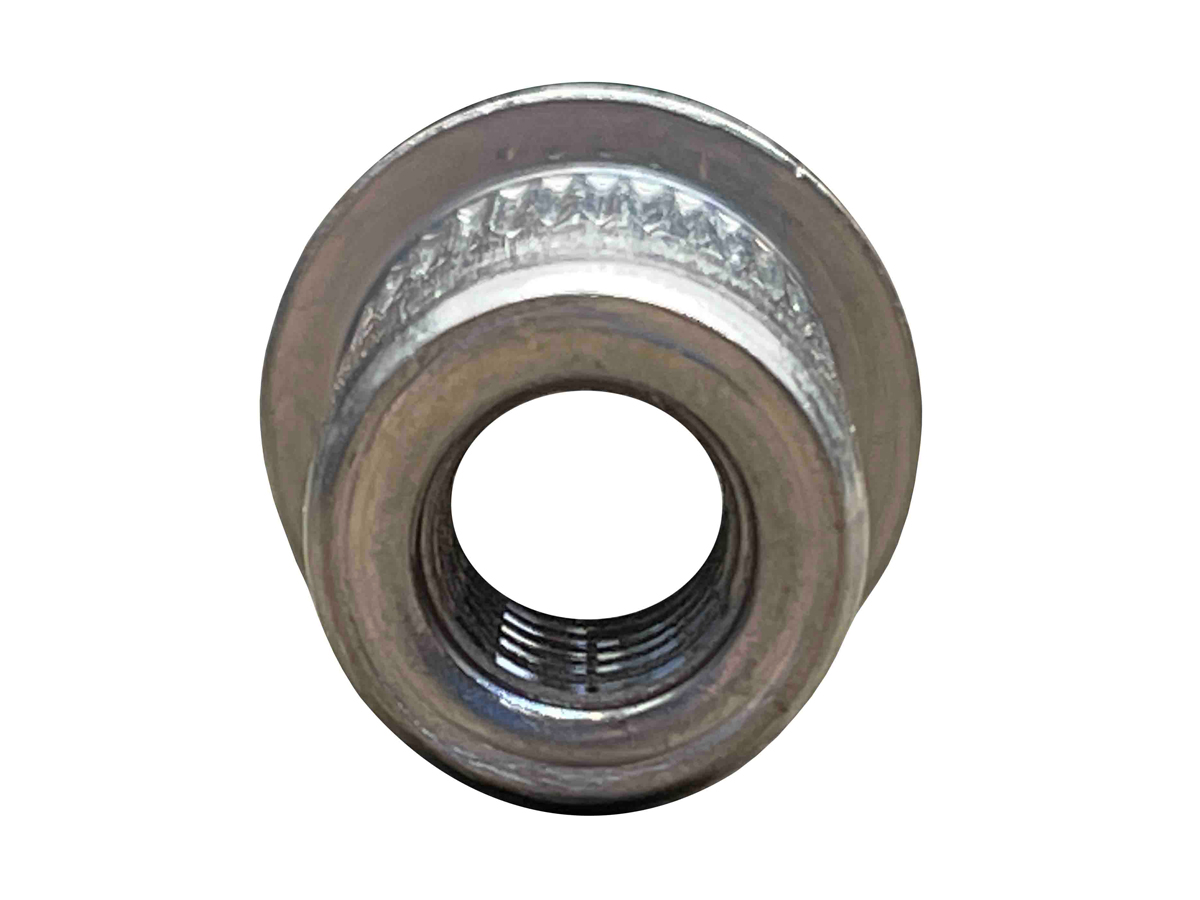

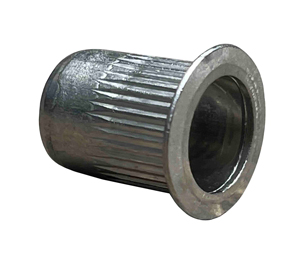

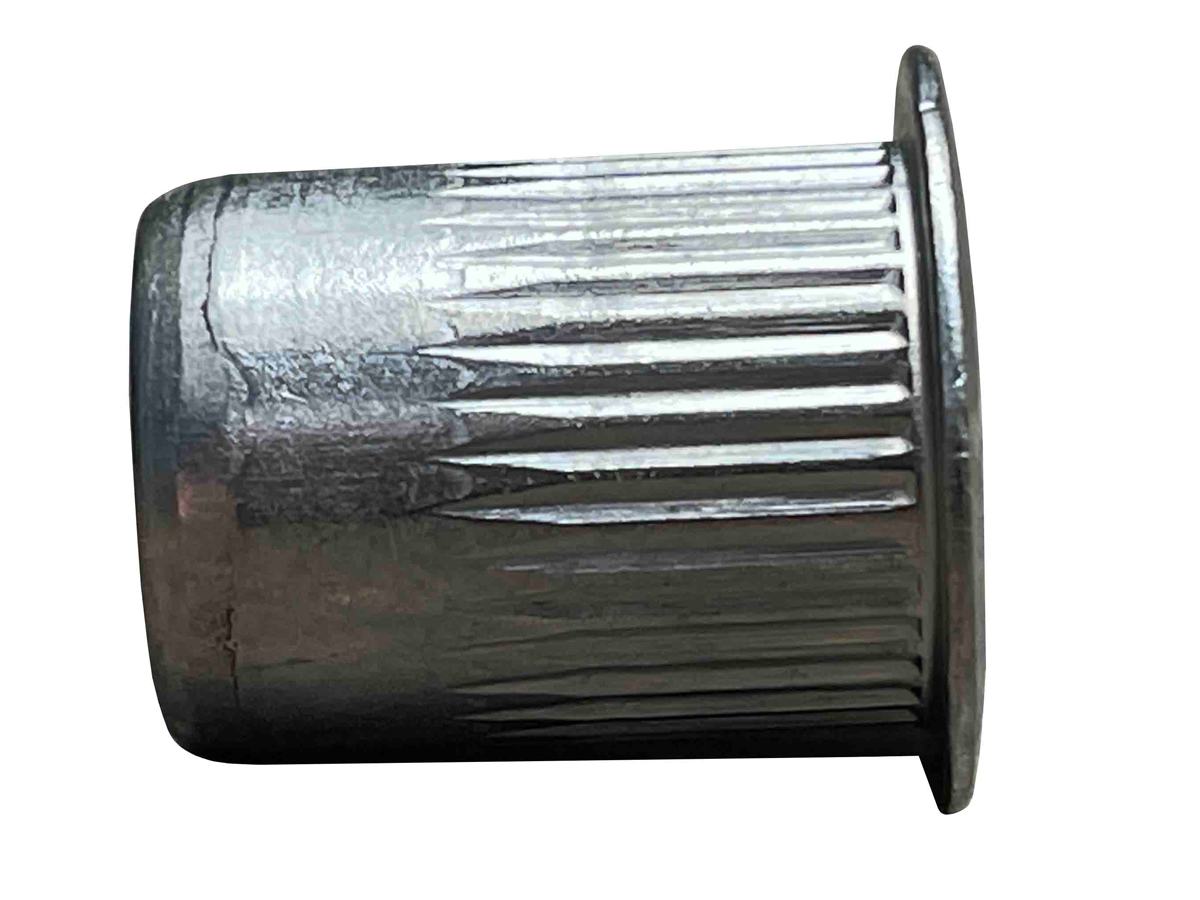

Rockwood 6RHD 5/16" x 18 18-8 Stainless Steel Rivnut only
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
8.17 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (No Minimums
):
Naples, FL Warehouse Qty: 13
For quantities beyond the "In Stock" above, the item(s)
ships in 1-2 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Rockwood 6RHD 5/16" x 18 18-8 Stainless Steel Rivnut only - Heavy-Duty
5/16" x 18 Rivnut only
Use for steel or aluminum doors
Use with Rockwood SP1058 5/16" - 18 x 1/2" Cone Head MS or the Rockwood SP1059 5/16 - 18 x 1/2" Double Cone Head MS
The 6RHD Rivnut and SP1058 or SP1059 together make up the Type 6RHD Mount Type, Surface Concealed Mount for 1-3/4" Steel / Aluminum Doors
If you need a complete mounting package for the Surface Concealed Mount for Steel / Aluminum Doors make sure you order the
Rockwood SP1058
or the
Rockwood SP1059
as well.
Alias field: 97467A727 - McMaster
The most corrosion-resistant twist-resistant rivet nuts we offer, these stand up to chemicals. A ribbed body holds the nut in place so it won't turn when tightening a screw. Also known as blind inserts, they can be installed when you have access to only one side of the material. Install in a drilled hole using a rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.
TECHNICAL DETAILS:
Material: 18-8 Stainless Steel
Thread Size: 5/16" x 18
Thread Type: UNC
Thread Spacing: Coarse
Thread Fit: Class 2B
Thread Direction: Right Hand
Drill Bit Size: 17/32"
For Material Thickness: 0.027" to 0.15"
Body
Type: Ribbed
Diameter: 0.53"
Length: 0.69"
Installed Length: 0.47"
Flange
Diameter: 0.685"
Thickness: 0.035"
Nut Type: Rivet
End Type: Open
For Use In: Metal
Technical Drawing
Mounting Options
Mounting Types 2019
Mounting Kit Parts
Master Table
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
FASTENERS - SPARE PARTS
Concealed Mounting - For 1-3/4" Wood and Metal Doors
Images
Part #
Description
Mounting Type
Video Review
SP1039
1⁄4"-20 x 1⁄2" Cone Head Machine Screw
6/6R
SP1039
SP1058
5⁄16"-18 x 1⁄2" Cone Head Machine Screw
6HD
SP1058
SP1021
1⁄4"-20 x 1 1⁄8" Cone Head Machine Screw;
For Use with Jack Nut - Type 7 Mount
7
SP1021
SP1030
1⁄4"-20 Jack Nut Insert; Mounting Anchor for
Concealed Mounting on Hollow Doors
7
SP1030
SP1080
1⁄4"-20 Cone Head / Knife Thread Insert
8
SP1080
SP1082
5⁄16"-18 Cone Head / Knife Thread Insert
8HD
SP1082
SP1051
1⁄4"-20 x 1⁄2" Double Cone Head Machine Screw
17/17R
SP1051
SP1059
5⁄16"-18 x 1⁄2" Double Cone Head Machine Screw
17HD
SP1059
6R Rivnut
1/4"-20 18-8 Stainless Steel Rivnut only
6R
6R Rivnut
6RHD Rivnut
5/16" x 18 18-8 Stainless Steel Rivnut only
6RHD
6RHD Rivnut
For Rockwood Mounting Kit Parts Master Table
CLICK HERE:
