Rockwood SP1051

Name: Rockwood SP1051 1/4 - 20 x 1/2" Double Cone Head MS
Brand: Rockwood
SKU: Rockwood SP1051
Price: 5.22 USD

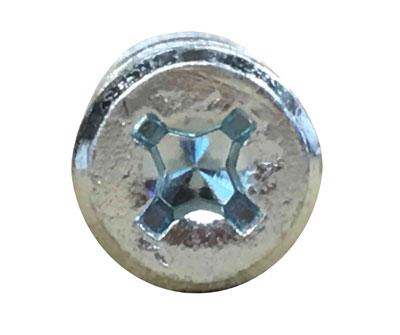

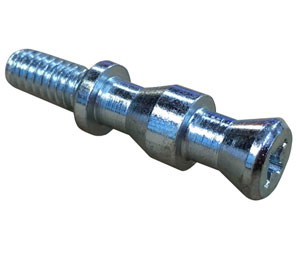

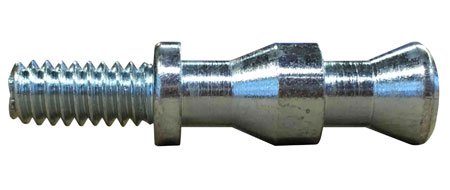

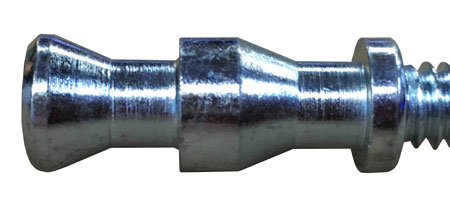

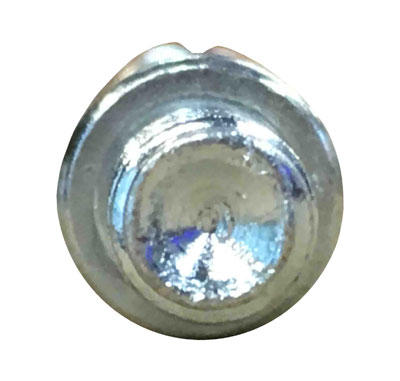

Rockwood SP1051 1/4 - 20 x 1/2" Double Cone Head MS

× This image is for a similar product but it will differ in size, color and/or other attributes.

Rockwood SP1051 1/4 - 20 x 1/2" Double Cone Head MS

Video Review Rockwood SP1051 1/4 - 20 x 1/2" Double Cone Head MS

Price: $5.22 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 10

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Rockwood SP1051 1/4 - 20 x 1/2" Double Cone Head MS

1/4 - 20 x 1/2" Double Cone Head Machine Screw
Use for Type 17 / 17R Mount Type

Cut Sheet

Mounting Types

Mounting Kit Parts
Master Table

FASTENERS - SPARE PARTS
Concealed Mounting - For 1-3/4" Wood and Metal Doors

Images	Part #	Description	Mounting Type	Video Review
	SP1039	1⁄4"-20 x 1⁄2" Cone Head Machine Screw	6/6R	SP1039
	SP1058	5⁄16"-18 x 1⁄2" Cone Head Machine Screw	6HD	SP1058
	SP1021	1⁄4"-20 x 1 1⁄8" Cone Head Machine Screw; For Use with Jack Nut - Type 7 Mount	7	SP1021
	SP1030	1⁄4"-20 Jack Nut Insert; Mounting Anchor for Concealed Mounting on Hollow Doors	7	SP1030
	SP1080	1⁄4"-20 Cone Head / Knife Thread Insert	8	SP1080
	SP1082	5⁄16"-18 Cone Head / Knife Thread Insert	8HD	SP1082
	SP1051	1⁄4"-20 x 1⁄2" Double Cone Head Machine Screw	17/17R	SP1051
	SP1059	5⁄16"-18 x 1⁄2" Double Cone Head Machine Screw	17HD	SP1059
	6R Rivnut	1/4"-20 18-8 Stainless Steel Rivnut only	6R	6R Rivnut
	6RHD Rivnut	5/16" x 18 18-8 Stainless Steel Rivnut only	6RHD	6RHD Rivnut
For Rockwood Mounting Kit Parts Master Table CLICK HERE:

Video Review of Rockwood SP1051 1/4 - 20 x 1/2" Double Cone Head MS

Video Detail Page

Questions and Answers

Q: What is the diameter of the part that enters the handle at its largest diameter?

A: The Rockwood SP1051 is a typical 1/4 - 20 thread which has a "major diameter" of .250"

Q: I'm trying to repair a restaurant door where both of the Rockwood double cone heads pulled out of the hollow aluminium frame. I assume the frame is reinforced. Visually it looks to be 1/8 to 1/4 thick. Not much for threads in my opinion. Do you have a repair kit or recommend using a heli coil to fix this scenario? I'm pretty sure I'll need two new cone head studs since someone tried using gorilla epoxy to fix this before me. It's a single type 17 (assuming) pull. No pull on opposite side. Any advice will be appreciated.

A: Aluminum doors are not reinforced say as a wood door or hollow metal door. Through bolt and skip the rivnut idea is my thought. Purchase the following components would allow to to, all but permanently, solve the problem.

The following items are what I would suggest you order - and order these per mounting post.

Order the Rockwood SP1003-630 1/4 - 20 x 2 1/4" 1" Diameter Decorative Thru Bolt - Satin Stainless Steel as seen here:

Click Here

Order the Rockwood SP1079 1/4 - 20 Double Cone Head Union as seen here:

Click Here

Order two each of the Rockwood SP1026 1/4 - 20 x 5/16" Set Screws (Standard) as seen here:

Click Here

Q: Perfect! This is exactly what I will order from your site. Thank you so much for your help! Chris

A: Thank you and we will watch for the order and ship from stock immediately.
