Rixson 8-336

Name: Rixson 8-336 Overhead Holder and Stop
Brand: Rixson
SKU: Rixson 8-336
Price: 378.68 USD

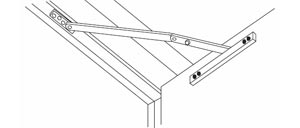

Rixson 8-336 Overhead Holder and Stop

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $378.68 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) Made to order. Call for current lead time.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Overhead Holders and Stops

8-336 Surface Heavy Duty, Stop Function, Butt Offset Pivot

Installation Instruction 1

Installation Instruction 2

Template 1

Template 2

Product Brochure

Introduction

Overhead stops are used to protect door assemblies. They cut down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vandalism. By limiting the door travel, they can add years to the life of the door, frame, and hanging means. Overhead holders and friction stays add convenience for the end user who already appreciates the need for the overhead stop.

Product Description & Features

•Single acting doors
• Non-handed
• Double lever design
• Recommended for high-traffic, heavy abuse installations
• Heavy shock absorber spring provides 6° compression before deadstop
• Fingertip hold open or stop only
• Complete screw packet allows for wood or metal door and frame
• For security areas Torx® screws, optional
• Standard architectural finishes
• 110° maximum opening
• 1-3/4" minimum door thickness
• To mount on pull side of door, use angle bracket 5458 LH or 5459 RH

Door Opening Chart (in inches)

Model Number

Butts Offset Pivots	Center Hung Pivots	Hold Open and Stop	Stop
*24" - 27"	26" - 29-1/2"	8-126	8-136
27-1/16" - 32-1/2"	29-9/16" - 35"	8-226	8-236
32-9/16" -38-3/4"	35-1/16/" - 41-1/2"	8-326	8-336
38-13/16" - 42-1/2"	41-9/16" - 45"	8-426	8-436
42-9/16" - 48"	45-1/16" - 48"	8-526	8-536

* Butt hung only on this size door

ANSI No.
H.O.	STOP
CO4531	CO4541

Typical Installations Surface Mounting

		Method No. 1 - Standard Installation (Push side of door) Nos. 8HD, 9, 10, 55 Series The jamb bracket mounts on the stop strip with wood or machine screws. The channel or door bracket mounts with sex bolts
		Method No. 2 - Rabbeted Door Installation (Push side of door) Nos. 8HD, 9, 10, 55 Series A special angle jamb bracket adapter mounts on the header with wood, machine screws or sex bolts. The jamb bracket attaches to the adapter with machine screws. The channel fastens to the door with sex bolts. (Same bracket as used with Method 3 and 5. See catalog for bracket number.)
		Method No. 3 - Flush Door Installation (Push side of door) Nos. 8HD, 9, 10, 55 Series This method of installation is identical to Method No. 2 for Rabbeted Doors. (Same bracket as used with Method 5. See catalog for bracket number.)
		Method No. 4 - Reverse Installation (Pull side of door) Nos. 9, 10 and 55 Series The jamb bracket adapter is secured to the header with wood or machine screws. The jamb bracket fastens to the adapter with machine screws and the channel mounts on the door with sex bolts. (Same bracket as used with Method 2 and 3. See catalog for bracket number.)
