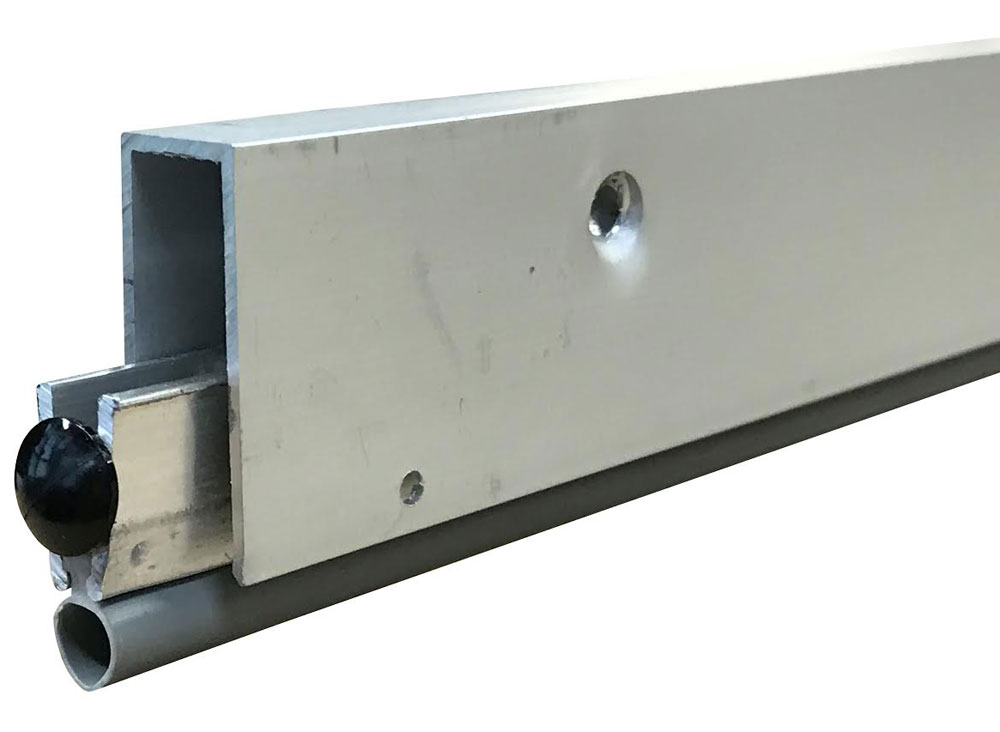

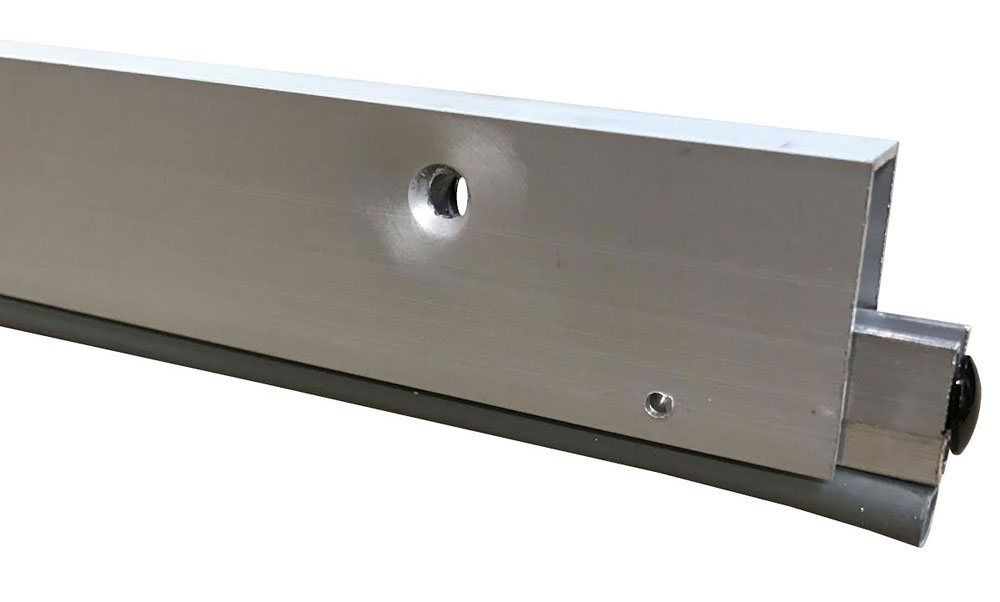

Pemko SA2 32" Mill Finish Aluminum Automatic Door Bottom

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Pemko SA2 32" Mill Finish Aluminum Automatic Door Bottom
Main ImageVideo Review Pemko SA Surface Mounted Automatic Door Bottom
More from Pemko
Price: $71.21 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $165.00 minimum purchase of Pemko products or 17 business days for smaller orders.

Pemko has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:

pemko logo 32" Mill Finish Aluminum Automatic Door Bottom

  • Length: 32"
  • Mill Finish Aluminum with Gray Vinyl insert

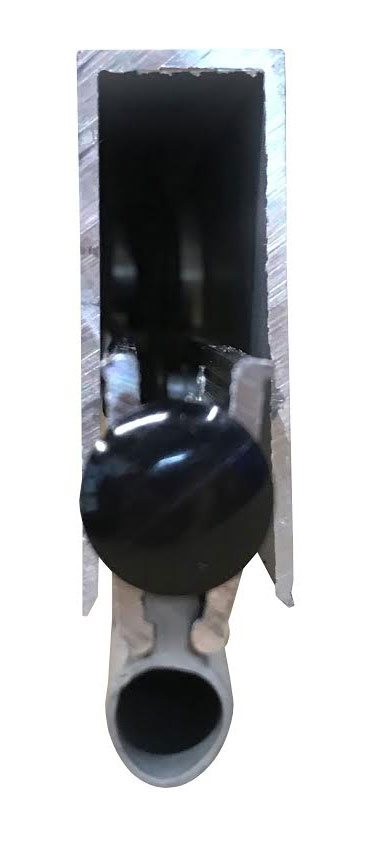

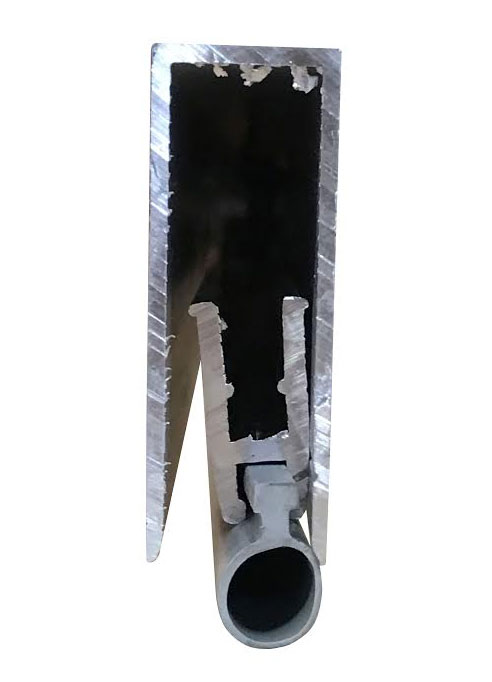

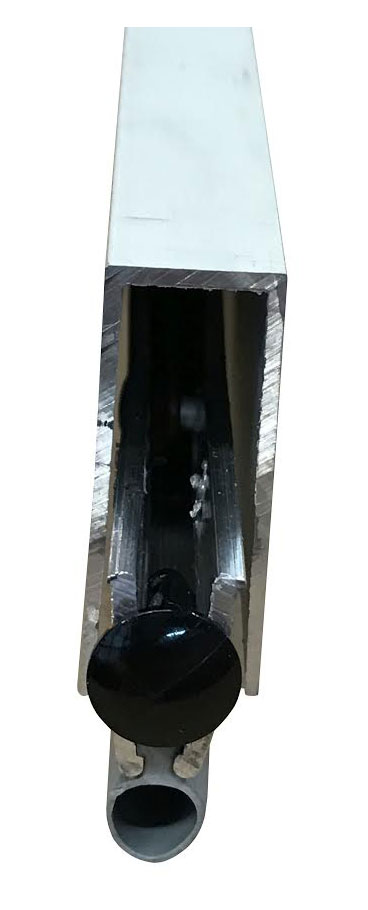

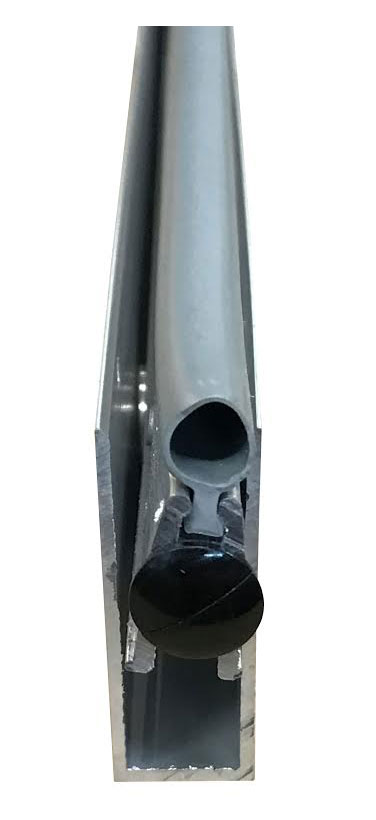

  • Consists of an aluminum case which surrounds a movable drop bar seal.
  • The drop bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop bar seal down against the floor or threshold.
  • When the plunger contacts the jamb, the drop bar seal actuates from the hinge side first allowing multiple compression points.
  • The plunger requires low FeatherTouch closing force to actuate the drop bar seal.

Dimensions
sa1 dimentions
Questions and Answers
Q: do these have end plates
A: The Pemko SA series do not feature end plates.

A good option for a model that features end plates would be the Pemko 4131CRL 32" Automatic Door Bottom with Rubber insert - Clear Anodized Aluminum - Surface Mount as seen here:

Click Here

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -

please consider following us on Twitter

Click Here

or liking our page on Facebook

Click Here

Q: Can the Pemko SA2 32" be cut to 31"
A: Yes it can be - when ordering the Pemko SA2 32" Mill Finish Aluminum Automatic Door Bottom simply indicate in the comment field the net length that you would like the material to be cut back to and we will request the factory manufacturer it to that length.
Q: what kind of blade can be used to cut it? I already received the product or I would have had you cut for me
A: Since the material is made of aluminum you'd be able to use a carbide tipped blade in your circular saw. Alternatively a hacksaw would work if that was the tool that you had access to.
