Pemko 2173AV 36

copy to clipboard

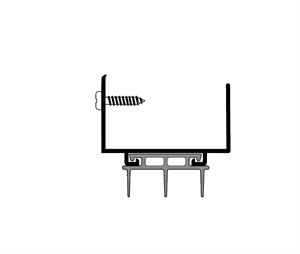

Pemko 2173AV 36" Mill Finish Aluminum Door Shoe - Vinyl insert

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Pemko 2173AV 36" Mill Finish Aluminum Door Shoe - Vinyl insert
Main ImageVideo Review Pemko 2173AV Mill Finish Aluminum Door Shoe - Vinyl insert
More from Pemko
Price: $49.92 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 3
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

Pemko has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:

pemko logo Pemko 2173AV 36" Mill Finish Aluminum Door Shoe - Vinyl insert

  • Door Bottom Shoe
  • Length: 36".
  • Mill Finish Aluminum with Vinyl insert.
  • Stainless steel fasteners are provided.
  • Sealing the gap under the door, door shoes are often used to provide protection for the bottom of the door.
  • This comes comes featuring a notched seal. The notched seal will permit the flow of air to supply a mechanical unit such as an HVAC unit in a hotel room. Unnotched seals are also available for this item at the link as seen here: Pemko 2173AV 36UN
  • Fire Rated
  • Ait Infiltration Tested
  • Sound Seal Tested

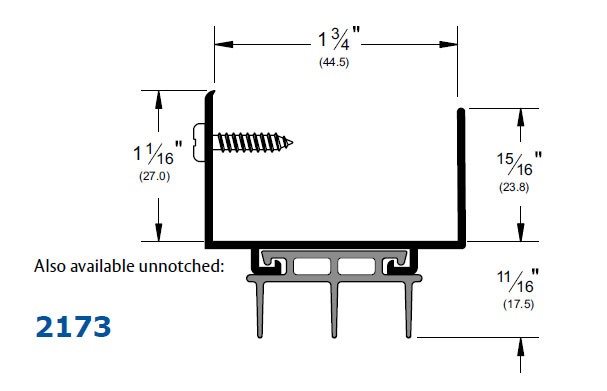

Dimensions
Questions and Answers
Q: Do these come in 48"
A: Indeed yes the Pemko 2173AV Mill Finish Aluminum Door Shoe - Vinyl insert Is available in 48 inch planks as well. In fact at the link below you will find the 48 inch version available as both a notched and an unnotched version.

The unnotched verison is the typical unit that you were going to use in commercial or residential applications.

The notched version is specifically used in hotel or motel applications where there is an air conditioning / heating unit within the room. The next version allows there to be a source of fresh air a fresh air source to feed or to supply the air conditioning and heating unit with fresh air. The underside of the door bottom is going to have notches in a staggered pattern to allow that fresh air to enter the room.

Please see the link below to review both attached and unnotached versions in 48 inch lengths:

Click Here

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful - please consider following us on Twitter

Click Here

or liking our page on Facebook

Click Here

(Required, used to email you once question is answered.)
