Home > Weatherstripping > Automatic Door Bottoms > Clear > Neoprene Insert > Surface Mount > NGP > National Guard Products 310NA 36"

National Guard Products 310NA 36"

copy to clipboard

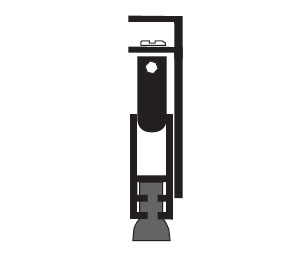

National Guard Products 310NA 36" Clear Anodized Aluminum Automatic Door Bottom with Neoprene insert - Surface Mount

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
National Guard Products 310NA 36" Clear Anodized Aluminum Automatic Door Bottom with Neoprene insert - Surface Mount
More from National Guard Products
Price: $85.47 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
2 - LH - Left Hand
2 - RH - Right Hand
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
National Guard Products 310NA 36" Clear Anodized Aluminum Automatic Door Bottom with Neoprene insert - Surface Mount
  • Automatic Door Bottom with Neoprene Insert
  • Length: 36"
  • Max Drop: 1"
  • Material: Aluminum
  • Finish: Clear Anodized
  • Insert : Black Neoprene
  • Surface Mount
  • Smoke and Draft Control-UL Classified Category H
  • UL 10B Classified on wood doors up to 90 min.
  • UL 10B Classified on metal doors up to 3 hr.
  • UL 10C Classified on wood doors up to 90 min.
  • UL 10C Classified on metal doors up to 3 hr.
  • Air Infiltration Tested
  • ANSI/BHMA Certified
  • Use with a threshold for maximum sealing capability
  • Nylon brush recommended for carpet applications where no threshold is provided
  • Specify the exact net length required to avoid field sizing. Automatic Door Bottoms 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
  • End caps available - please specify. For 220, 221, 229, 310 end caps provide door handing
  • Lead insert available for radiation shield. For further information please contact sales.

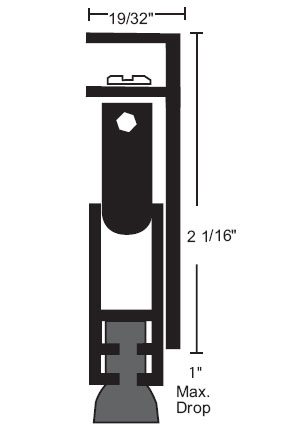

Dimensions
Questions and Answers
Q: Do they have fire stamp
A: According to the manufacturer:

Good morning, Rich, I’m afraid this won’t be stamped, though it is fire-rated. Customers are advised to hold on to the installation instructions, which shows the fire-rating for this product, should proof be needed for an inspection.
