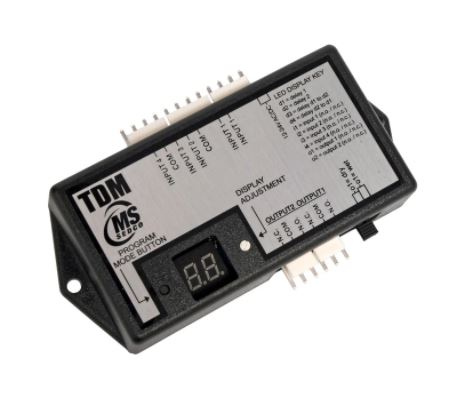

MS Sedco TDM

Both outputs on the TDM are programmable for “on time" duration as well as the delay time between the two outputs from 0 to 99 seconds

• Power: 12 to 24 V AC or DC
• Power Consumption: 2W Maximum
• Output Contact: Form C, Rated At 3 Amps
• Temperature: -22°F to 158°F (-30°C to 70°C)
• Color: Flat Black
• Enclosure: ABS Plastic
• Easily set-up on site or in advance using the LED Display
• Settings are stored in memory so TDM remembers settings (even after power failure)
• Weight: 0.25 lb.

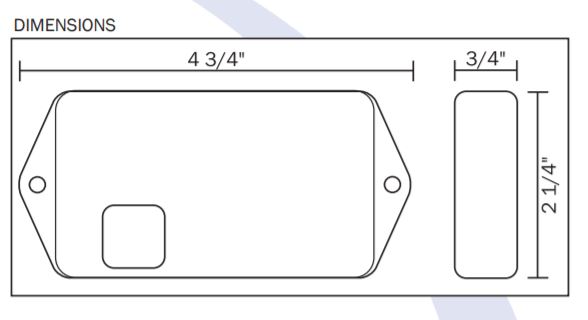

• Physical Size: 4 3/4"L x 2 1/4"W x 3/4"H
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
