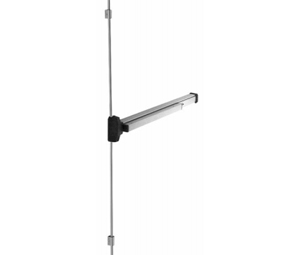

Monarch 19V Vertical Rod Exit Device
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
414.73 USD
In Stock Ready for Shipment
1. Select Finish
10B Oil Rubbed Bronze
28 Satin Aluminum
32D Satin Stainless Steel (Add $330.82)
2. Select Length
Short (36")
Long (48")_____________ (Add $18.70)
3. Select Handing
LH Left Hand
RH Right Hand
LHR Left Hand Reverse
RHR Right Hand Reverse___________-
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $100.00 worth of product from Monarch to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Vertical Rod Exit Device
Functions: All functions built into “BA” device.

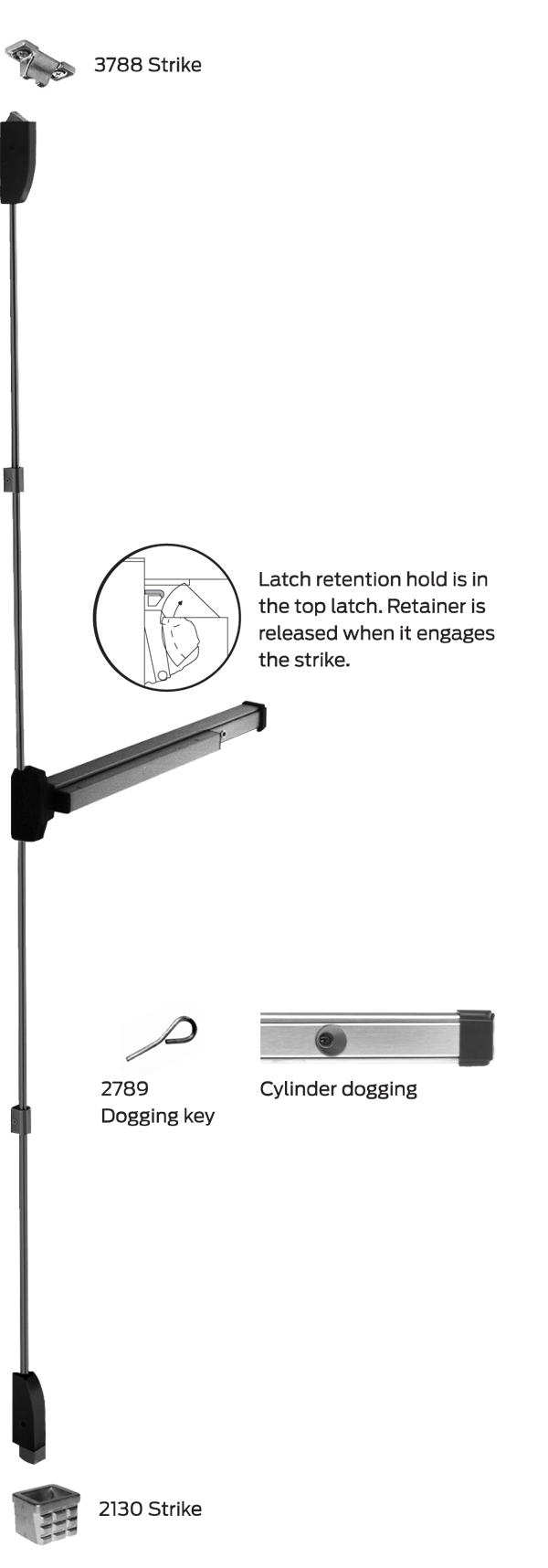

Strikes: 4163 strike is surface applied standard, 2130 strike is mortised into floor.
Latchbolt: Top stainless steel 3⁄4" throw. Bottom latch bolt 1⁄2" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn cam dogging standard. No threaded parts to wear out.
Doors: 1-3⁄4" thick, wood or metal.
Projection: 2-1⁄2" max.
Electric Function: Can be interfaced with building security systems. Latch retraction, lock/unlock, security monitoring, electric dogging, exit indicator, latch retract indicator and exit alarm available.
Fasteners: All mounting screws are concealed. Furnished with sheet metal screws.
Sex Bolts: 3–#4122 (1⁄4–20) SNB standard.
ANSI: Certified ANSI A156.3 2001 Grade 1 standards.
Vertical Rods: Furnished to length based on 405⁄16" horizontal CL from finished floor and a 7'0" door standard.
Template
Cut Sheet
(Click to Enlarge)
Handing Chart

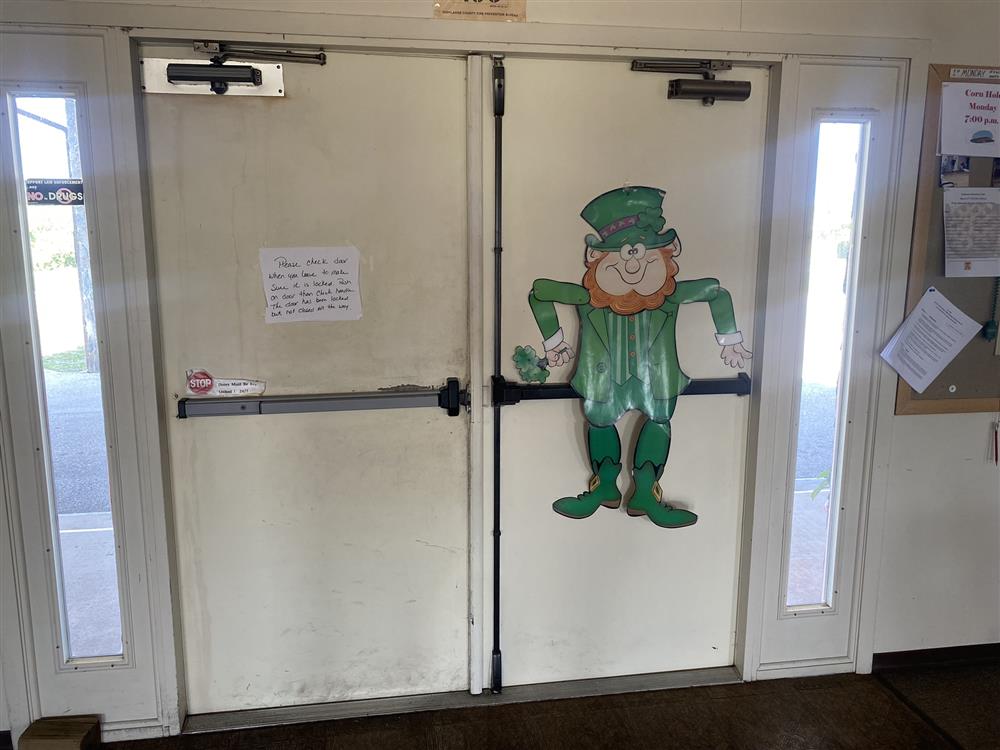

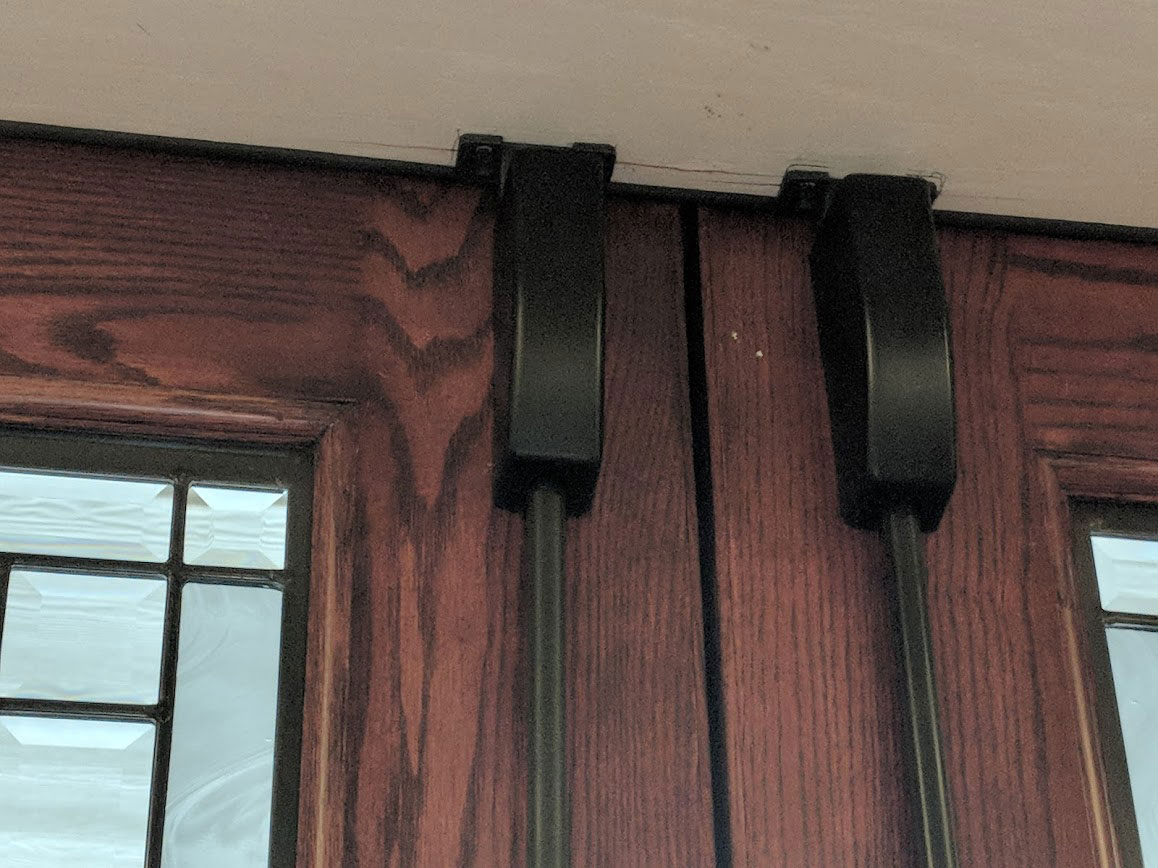

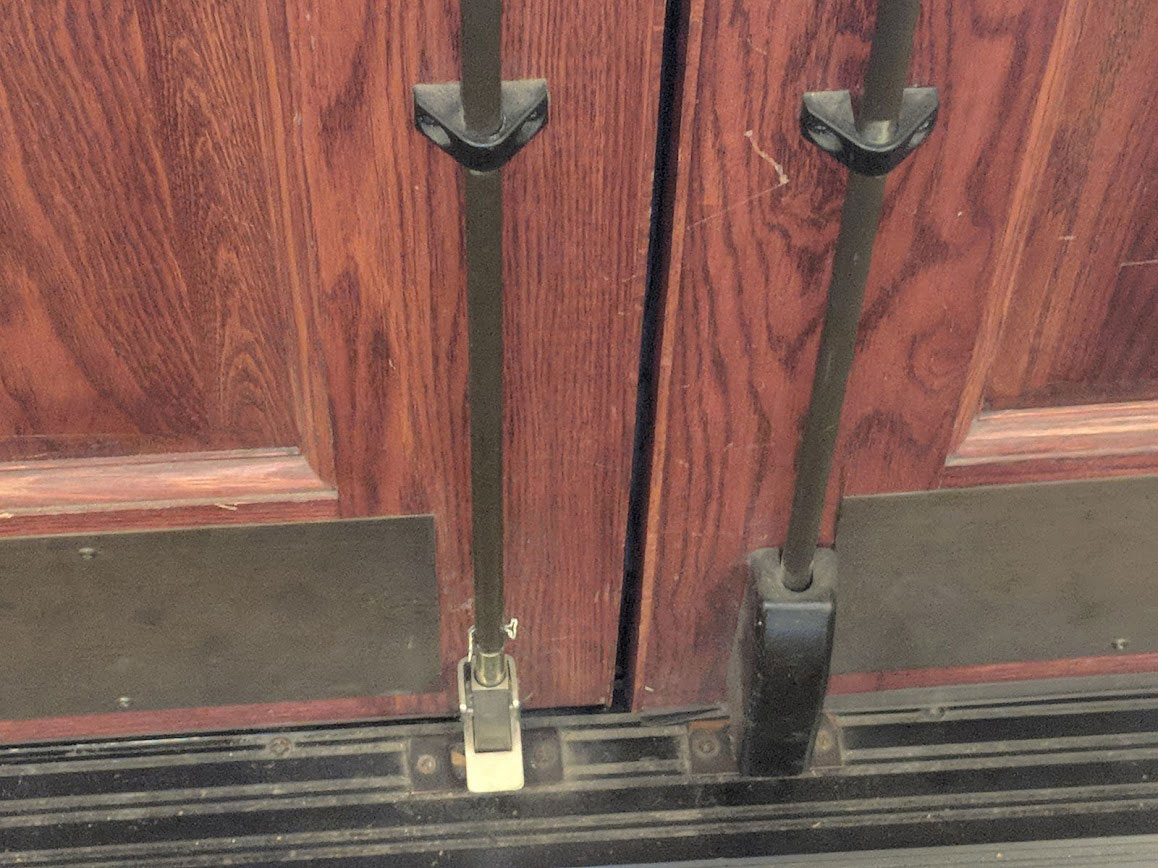

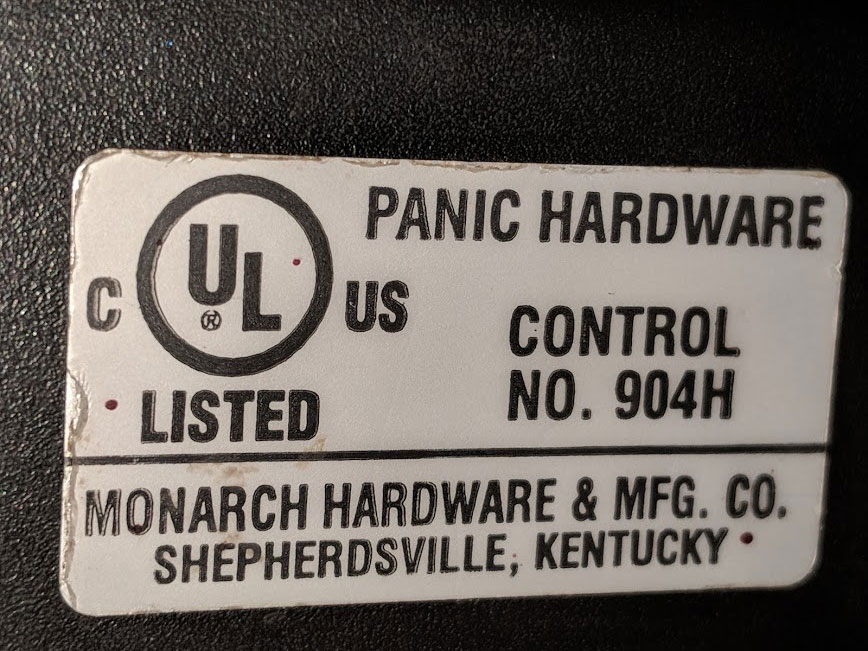

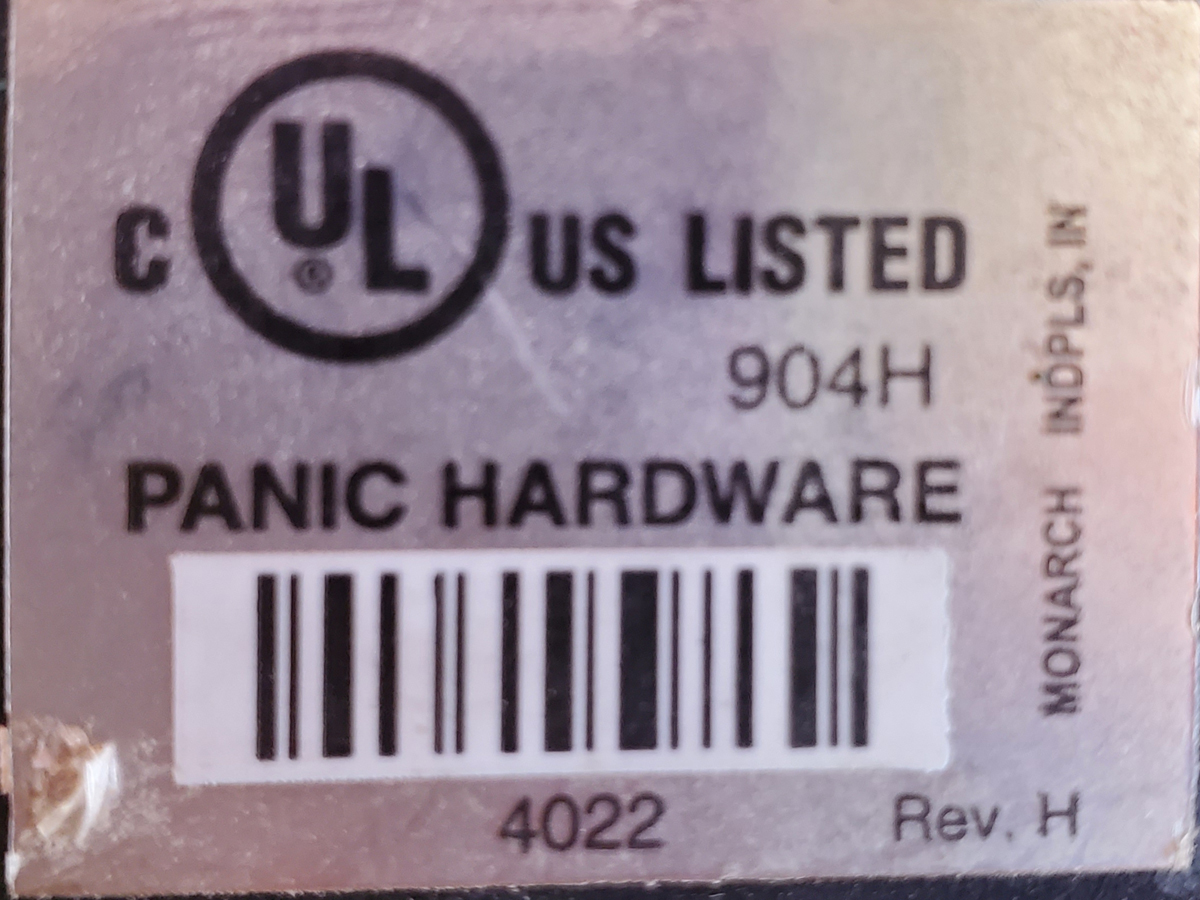

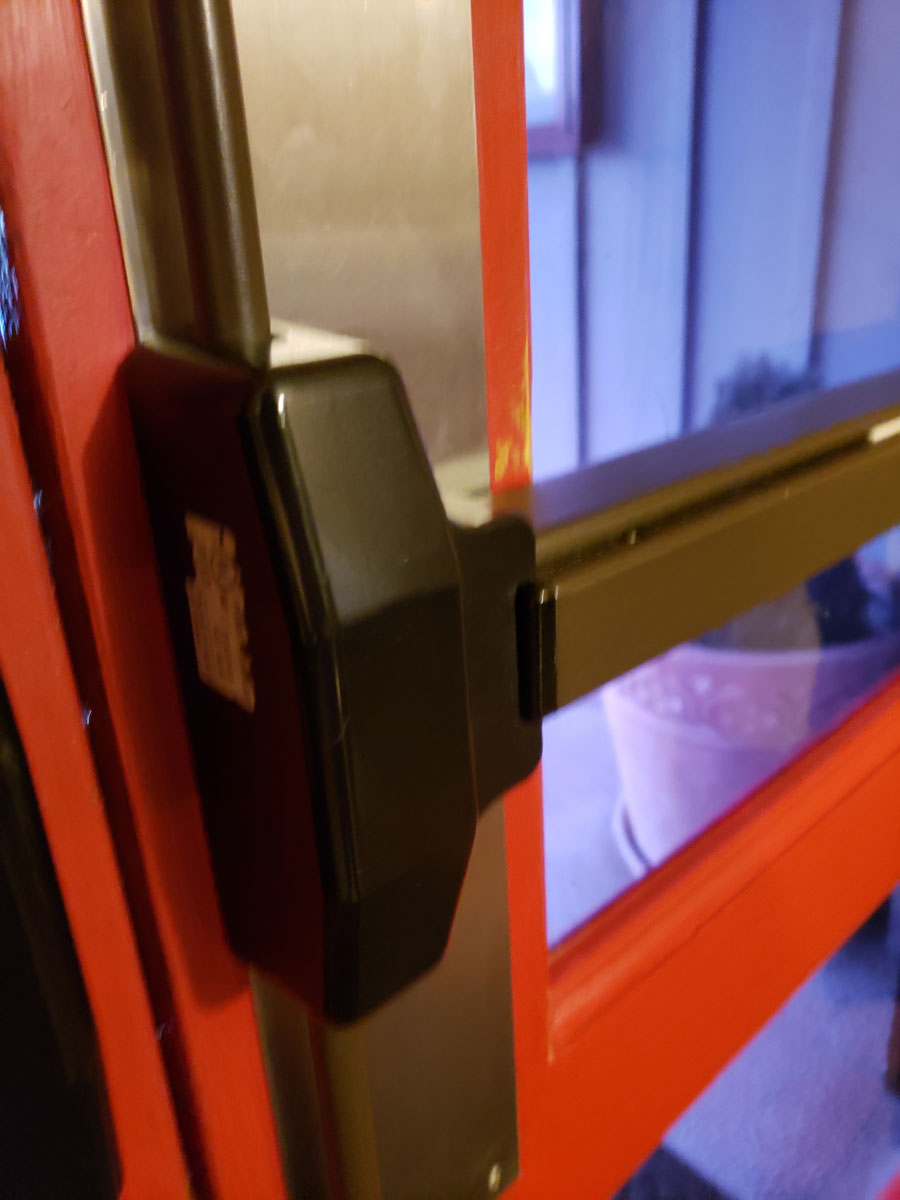

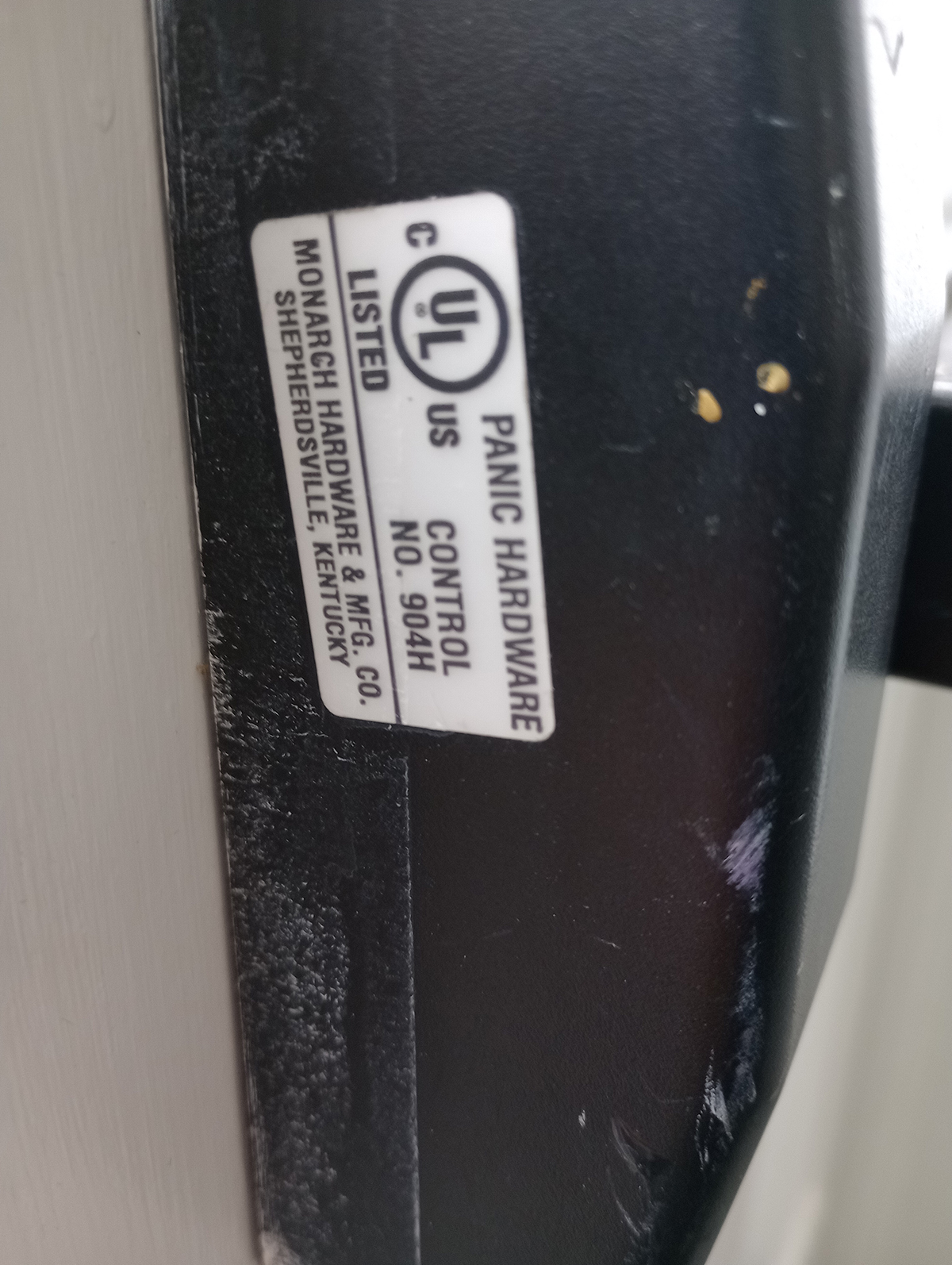

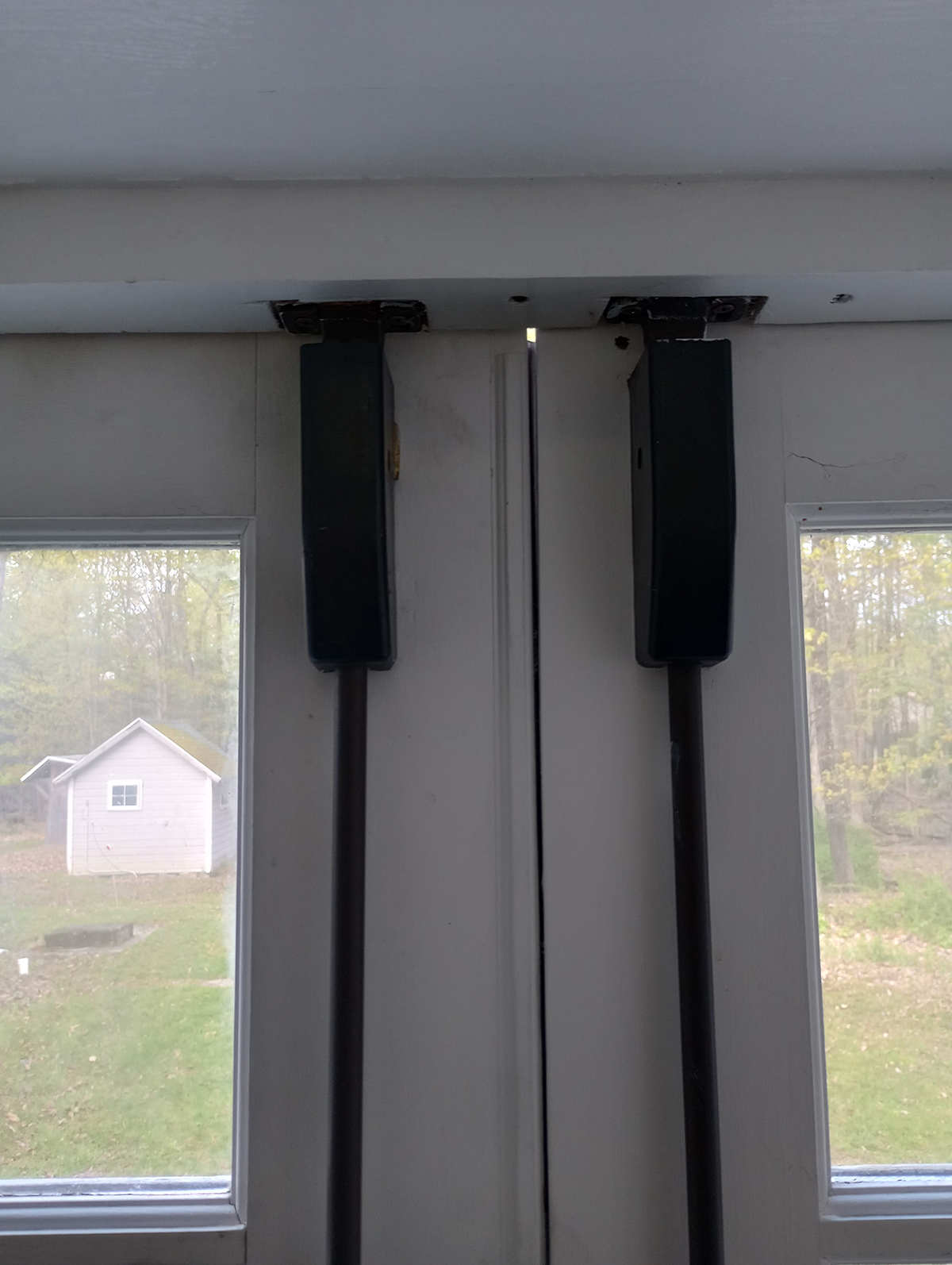

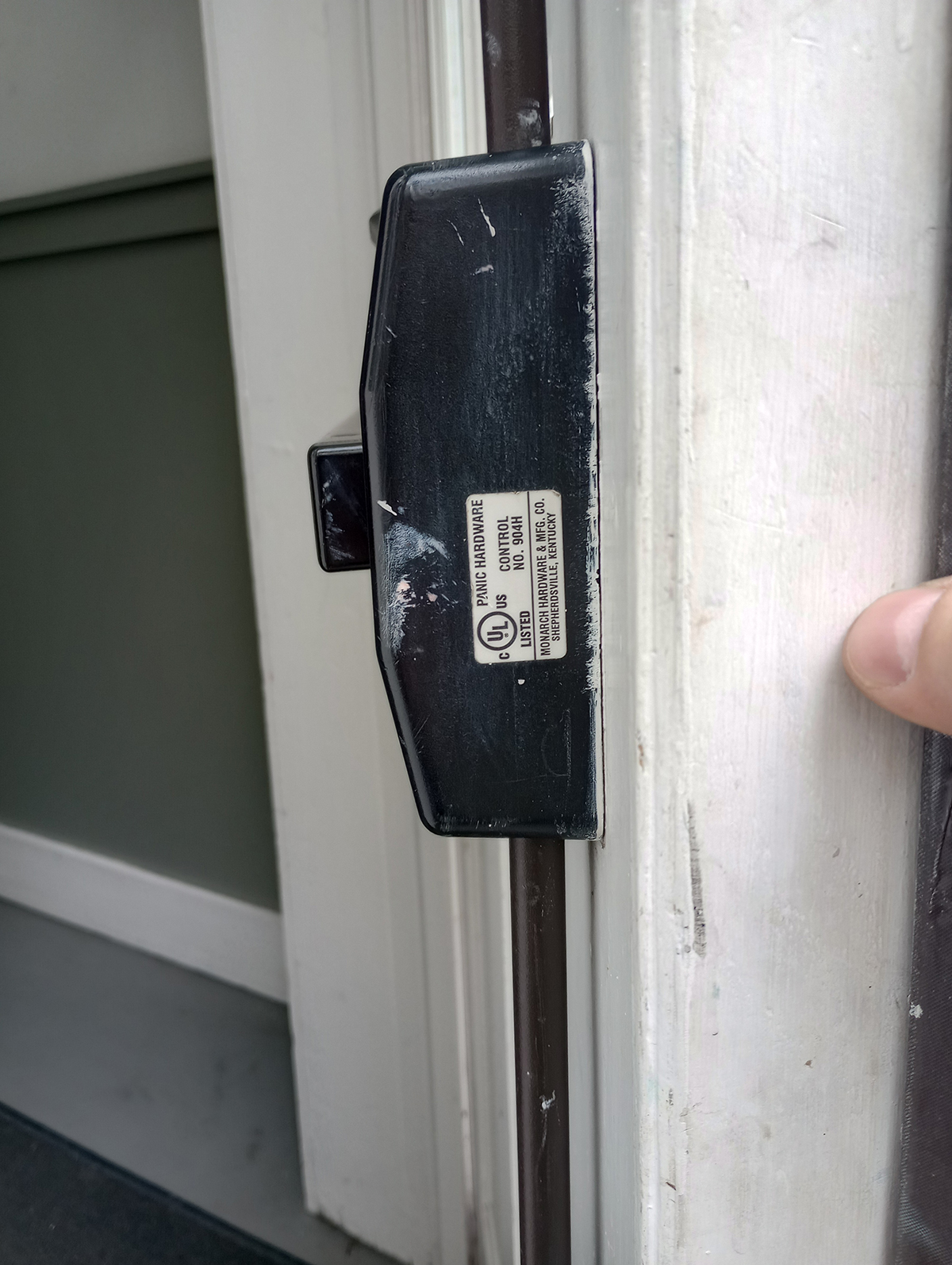

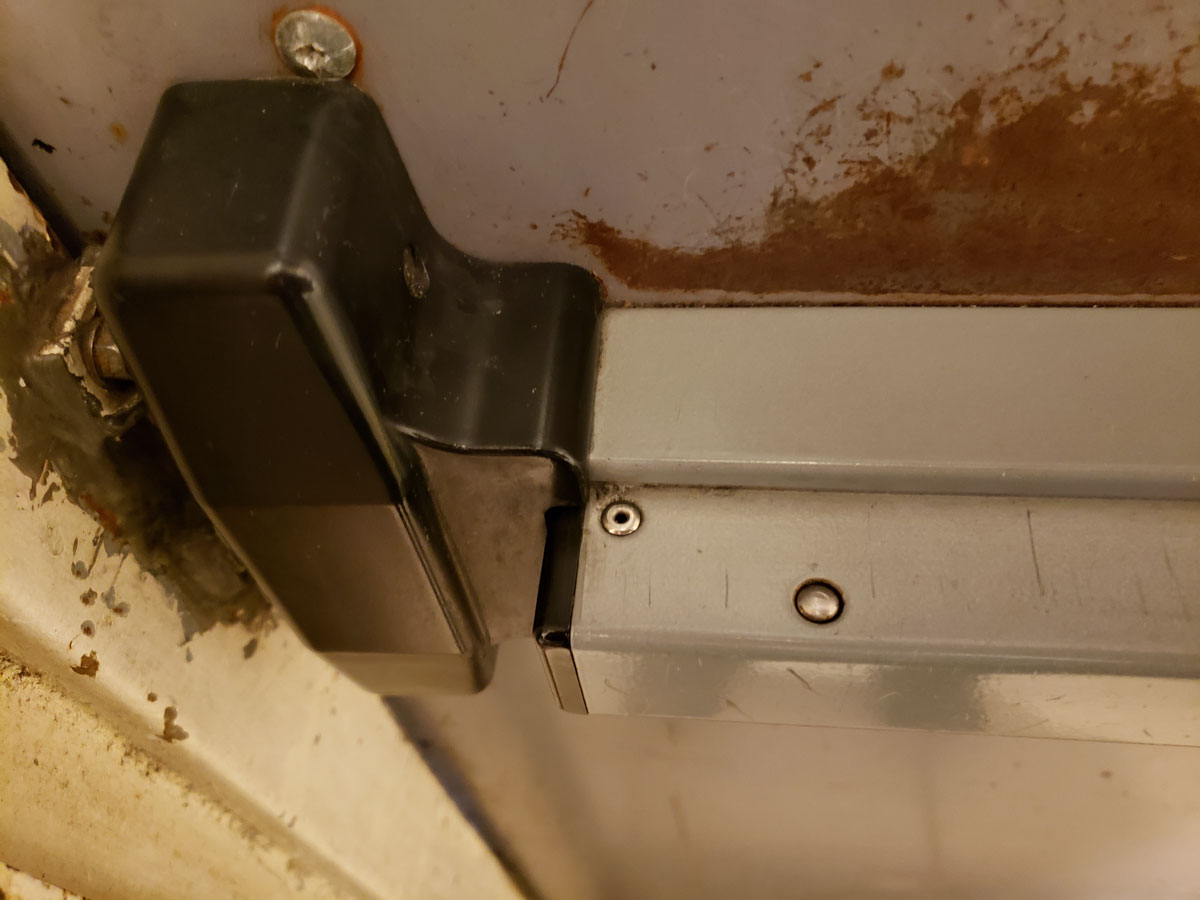

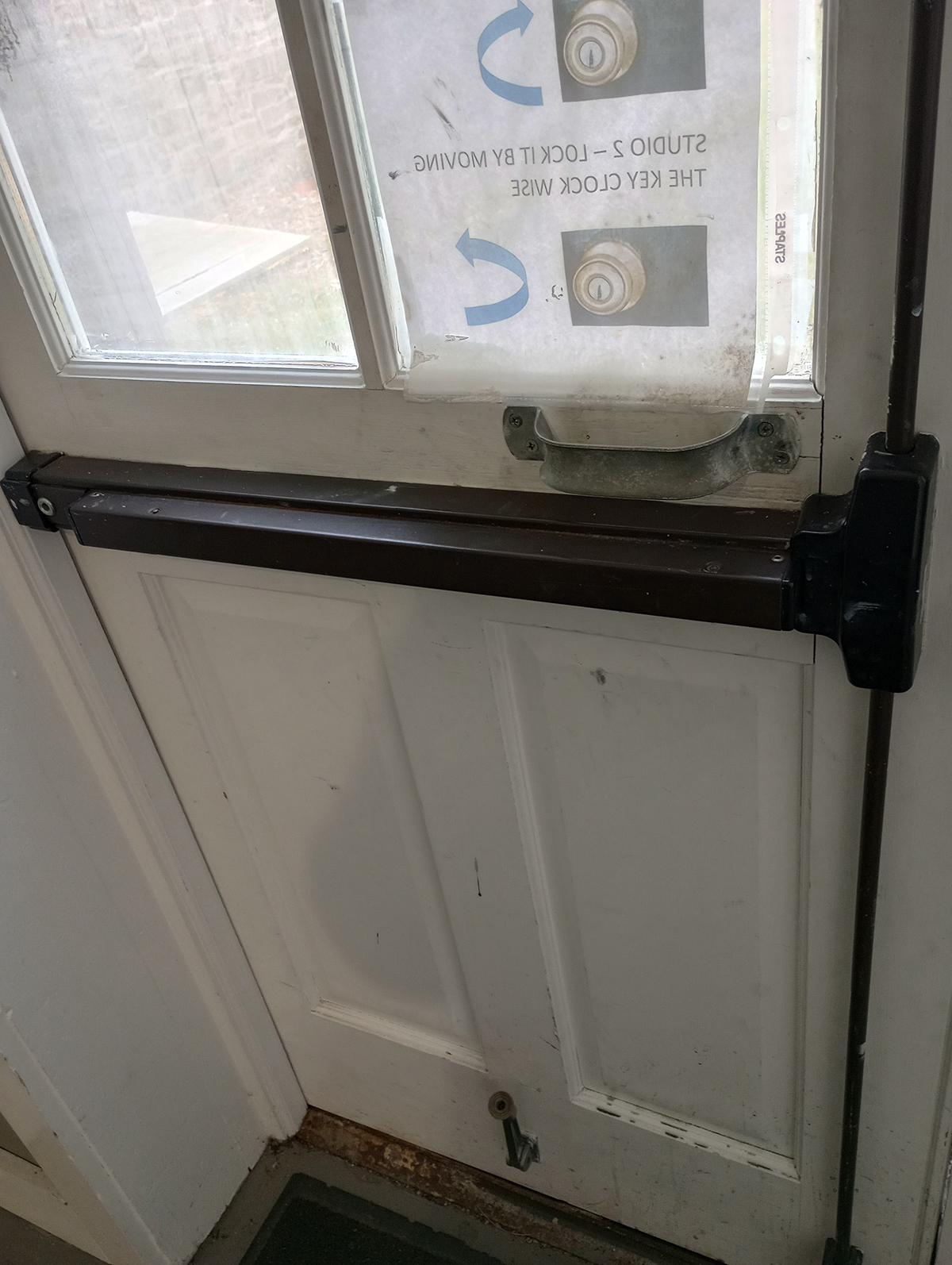

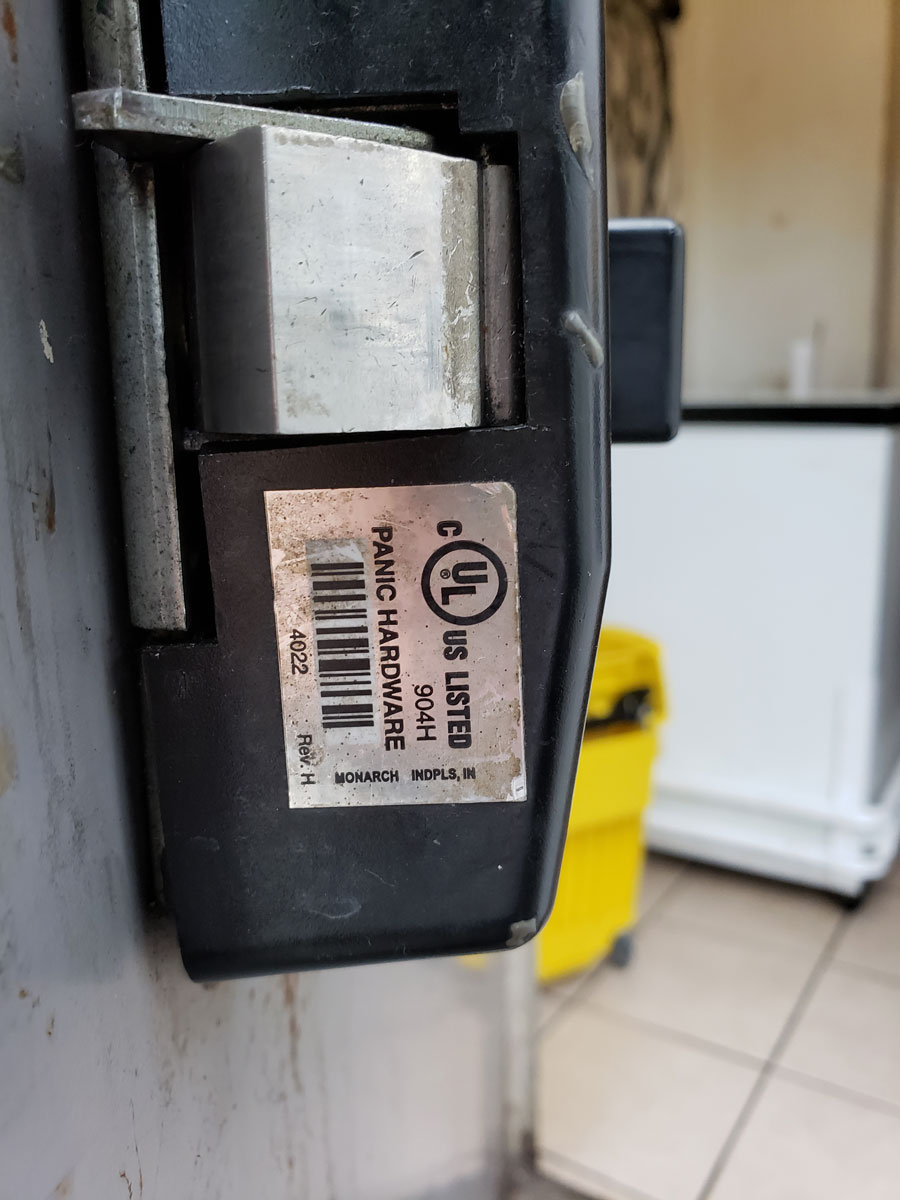

Customer Supplied Photos
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)

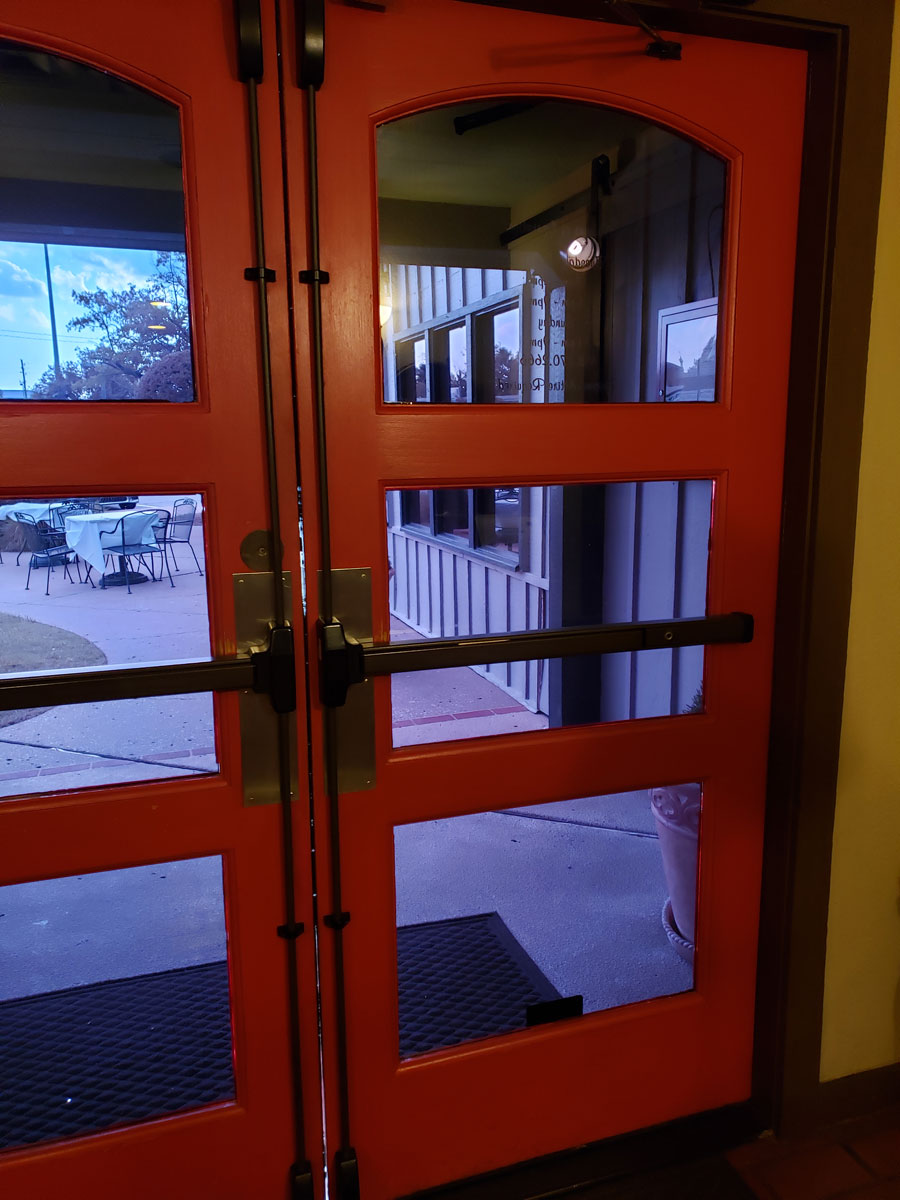

Customer Supplied Photos
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)

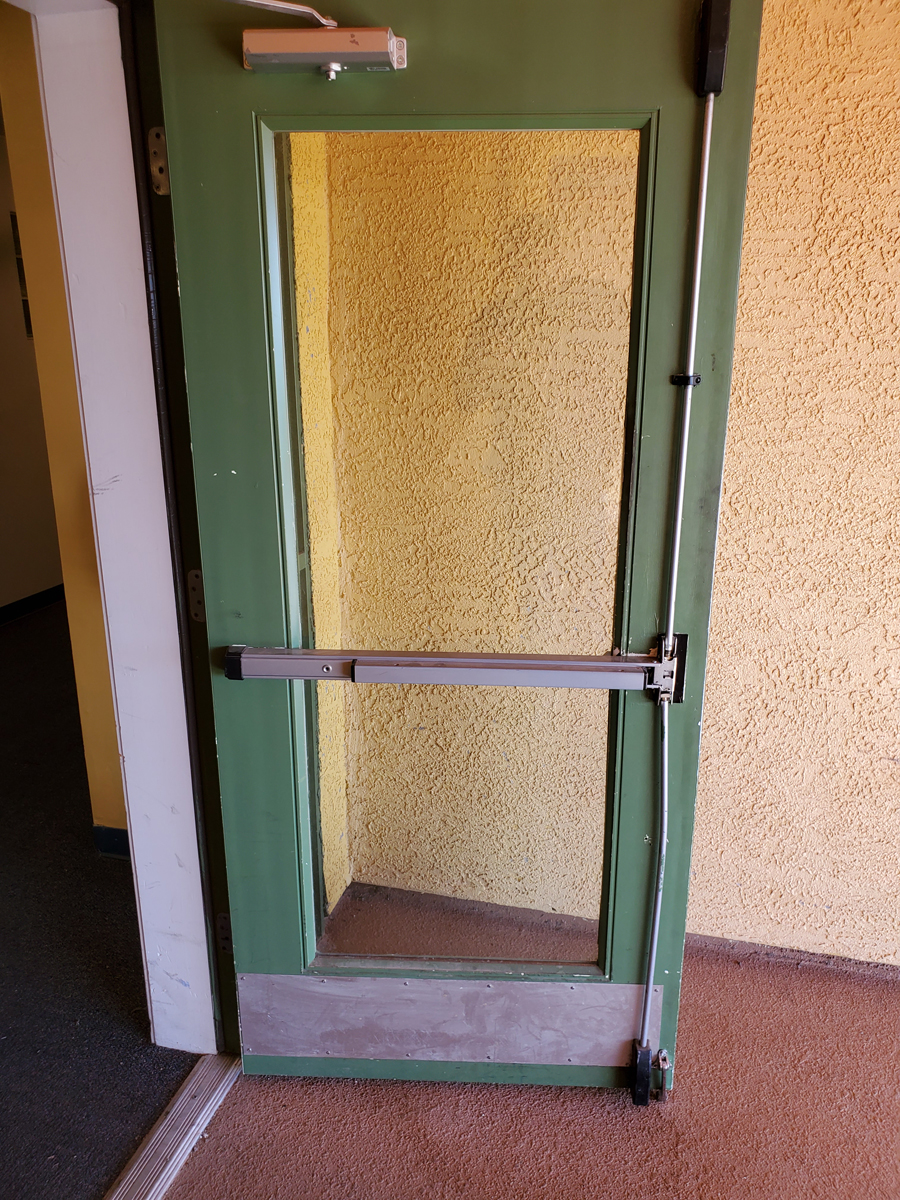

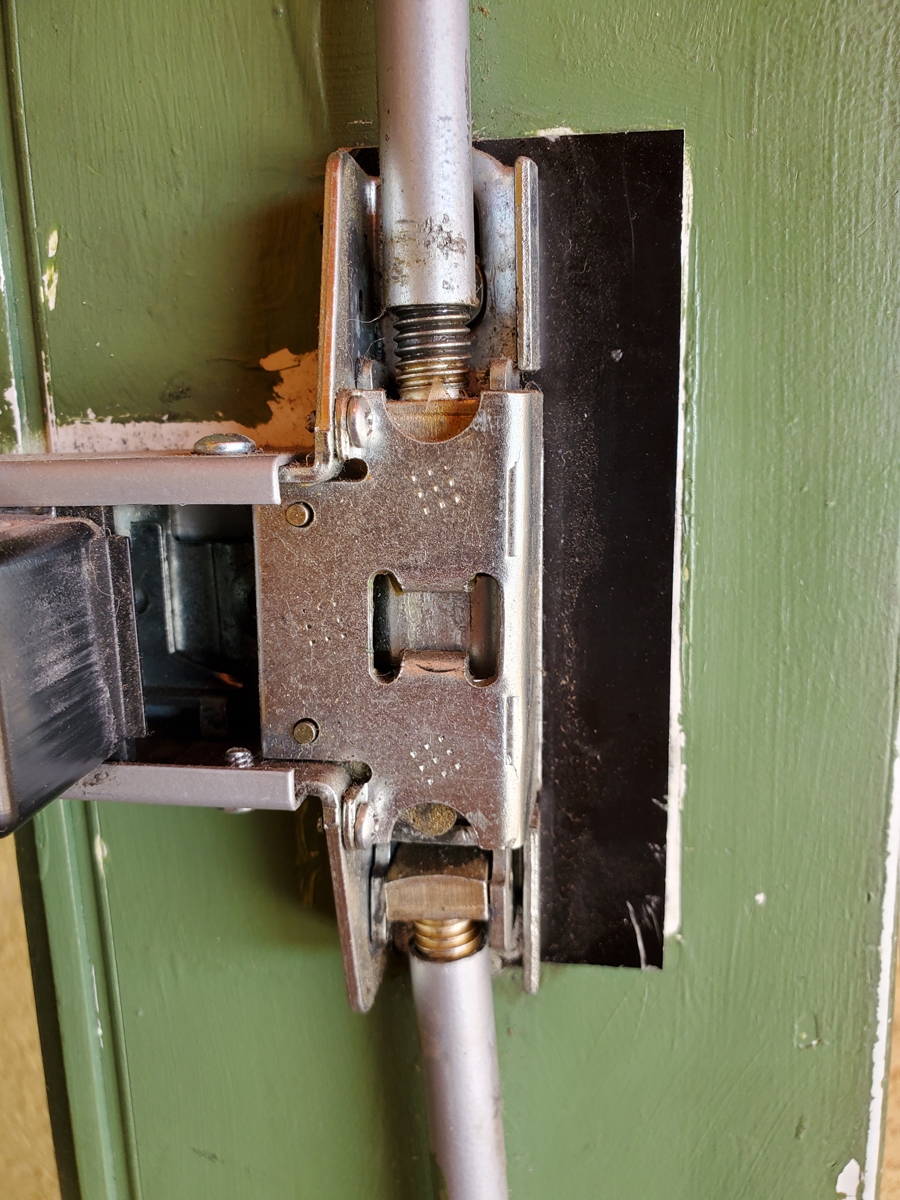

Customer Supplied Photos
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)

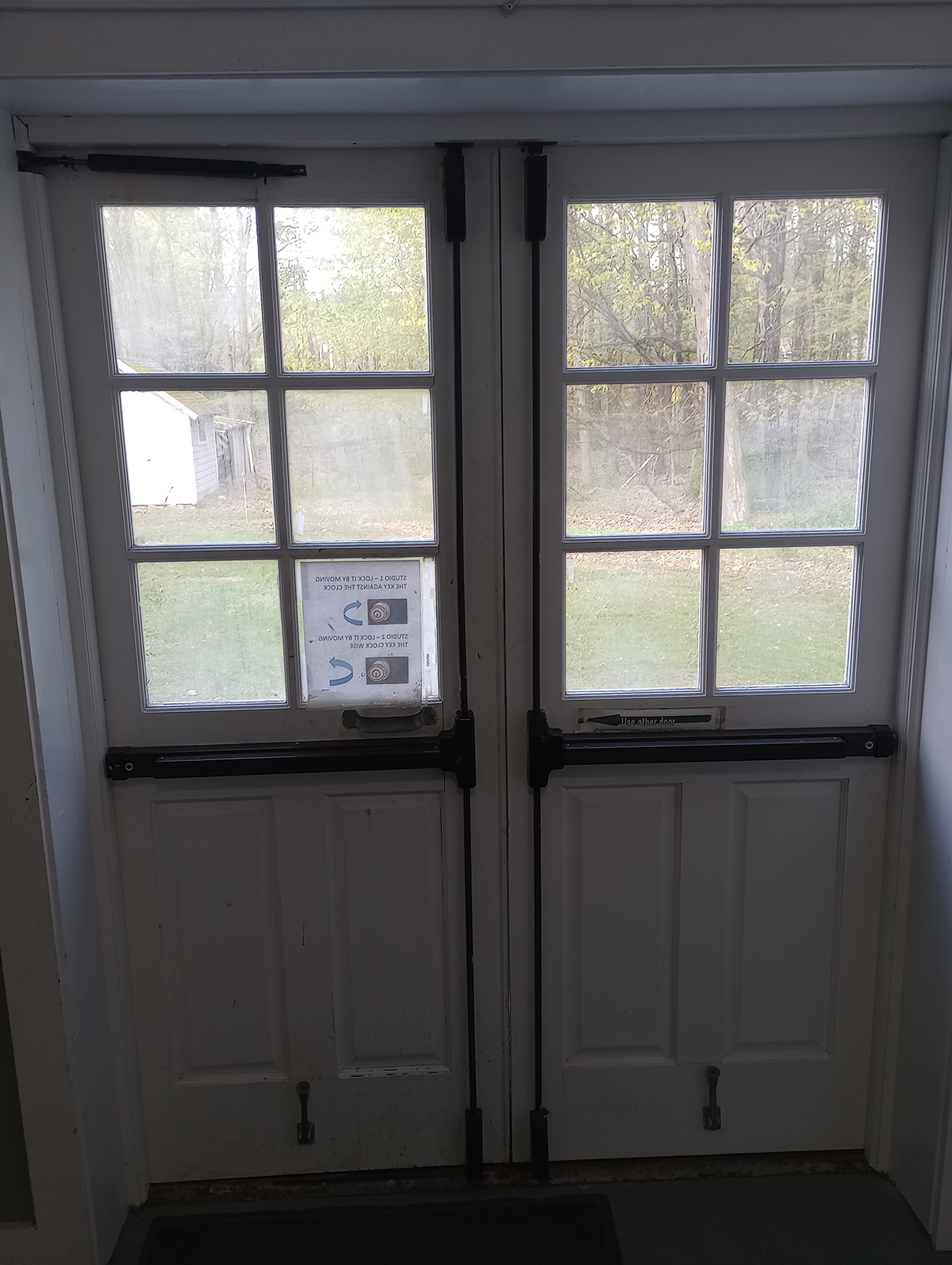

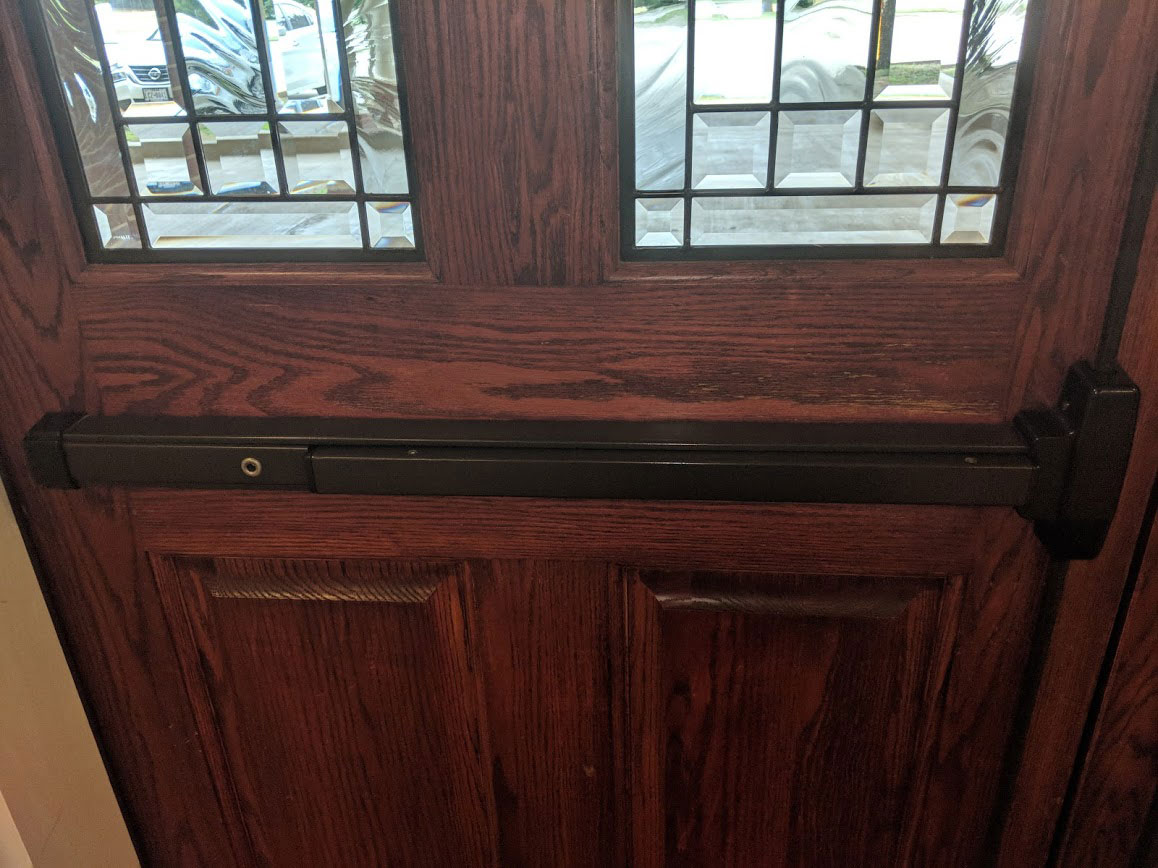

Customer Supplied Photos
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
Customer Images:
Questions and Answers
Q: What is the dogging hex key size on the Falcon Monarch devices?
A:
The hex dogging key size for all Falcon-Monarch exit devices is 7/32" and is the Monarch 2789 7/32" Dogging Key as seen here:
