McKinney T4A3786 4.5x4.5

copy to clipboard

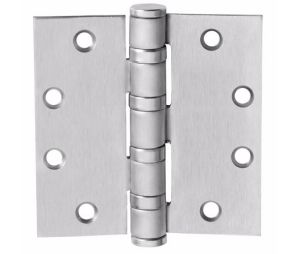

McKinney T4A3786 4.5X4.5 4-1/2" x 4-1/2" Full Mortise, Heavy Weight, 5-Knuckle, Ball Bearing - Satin Chrome Finish

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
McKinney T4A3786 4.5X4.5 4-1/2" x 4-1/2" Full Mortise, Heavy Weight, 5-Knuckle, Ball Bearing - Satin Chrome Finish
Main ImageVideo Review McKinney T4A3786 Ball Bearing Hinge
More from McKinney
Price: $24.18 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

1-844-809-3667

Sales
Technical Support
Product Description:
McKinney T4A3786 4.5X4.5 4-1/2" x 4-1/2" Full Mortise, Heavy Weight, 5-Knuckle, Ball Bearing - Satin Chrome Finish
  • Full Mortise Hinge
  • Finish: Satin Chrome
  • Height: 4-1/2"
  • Width: 4-1/2"
  • Material: Steel
  • Number of Knuckles: 5
  • Number of Holes: 8
  • Fasteners:
    - Machine: 1/2 x 12-24
    - Wood: 1-1/4 x 12
  • ANSI Cross Reference: A8111
  • Gauge: .18
  • Outside diameter: .752 (19.10)
  • Square Corner
  • Ball Bearing
  • Heavy Weight
  • Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals or other public buildings where heavy traffic is experienced
  • Heavy weight hinges should be used on all extra heavy doors or those exposed to high frequency use
  • Note: Specifications of product in image may differ from product being sold
  • Packing & Sold as: Each.
  • Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Questions and Answers
Q: is the pin non-removable
A: This pin on the McKinney T4A3786 4.5" x 4.5" Ball Bearing Hinge is a removable pin. To do this same hinge as a non-removable (of which there are multiple ways to achieve this - we will only discuss here the most common) you simply need to specify NRP in the part number and can be reviewed and purchased here:

Click Here

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -

please consider following us on Twitter

Click Here

or liking our page on Facebook

Click Here

Thank you for your consideration.Click Here

Q: Do you have this item with a non removable pin and in a dark bronze?
A: Yes - indeed we do. Are you looking for Oil Rubbed Bronze?
(Required, used to email you once question is answered.)
