Q: Can a 4010 be mounted with swing clear hinges?
A: Absolutely - using the standard template simply adjust or relocate the closer and arm position from the centerline of the swing clear hinge pin (the vertical azis of pivoting).
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -
please consider following us on Twitter
Click Here
or liking our page on Facebook
Click Here
Q: What is the difference between a 4010 and a 4011 closer?
A: A 4010 is the series of door closer, a 4011 is the adjustable spring inside the closer.
Q: What are the Rod and Shoe lengths for 4000 and 1000 series closers?
A: Here are the dimensions you have asked for:
STANDARD ROD AND SHOE: 4020, 4031, 1460, 1520, 1370, 1070, 1260, 4640, 4820 is: 8 3/8”
LONG ROD AND SHOE: 4020: 4031, 1460, 1520, 1370, 1070, 1260, 4640, 4820 is: 12 3/8”
STANDARD ROD AND SHOE: 4040, 4010 is: 6 3/8”
LONG ROD AND SHOE: 4040 is: 8 3/8”
EXTRA LONG ROD AND SHOE: 4040 is: 12 3/8”
Q: Can LCN closers be installed outside in the elements?
A: The LCN closers are not designed nor intended to be exterior mounted in the elements.
Q: I have the 4011/4021 closer, what replaces that model?
A: Neither of the two models you have mentioned are discontinued and are currently available and have for decades in fact at this point.
Q: What would replace a 4013 closer?
A: The 4010 Series "fixed" sized springs are no longer available. The 4010 Series closer are now available as a 4011 and a 4016. The 4011 is an adjustable spring closer for sizes 1-5. The 4016 is still a "fixed" size 6 closer.
Q: Can the 4011MCLH be used on a right hand door
A: It cannot be. The 4011 is a handed unit and not reversible whatsoever BUT if you were installing it in a Top Jamb type mount, it might work. Shall I investigate this?
Q: Is the 4011/4021 the same as a 4011/3071
A: The 4011 & 4021 are different door closers and are mounted differently though still within the 4000 series family of door closers. The 4011/3071 is a specific reference to an arm type within the 4010 series.

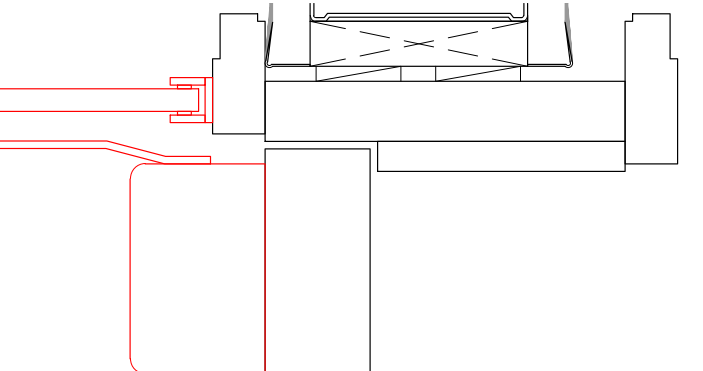

Q: Will the application seen in the image here work:
View Image
the thickness of the casing is 7/8”
A: With the use of a standard arm the maximum thickness of your casing can be 3/4”.
We can implement a double egress arm and increase that substantially.
From the manufacturers catalog as seen on the 267th page here please review the line titled “Reveal”
:
Download File
