McKinney MK67007

copy to clipboard

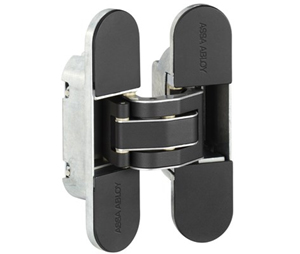

McKinney MK67007 MK80A Series Concealed Hinge - Matte Black

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.

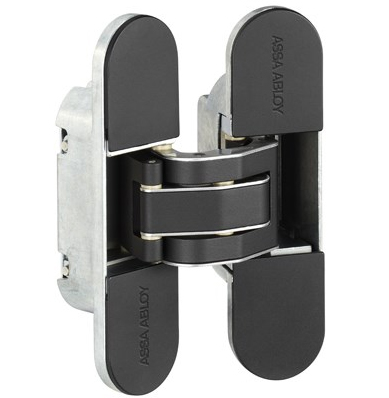

McKinney MK67007 MK80A Series Concealed Hinge - Matte Black
More from McKinney
Price: $53.29 USD
Ships From
Comments (Optional)
ADD TO CART
Quick Ship - up to 10 units available to ship in 10 business days
For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
McKinney MK67007 MK80A Series Concealed Hinge - Matte Black
Refined and minimal, the McKinney Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration. The snap-on covers conceal screws for a clean aesthetic.
  • Concealed Hinge
  • Model number: MK80 (Covers included)
  • Base material: Zinc alloy
  • Finish: Matte Black
  • Overall Size: 4-3/8" x 1-1/8"
  • Hinge length: 111.5mm (4-3/8")
  • Hinge width: 29 mm (1-1/8")
  • Non-handed
  • Opening angle: 180°
  • 3-Dimensional adjustability: Height +/- 2 mm; side +/- 2 mm; and depth +/- 1 mm
  • For wood or hollow metal doors with wood or metal frames
  • Door thickness minimum: 1-3/8"
  • Sold as each. When you order one you will receive one hinge. Price is for one hinge.
Hinge Capacity (for door thickness minimum: 1-3/8"):
Number of Hinges Door Width
32" 36" 42" 48"
2 185 lbs 176 lbs 143 lbs 132 lbs
3 211 lbs 198 lbs 160 lbs 149 lbs
4 223 lbs 220 lbs 171 lbs 158 lbs

MK80A 3D Adjustment Video
