McKinney MK67001
McKinney MK67001

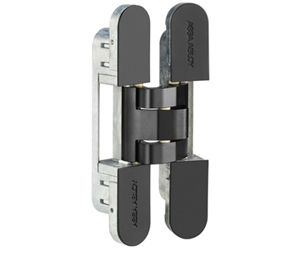

McKinney MK67001 MK100 Series Concealed Hinge - Matte Black
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
108.17 USD
In Stock Ready for Shipment
Volume Price Information
Buy
15
or more and pay
$98.17
each (save
$10.00
)
Comments
(Optional)
ADD TO CART
Quick Ship -
up to 10 units available to ship in 10 business days
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
McKinney MK67001 MK100 Series Concealed Hinge - Matte Black
Refined and minimal, the McKinney Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration.The snap-on covers conceal screws for a clean aesthetic.
Concealed Hinge
Model number: MK100 (Covers included)
Base material: Zinc alloy
Finish: Matte Black
Overall Size: 6-1/4" x 1-1/16"
Hinge length: 160 mm (6.30")
Hinge width: 28 mm (1.10")
Non-handed
Opening angle: 180°
3-Dimensional adjustability: Height +/- 2.5 mm; side +/- 2.5 mm; and depth +/- 1 mm
For wood or hollow metal doors with wood or metal frames
Door thickness minimum: 1-3/8"
Sold as each. When you order one you will receive one hinge. Price is for one hinge.
Hinge Capacity (for door thickness minimum: 1-3/8"):
Number of Hinges
Door Width
32"
36"
42"
48"
2
224 lbs
220 lbs
180 lbs
165 lbs
3
253 lbs
246 lbs
202 lbs
185 lbs
4
282 lbs
275 lbs
216 lbs
198 lbs
Product Brochure
CutSheet
Installation Instruction
MK100 3D Adjustment Video
Video Detail Page
Questions and Answers
Q: Good afternoon, Do you sell the jig for use with these concealed hinges? and If so, please provide a link to such.
A:
Unfortunately the manufacturer does not produce templates for their concealed hinges nor am I aware of 3’rd party that manufactures them either - the only company that I am aware of who produces templates for their concealed hinges would be Soss and their full line catalog can be seen here:
Download File
Q: If I may ask; How does one properly cut the mortise for these hinges if there is no jig to do such?
A:
Generally people would make their own template, mortise the work by hand or switch the hinge to a manufacturer that provides templates for their concealed hinges. Please feel free to call me and I will walk you through the steps of what your options are for the machine of these concealed hinges - please be sure to have your order number available so that I can reference the project that we are working on.
