McKinney 1502443

copy to clipboard

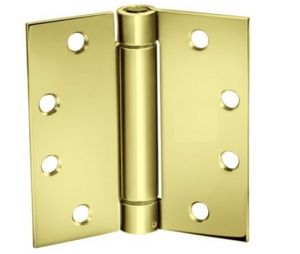

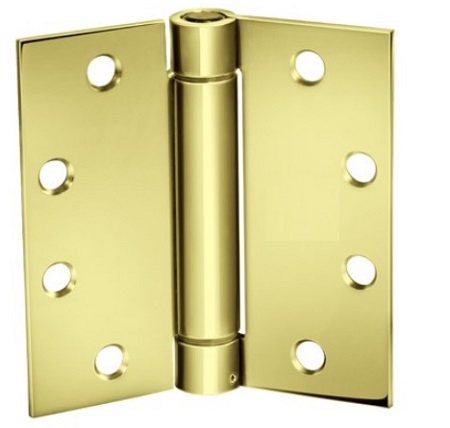

McKinney 1502443 4" x 4" Steel Single Acting Standard Weight Full Mortise Spring Hinge - Bright Brass Finish

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
McKinney 1502443 4" x 4" Steel Single Acting Standard Weight Full Mortise Spring Hinge - Bright Brass Finish
More from McKinney
Price: $41.23 USD
Ships From
Comments (Optional)
ADD TO CART
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
McKinney 1502443 4" x 4" Steel Single Acting Standard Weight Full Mortise Spring Hinge - Bright Brass Finish
  • Single Acting Spring Hinge
  • Finish: Bright Brass
  • Height: 4"
  • Width: 4"
  • Material: Steel
  • Gauge: .130
  • Number of Knuckles: 3
  • Number of Holes: 8
  • ANSI Cross Reference: K81081, K81081F
  • Square Corners
  • Ball Bearing
  • Standard Weight
  • UL Listed
  • Adjustable Tension
  • Fasteners:
    - Machine: 1/2 x 12-24
    - Wood: 1-1/4 x 12
  • Recommended for:
    - standard weight doors
    - medium frequency doors
    - door closers in apartments, hotels, motels, office buildings, etc
  • Spring hinges are an alternative to door closing devices. Generally two hinges on the door must be spring hinges to provide adequate closing force. NFPA requires a minimum of two (2) spring hinges on labeled doors
  • This non-handed spring hinge series is adjustable and tension can be added or reduced by means of a hex key that is provided
  • Locking screw provides tamper-resistance after the proper tension has been set
  • Caution: Use of gasketing for smoke or sound protection, wind conditions or unbalanced air pressure, twisted or misaligned frames or doors, door bottoms, improper latch adjustment may prevent doors from latching. Additional spring hinges may be required
  • Note: Specifications of product in image may differ from product being sold
  • Packing & Sold as: Each.
  • Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
