Locknetics 515-24 24 VDC Power Supply

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Locknetics 515-24 24 VDC Power Supply
More from Locknetics
Price: $1,289.97 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 1
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
515 Series 24 VDC Power Supply
  • INPUT POWER 110 VAC 60 HZ 2 amp
  • OUTPUT VOLTAGE 24 VDC Nominal (13.8 VDC), Filtered and Regulated
  • OUTPUT CURRENT 5 amp max. @ 27.6 VDC
  • PRIMARY FUSE SIZE 6.3 amp (non-removable)
  • BATTERY FUSE SIZE 12 amp, 3AG
  • SECONDARY CIRCUIT Output overload protected by the regulator circuit
  • CHARGING CIRCUIT Built-in standard
  • ENCLOSURE 12"x12"x4" Steel NEMA Grade 1 with conduit knockouts and hinged cover with lock down screws
  • COLOR/FINISH Beige/baked enamel
  • WEIGHT (Power Supply) 9 lbs.
  • INPUT TERMINALS Barrier strip with (2) #6 screw terminals with protective cover (1) #10 ground screw
  • OUTPUT TERMINALS Barrier strip with (10) #6 screw terminals (basic unit only)
  • DESCRIPTION OF OPERATIONS With line power applied, a green LED on the circuit board will be illuminated. This indicates constant power on the output terminals. When batteries are included power may be present on output terminals with the green LED illuminated and no line power present. When line power is present the built-in recharging circuit will keep the batteries charged.

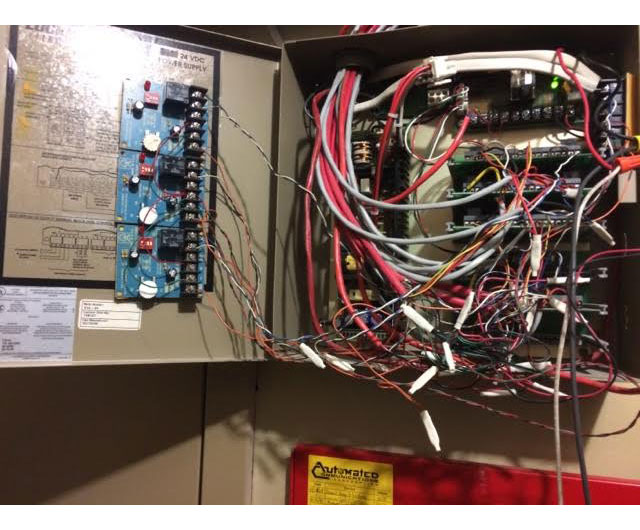

Customer Supplied Photo shown with 1 - Locknetics CMR and 3 - Locknetics DCM

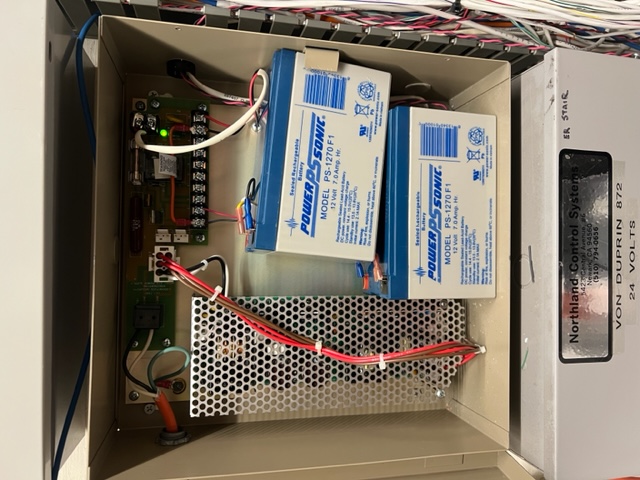

Customer Supplied Photos

(Click to Enlarge)

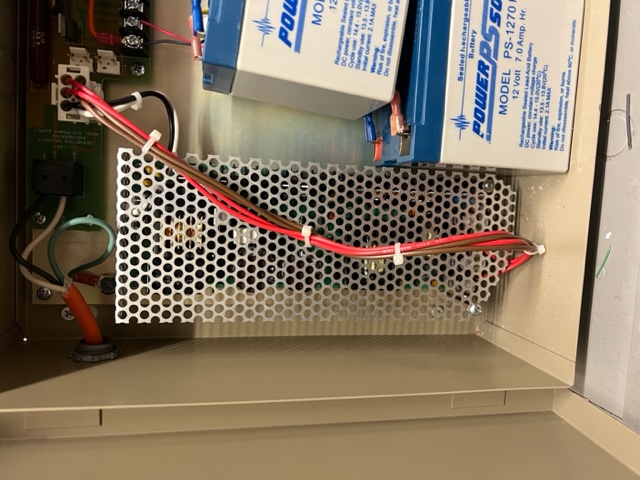

Customer Supplied Photos

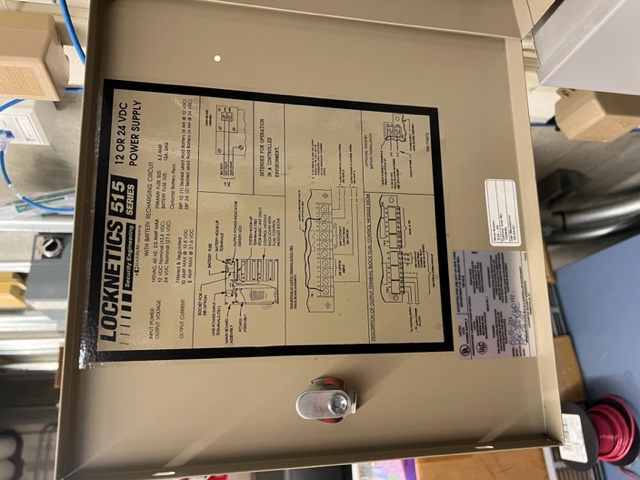

Locknetics 515-24 24 VDC Power Supply
(Click to Enlarge)

POWER SUPPLY CROSS REFERENCE LIST

PS900-Model PS900-Summary Legacy Supply (PS873)
PS902 2AMP @ 12/24VDC
1 option board connector
1 fire alarm connector
1 battery board plug
505 (1AMP @ 12/24VDC)
510 (@AMP @ 24VDC)
861 (2AMP @ 12VDC, 1AMP @ 24VDC)
PS904 4AMP @ 12/24VDC
2 option board connectors
1 battery board connector
510 (3AMP @ 12VDC)
873 (4AMP @ 12VDC, 2AMP @ 24VDC) - no inrush app's
SBB-3 (24VDC @ 3AMP)
PS906 6AMP @ 12/24VDC
3 option board connectors
1 battery board connector
515 (5AMP @ 24VDC)
SBB-5 (5AMP @ 24VDC)
515 (10AMP @ 12VDC) - no exact match
SBB-2- (10AMP @ 24VDC) - no exact match
PS914 12/24VDC @ 4AMP Hi Inrush
2 option board connectors
1 battery board connector
PS873 (2AMP @ 24VDC, 4AMP @ 12VDC) Hi Inrush

POWER SUPPLY OPTION BOARD

PS900- Model PS900-Summary Legacy supply (PS873)
900-2RS 2 zone control with sequencing 871-2 board
900-2Q 2 zone control for QEL 2Q board
900-4R 4 relay control, no timing or logic DCM, RCM
900-4RL(4TD,AO & SI) 4 relay control with logic - field programmable 4TD, SI, AO, DCM + TDM, RCM + TDM
900-8F 8 fused 4AMP max outputs NEW
900-8P 8 PTC 1.8AMP output NEW
900-BBK Battery backup w/ batteries 873-BB
900-FA Fire alarm FA, EIR

POWER SUPPLY OPTION BOARD COMPATIBILITY

Option Board Von Duprin PS914 Schlage PS902, PS904, PS906
900-2RS Yes No
900-2Q Yes Yes
900-4R Yes Yes
900-4RL Yes Yes
900-8F Yes Yes
900-8P Yes Yes
900-BBK Yes Yes
900-FA Yes Yes

NOTE:
The newer PS900 option cards can NOT be used in the PS873 power supplies.
The PS873 option cards also can NOT be used in the newer PS900 series power supplies


Questions and Answers
Q: What type of door release switches can I use fot this unit?
A: Lots. Electromagets, Electric strikes, electrifed locksets and exit devices etc.

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: I have a Locknetics series 515-24 and it has a switch that works with a round magnetic maganet. can I order a new key from your company, and if so what is the part number?
A: Where are you using this key? Can you email us a photo of the item?
