Locknetics 505-EIR

Name: Locknetics 505 EIR Power Supply
Brand: Locknetics
SKU: Locknetics 505-EIR
Price: 385.06 USD

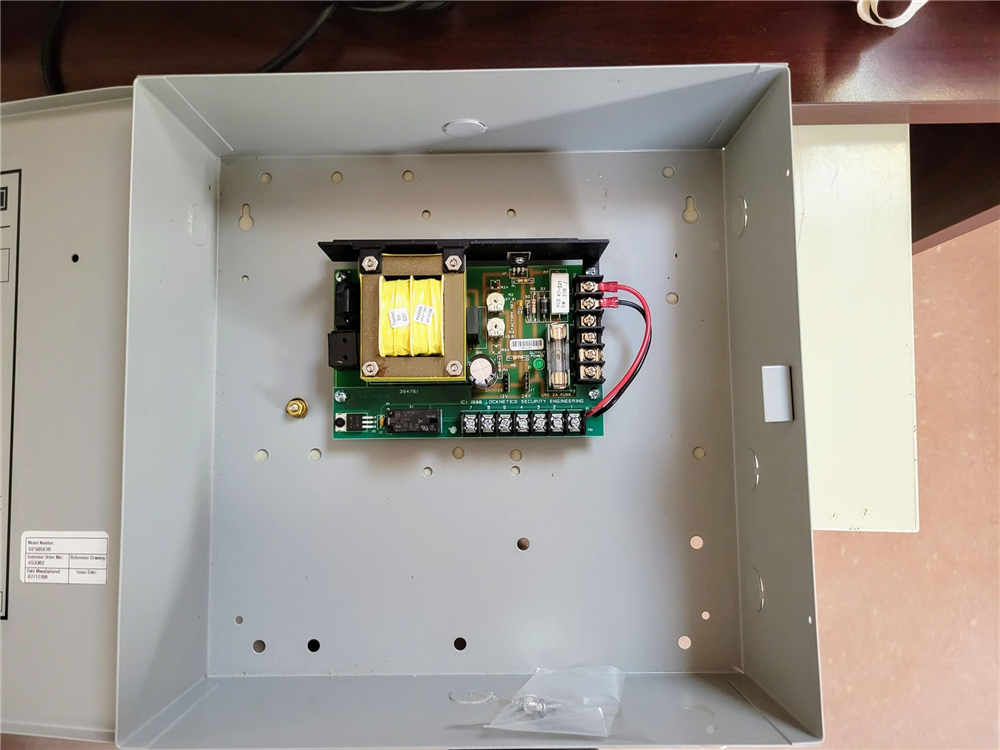

Locknetics 505 EIR Power Supply

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $385.06 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

505-EIR Series Power Supply

INPUT POWER: 120 VAC 60HZ 0.5amp
OUTPUT VOLTAGE:
- 12 VDC Nominal (13.8 VDC)
- 24 VDC Nominal (27.6 VDC)
- Field Selectable
- Filtered and Regulated
OUTPUT CURRENT 1 amp @ rated voltage
PRIMARY FUSE SIZE 800 mA, 5 x 20 mm
BATTERY FUSE SIZE 2 amp, 3 AG
SECONDARY PROTECTION Output overload protected by the regulator circuit
CHARGING CIRCUIT Built-in standard
ENCLOSURE 12" x12" x 4 steel NEMA Grade 1 with conduit knockouts & hinged cover with lock down screws
COLOR/FINISH Beige/baked enamel
WEIGHT (Power Supply) 8.0 lbs.
INPUT TERMINALS Barrier strip with (2) #6 screw terminals and Protective cover and 1 #10 ground screw
OUTPUT TERMINALS Barrier strip with (6) #6 screw terminals
1 amp of output current at 12 and 24 DC volts (field selectable, shipped set at 12 volts)
UL listed as general purpose power supply.
Features low voltage DC, regulated, filtered power supplies with a built in battery charging circuit.
Designed to Provide easy system interface with Locknetics locking devices, station controls, and consoles.
NEMA Grade 1 approved enclosure

Template

Product Brochure

Product Details


Click to Enlarge Click to Enlarge

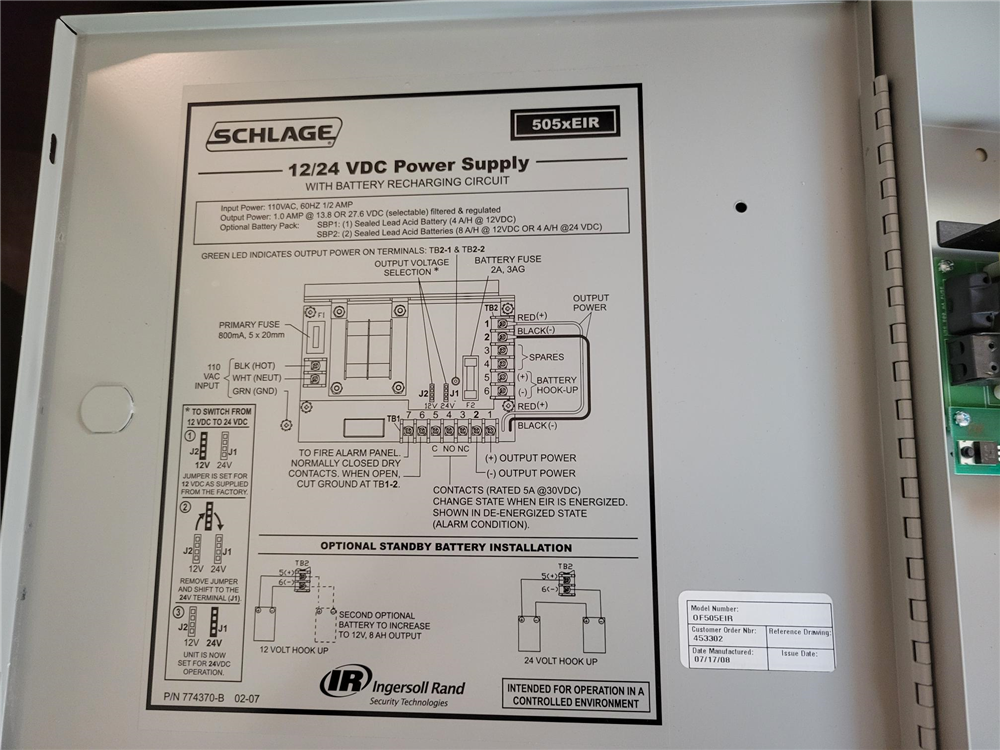

Customer Supplied Photo

(Click to Enlarge)

POWER SUPPLY CROSS REFERENCE LIST

PS900-Model	PS900-Summary	Legacy Supply (PS873)
PS902	2AMP @ 12/24VDC 1 option board connector 1 fire alarm connector 1 battery board plug	505 (1AMP @ 12/24VDC) 510 (@AMP @ 24VDC) 861 (2AMP @ 12VDC, 1AMP @ 24VDC)
PS904	4AMP @ 12/24VDC 2 option board connectors 1 battery board connector	510 (3AMP @ 12VDC) 873 (4AMP @ 12VDC, 2AMP @ 24VDC) - no inrush app's SBB-3 (24VDC @ 3AMP)
PS906	6AMP @ 12/24VDC 3 option board connectors 1 battery board connector	515 (5AMP @ 24VDC) SBB-5 (5AMP @ 24VDC) 515 (10AMP @ 12VDC) - no exact match SBB-2- (10AMP @ 24VDC) - no exact match
PS914	12/24VDC @ 4AMP Hi Inrush 2 option board connectors 1 battery board connector	PS873 (2AMP @ 24VDC, 4AMP @ 12VDC) Hi Inrush

POWER SUPPLY OPTION BOARD

PS900- Model	PS900-Summary	Legacy supply (PS873)
900-2RS	2 zone control with sequencing	871-2 board
900-2Q	2 zone control for QEL	2Q board
900-4R	4 relay control, no timing or logic	DCM, RCM
900-4RL(4TD,AO & SI)	4 relay control with logic - field programmable	4TD, SI, AO, DCM + TDM, RCM + TDM
900-8F	8 fused 4AMP max outputs	NEW
900-8P	8 PTC 1.8AMP output	NEW
900-BBK	Battery backup w/ batteries	873-BB
900-FA	Fire alarm	FA, EIR

POWER SUPPLY OPTION BOARD COMPATIBILITY

Option Board	Von Duprin PS914	Schlage PS902, PS904, PS906
900-2RS	Yes	No
900-2Q	Yes	Yes
900-4R	Yes	Yes
900-4RL	Yes	Yes
900-8F	Yes	Yes
900-8P	Yes	Yes
900-BBK	Yes	Yes
900-FA	Yes	Yes

NOTE:
The newer PS900 option cards can NOT be used in the PS873 power supplies.
The PS873 option cards also can NOT be used in the newer PS900 series power supplies
