LCN Rebuilt D

Name: LCN Rebuilt D Potbelly/Traditional Surface Door Closer
Brand: LCN
SKU: LCN Rebuilt D
Price: 441.72 USD

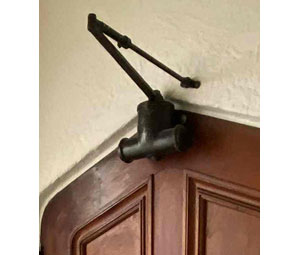

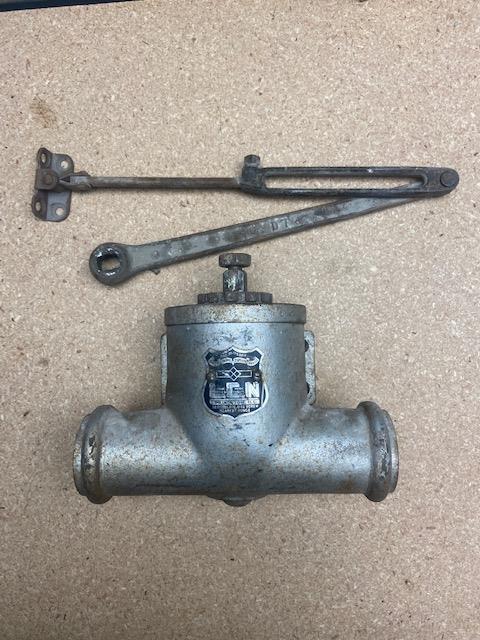

LCN Rebuilt D Potbelly/Traditional Surface Door Closer

× This image is for a similar product but it will differ in size, color and/or other attributes.

LCN Rebuilt D Potbelly/Traditional Surface Door Closer

Price: $441.72 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 2-3 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


LCN Rebuilt D Potbelly/Traditional Surface Door Closer

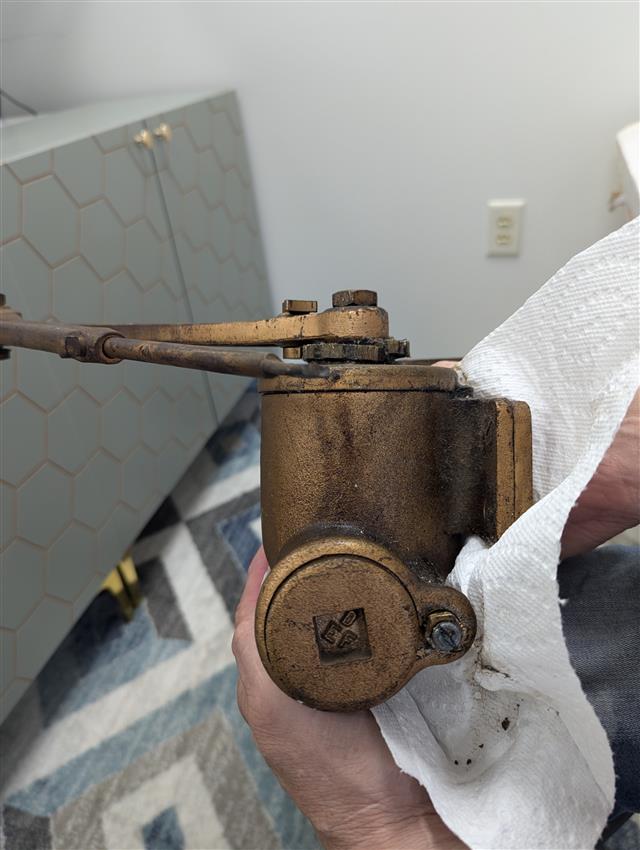

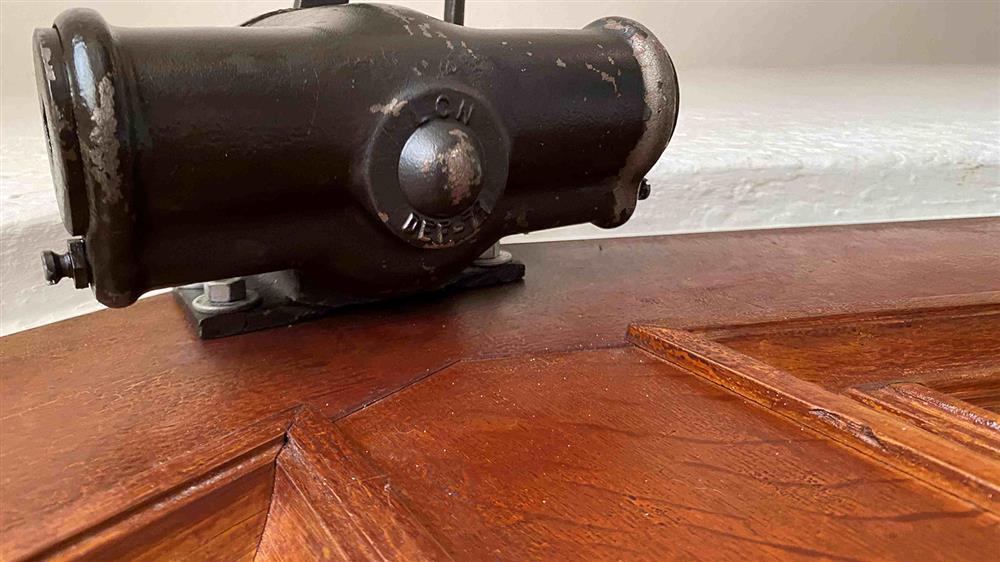

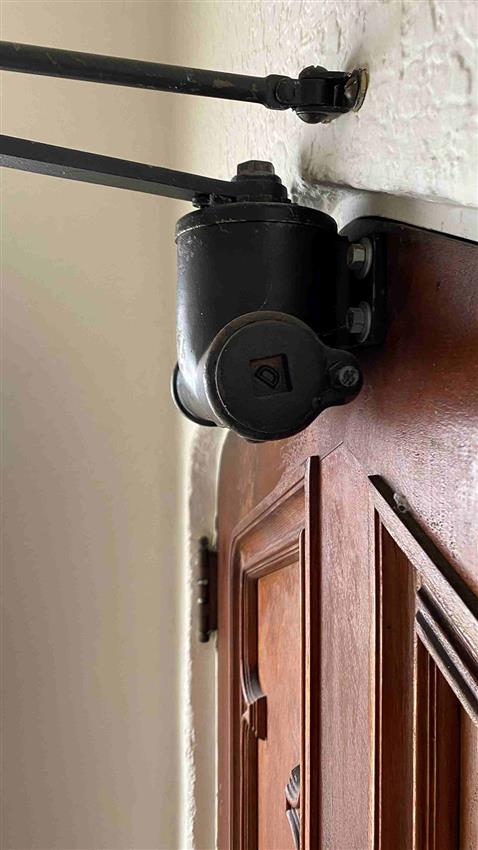

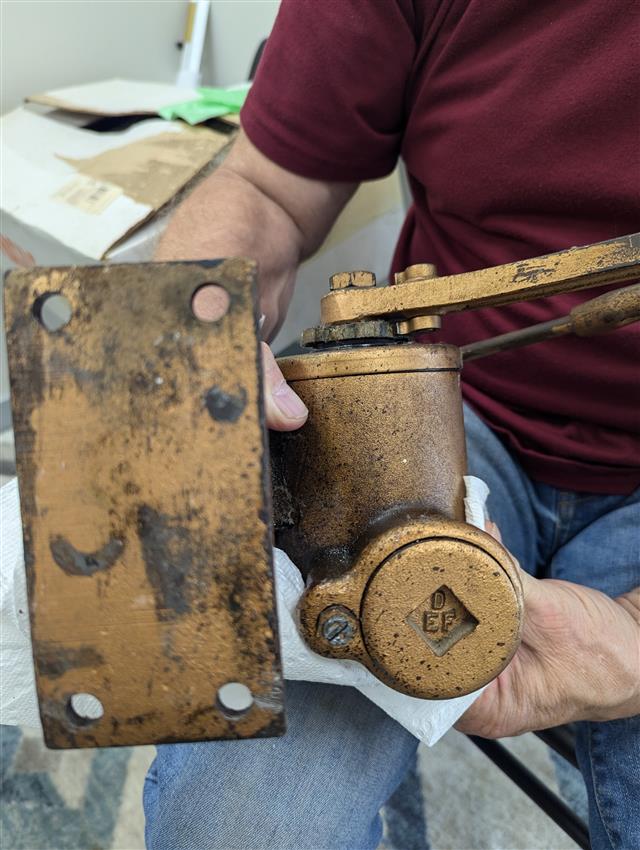

Features: LCN Rebuilt D Potbelly/Traditional Surface Door Closer Identifying this unit can be done to by viewing the “D” LCN (letter is on each end) (left and right) The Select Finish option above is where you can instruct us what finish to ship the door closer back to you as. Keep in mind that it may not match the rest of accessory Hardware that you already will have such as an arm or a drop plate. Our rebuild shop will also repaint your accessories for an additional charge. Select these options above. If you require the repainting of an item not listed above, please reach out to us for a quote.	Cut Sheet Installation Instructions
Customer Unit Repair and Exchange Service Program Details: We feature two programs for handling your door closer repair and replacement needs. Choosing our Repair Service is where you complete checkout through the website or over the telephone. We will email you the address to where your door closer body is to be sent to. Be sure to retain the tracking number of your shipment and ship the item(s) as Signature Required. We will receive the package, complete the repair and rebuild process and ship back the same model door closer. The door closer we send is usually not the exact unit you will ship to us. If you want us to return your exact unit, simply indicate this in the comment field. This usually adds 1-week to the shipping lead time. Choosing our Exchange Service option will give you the opportunity to first buy the rebuilt item which will be shipped to you in 2 to 3 days. Once the original door closer is replaced, you can send the door closer (sometimes referred to as a "core") unit back where we offer a 40% core refund. The advantage of this program is that you do not have to completely take a door out of service while you wait for the repair work to be done. Once the order is placed for the Exchange, we ship this rebuilt door closer from our stock within 2 - 3 days. Once you receive the unit, you perform the swap and ship back the original door closer. Be sure to retain the tracking number of your shipment and ship the item(s) as Signature Required. Original door closer bodies, "cores", are to be sent back within 30 - days to qualify for the partial core refund. All Rebuilt items are subjected to a Complete Tear Down process: rebuilt using all new parts and first cleaned with cooker soap in a process not unlike cleaning cast iron cookware. All new parts include new O rings, new oil, new paint, etc; and brought back to factory original performance and specifications. Warranty: 1 year. Generally our repair shop keeps rebuilt units on hand. When sending your broken door closer unit, ship only the immediate item to be repaired. Keep all arms, plates, brackets and screws in your possession. Very Important to send back only the "core" and nothing else as those extraneous items cannot be returned. For more information please see video below. Identifying images of door closer bodies, when available, are shown here: * if you are door closer is installed in a push side installation and you are not using a parallel arm bracket but you are using a corner bracket, see the link to the modern yale literature here: Download File Be sure to let us know because they handing of such a closer is the opposite hand from the hand of the door. When performing an exchange or repairing your door closer we very much need to know this information to ensure that you get the proper hand door closer returned to you.

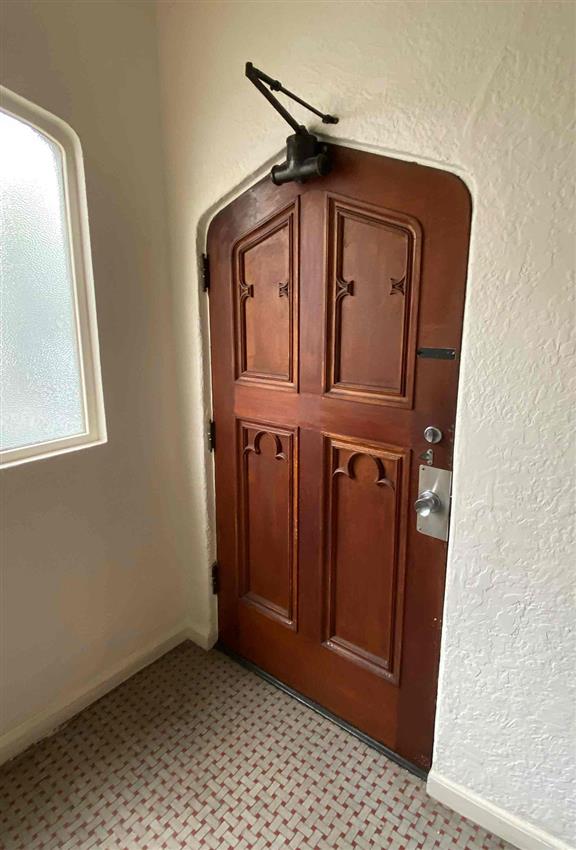

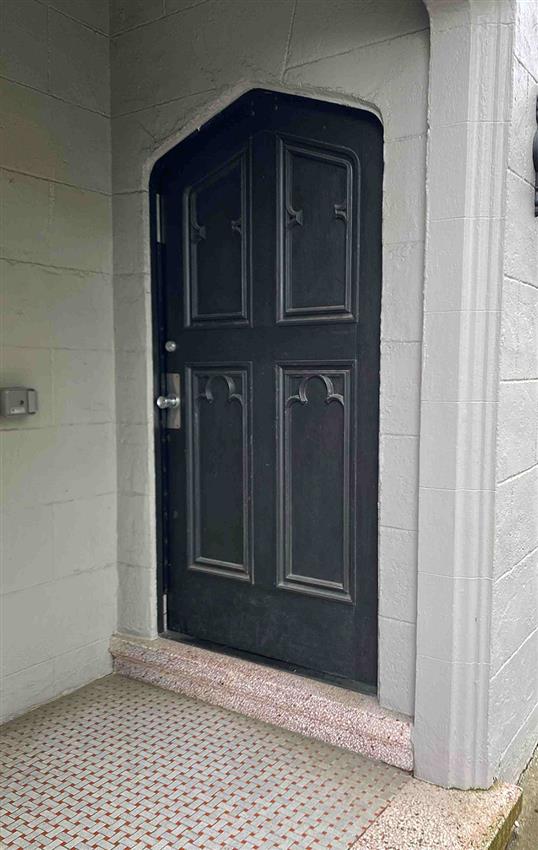

Customer Images:

Questions and Answers

Q: When did LCN quit making traditional potbelly style closers?

A: The LCN "Traditional" Potbelly series closer line was discontinued in 1980.

Unfortunately there is no direct replacement for these old units. Would need to replace with an available current closer based on the application. See here for document to help with choosing the right surface mount closer.

Q: On the LCN D The client called to say that when he tensions the ratchet CW the door acts as if it is opening the door.

Videos:

video 1: Click Here
video 2: Click Here
video 3: Click Here

z What is the probable cause?

A: On the LCN lettered potbelly door closers the ratchet is to be turned:

CCW for RH doors when mounted on the pull side
CW for LH doors when mounted on the pull side
CW for RH doors when mounted on the push side
CCW for LH doors when mounted on the push side

According to the installation instructions here:

Download File

He is winding it the correct way for a left hand door with a corner bracket. What I noticed is when he free spins the sprocket, there should not be that much spinning. I would guess this has a broken spring. A lot of people wind them the wrong way the first time, and then break them, then do it correctly and they don’t work.

Let me know what you need me to do. He should always set them at 3 clicks past tension and that should be his spot for all of them. The probable cause for the door swinging open in this instance is
