LCN Rebuilt 4822

Name: LCN Rebuilt 4822 Rebuilt Door Closer for LCN Model 4822 Electric Auto Equalizer
Brand: LCN
SKU: LCN Rebuilt 4822
Price: 1254.67 USD

LCN Rebuilt 4822 Rebuilt Door Closer for LCN Model 4822 Electric Auto Equalizer

× This image is for a similar product but it will differ in size, color and/or other attributes.

LCN Rebuilt 4822 Rebuilt Door Closer for LCN Model 4822 Electric Auto Equalizer

Price: $1,254.67 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

2 - Exchange and will be Returning the Core,Aluminum - 689,Exchange Service - Ships in 2-3 days

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Rebuilt Door Closer for LCN Model 4822 Pneumatically Powered Auto Equalizer

Features:

Rebuilt Door Closer for LCN Model 4822 Electric Auto Equalizer
Pneumatically Powered low-energy power operator
Provides easy access for people with disabilities, the elderly or the frail
Designed primarily for manual opening applications that occasionally required automatic opening
Digital control box
Utilizes a 10,000,000 cycle heavy duty door closer
On-board diagnostics
On-board power supply
Factory-default memory
Plug-and-play connections
No destruct feature
No guard rails or safety mats required
UL and cUL listed with standard arm for self-closing doors and meets the provisions of
- ANSI standards A117.1, A156.19
- The Americans With Disabilities Act
Standard, top jamb (pull side) mounted 4630 series closer shipped with
- single lever (standard) arm,
- metal cover, standard track
- wood and machine screw
Non-sized cylinders for interior doors to 4'0" and exterior doors to 3'0"
Non-handed for either right or left swinging door
Has easily accessible switches to provide on/off and continuous hold open functions
Control module provides all timing and sequential door functions, electric strike controls and adjustments for opening speed and force
The Select Finish option above is where you can instruct us what finish to ship the door closer back to you as. Keep in mind that it may not match the rest of accessory Hardware that you already will have such as an arm or a drop plate. Our rebuild shop will also repaint your accessories for an additional charge. Select these options above. If you require the repainting of an item not listed above, please reach out to us for a quote.

Cut Sheet

Rebuilt Door Closer for LCN Model 4822 Electric Auto Equalizer

(Click to Enlarge)

Customer Unit Repair and Exchange Service Program Details:

We feature two programs for handling your door closer repair and replacement needs.
Choosing our Repair Service is where you complete checkout through the website or over the telephone. We will email you the address to where your door closer body is to be sent to. Be sure to retain the tracking number of your shipment and ship the item(s) as Signature Required. We will receive the package, complete the repair and rebuild process and ship back the same model door closer. The door closer we send is usually not the exact unit you will ship to us. If you want us to return your exact unit, simply indicate this in the comment field. This usually adds 1-week to the shipping lead time.
Choosing our Exchange Service option will give you the opportunity to first buy the rebuilt item which will be shipped to you in 2 to 3 days. Once the original door closer is replaced, you can send the door closer (sometimes referred to as a "core") unit back where we offer a 40% core refund. The advantage of this program is that you do not have to completely take a door out of service while you wait for the repair work to be done. Once the order is placed for the Exchange, we ship this rebuilt door closer from our stock within 2 - 3 days. Once you receive the unit, you perform the swap and ship back the original door closer. Be sure to retain the tracking number of your shipment and ship the item(s) as Signature Required. Original door closer bodies, "cores", are to be sent back within 30 - days to qualify for the partial core refund.
All Rebuilt items are subjected to a Complete Tear Down process: rebuilt using all new parts and first cleaned with cooker soap in a process not unlike cleaning cast iron cookware. All new parts include new O rings, new oil, new paint, etc; and brought back to factory original performance and specifications.
Warranty: 1 year.
Generally our repair shop keeps rebuilt units on hand.
When sending your broken door closer unit, ship only the immediate item to be repaired. Keep all arms, plates, brackets and screws in your possession. Very Important to send back only the "core" and nothing else as those extraneous items cannot be returned.
For more information please see video below.

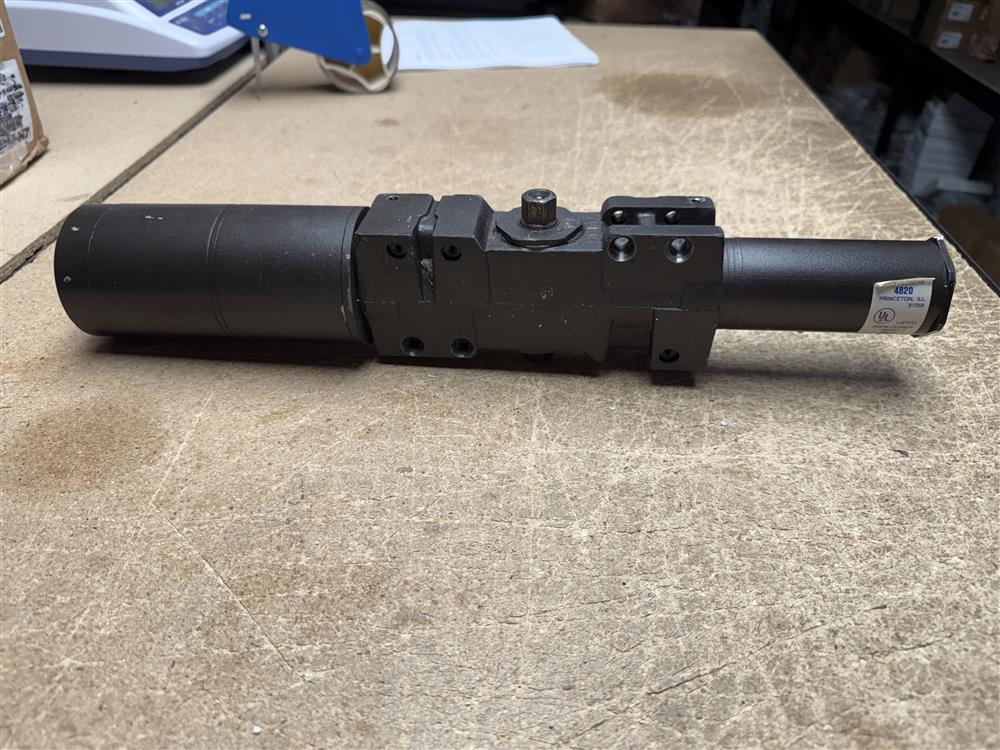

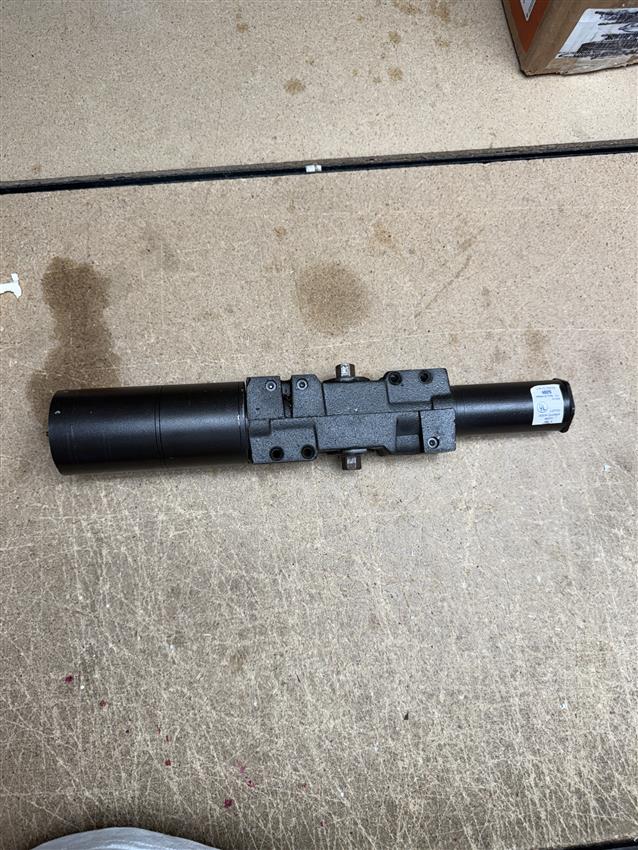

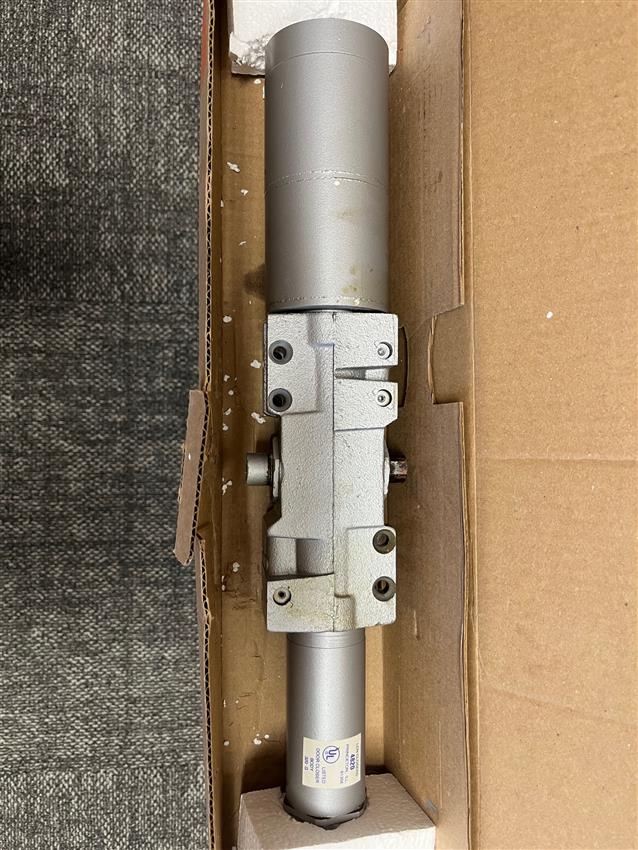

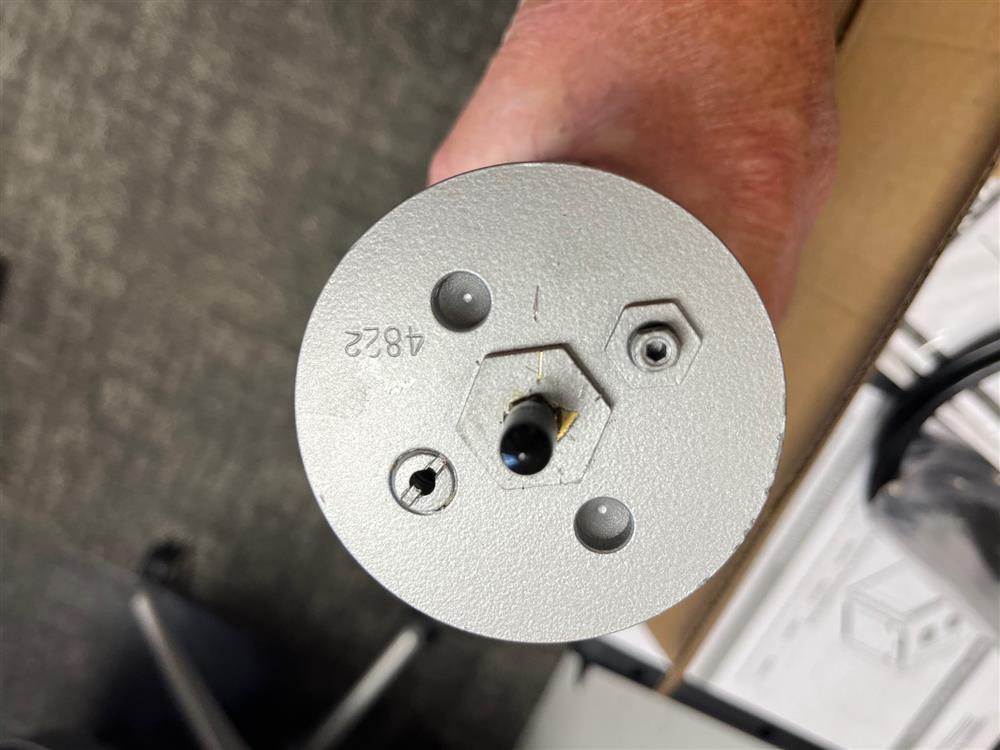

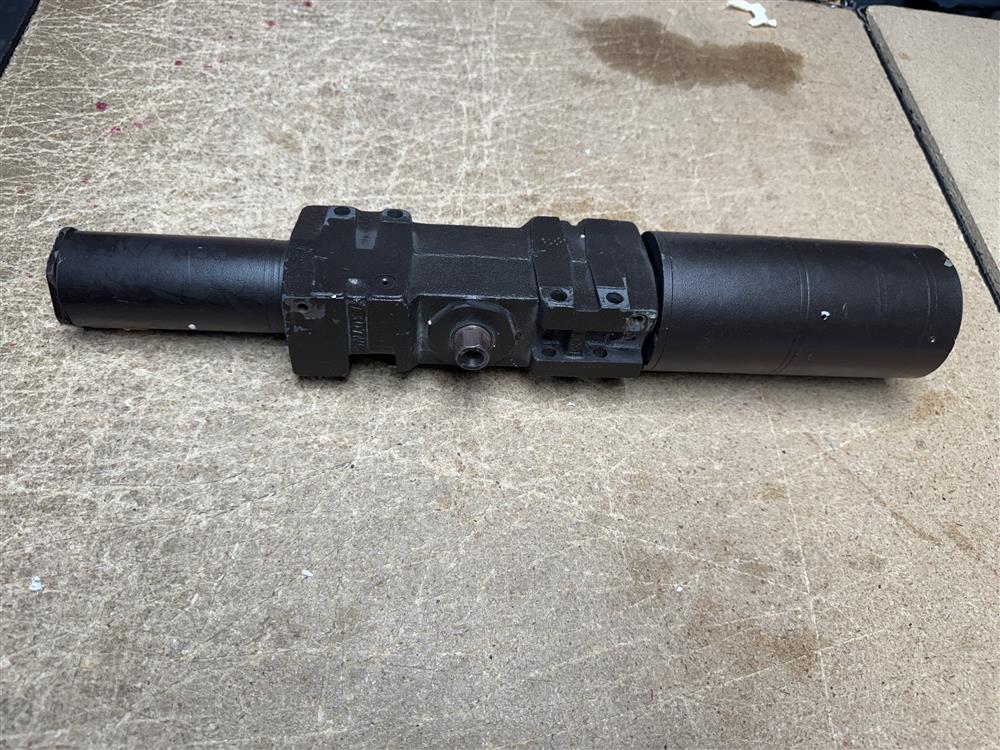

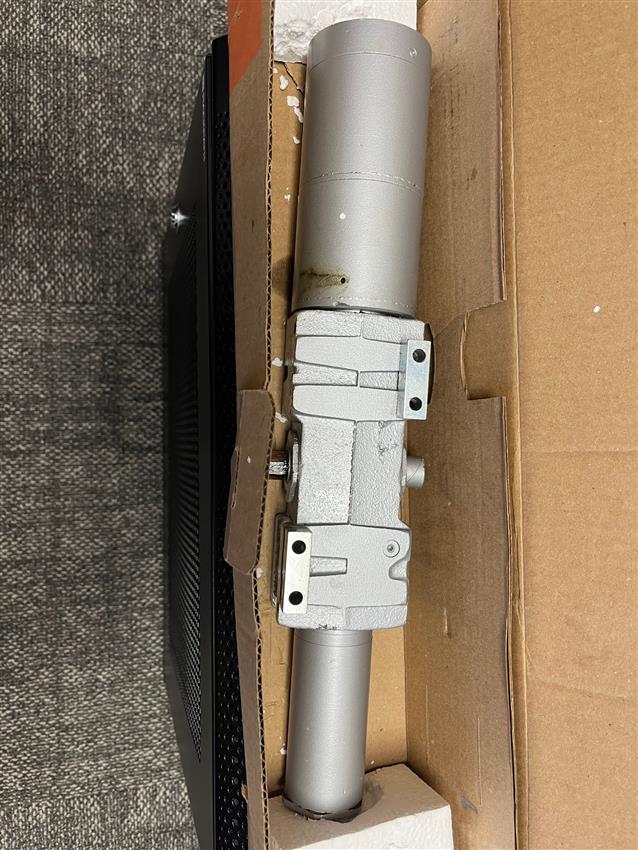

Identifying images of door closer bodies, when available, are shown here:

Video Detail Page

Customer Images:

Questions and Answers

Q: is this the lcn 4822-3971 cylinder?

A: This repair or exchange service would indeed be the equivalent of the LCN 4822-3971 cylinder, although we do not give it this full part number because this is not a brand new item.

If you were to purchase the LCN 4822 cylinder only direct from us as a brand new manufacturers original item it would indeed be the 4822-3971 as seen here:
