LCN Rebuilt 204

Name: LCN Rebuilt 204 Rebuilt Overhead Concealed Door Closer for LCN Model 200 Series
Brand: LCN
SKU: LCN Rebuilt 204
Price: 1057.81 USD

LCN Rebuilt 204 Rebuilt Overhead Concealed Door Closer for LCN Model 200 Series

× This image is for a similar product but it will differ in size, color and/or other attributes.

LCN Rebuilt 204 Rebuilt Overhead Concealed Door Closer for LCN Model 200 Series

Price: $1,057.81 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 2-3 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


Rebuilt 204 Rebuilt Overhead Concealed Door Closer for LCN Model 200 Series

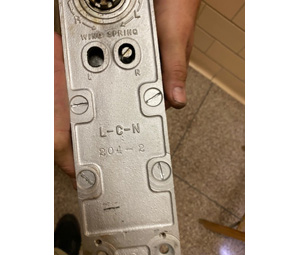

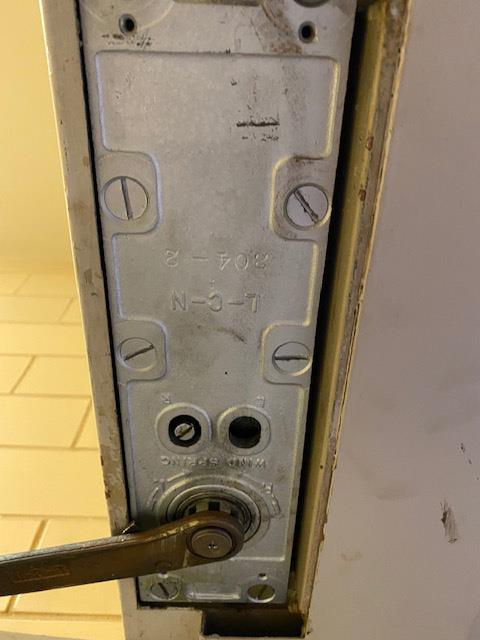

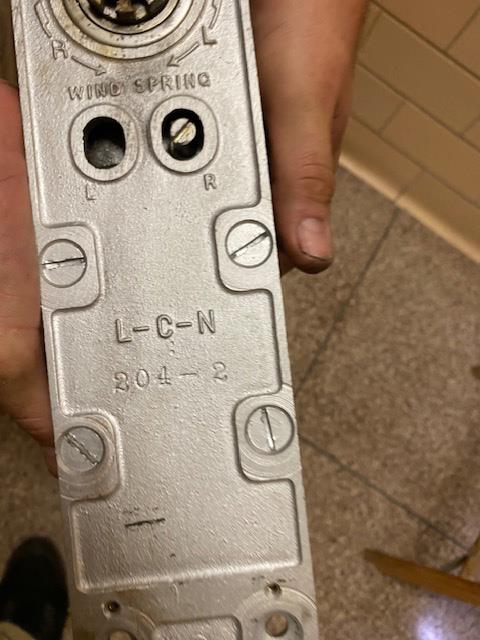

Features: Single Acting, for Doors Hung on Butts Handed Sized Spring (4-6) With Regular Arm The Model 200 series model number will be identifiable by markings on the closer body The Select Finish option above is where you can instruct us what finish to ship the door closer back to you as. Keep in mind that it may not match the rest of accessory Hardware that you already will have such as an arm or a drop plate. Our rebuild shop will also repaint your accessories for an additional charge. Select these options above. If you require the repainting of an item not listed above, please reach out to us for a quote.	Cut Sheet
Customer Unit Repair and Exchange Service Program Details: We feature two programs for handling your door closer repair and replacement needs. Choosing our Repair Service is where you complete checkout through the website or over the telephone. We will email you the address to where your door closer body is to be sent to. Be sure to retain the tracking number of your shipment and ship the item(s) as Signature Required. We will receive the package, complete the repair and rebuild process and ship back the same model door closer. The door closer we send is usually not the exact unit you will ship to us. If you want us to return your exact unit, simply indicate this in the comment field. This usually adds 1-week to the shipping lead time. Choosing our Exchange Service option will give you the opportunity to first buy the rebuilt item which will be shipped to you in 2 to 3 days. Once the original door closer is replaced, you can send the door closer (sometimes referred to as a "core") unit back where we offer a 40% core refund. The advantage of this program is that you do not have to completely take a door out of service while you wait for the repair work to be done. Once the order is placed for the Exchange, we ship this rebuilt door closer from our stock within 2 - 3 days. Once you receive the unit, you perform the swap and ship back the original door closer. Be sure to retain the tracking number of your shipment and ship the item(s) as Signature Required. Original door closer bodies, "cores", are to be sent back within 30 - days to qualify for the partial core refund. All Rebuilt items are subjected to a Complete Tear Down process: rebuilt using all new parts and first cleaned with cooker soap in a process not unlike cleaning cast iron cookware. All new parts include new O rings, new oil, new paint, etc; and brought back to factory original performance and specifications. Warranty: 1 year. Generally our repair shop keeps rebuilt units on hand. When sending your broken door closer unit, ship only the immediate item to be repaired. Keep all arms, plates, brackets and screws in your possession. Very Important to send back only the "core" and nothing else as those extraneous items cannot be returned. For more information please see video below. Identifying images of door closer bodies, when available, are shown here:

Customer Images:

Questions and Answers

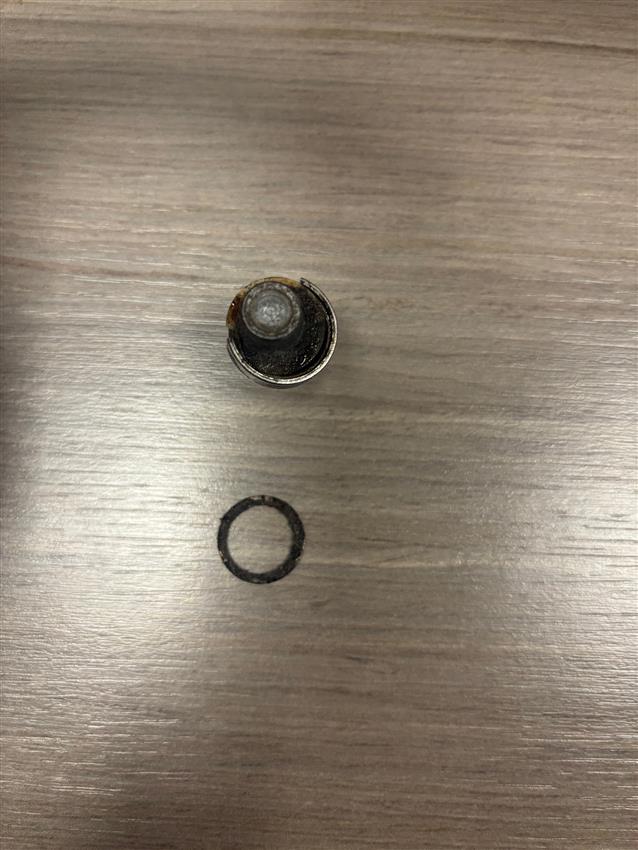

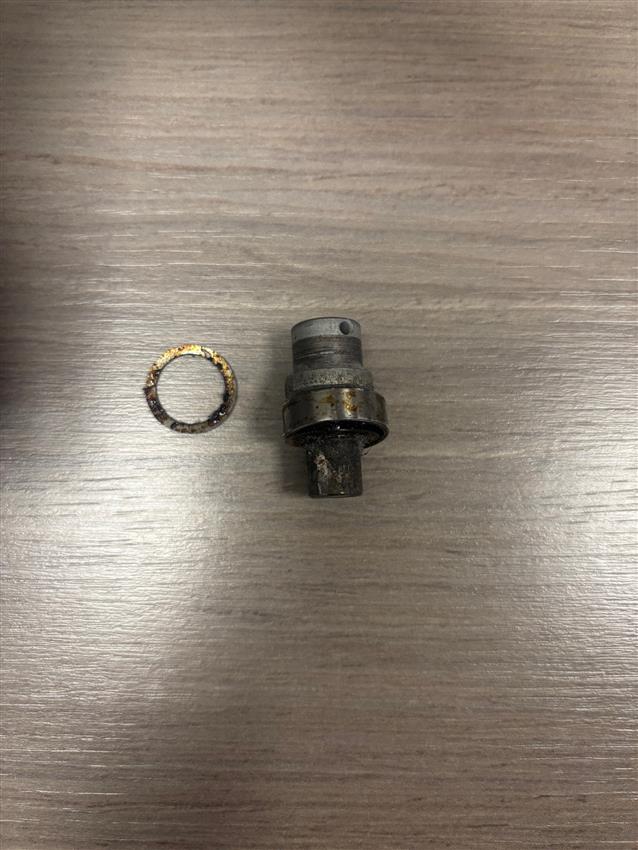

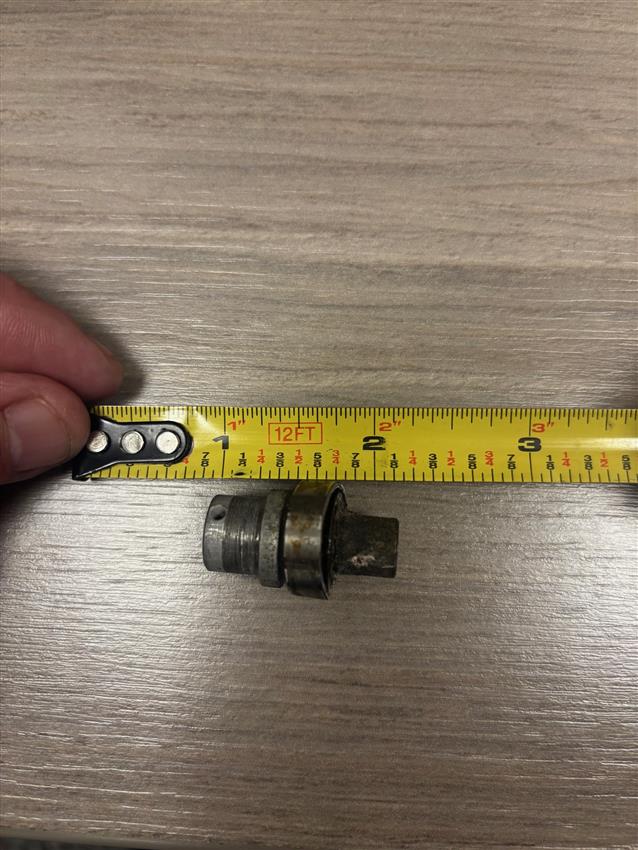

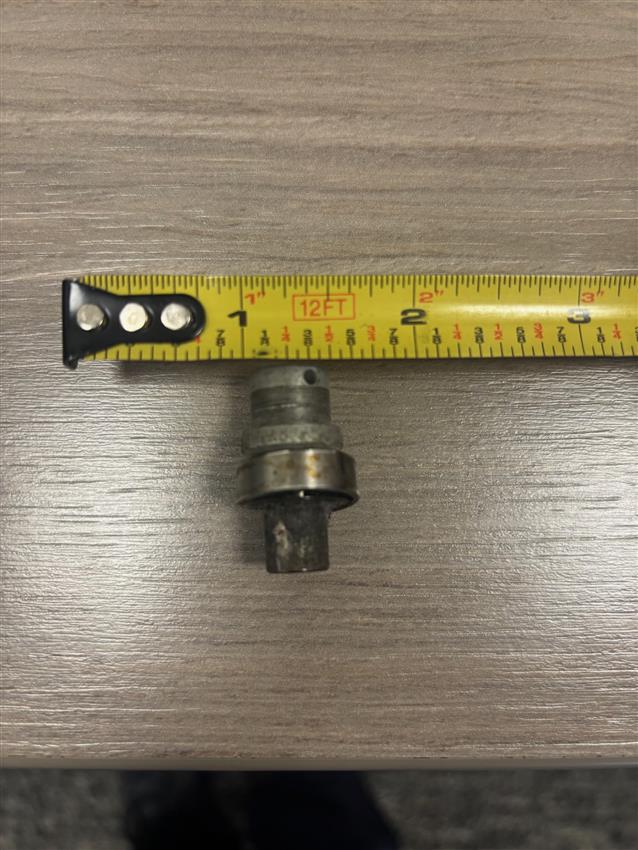

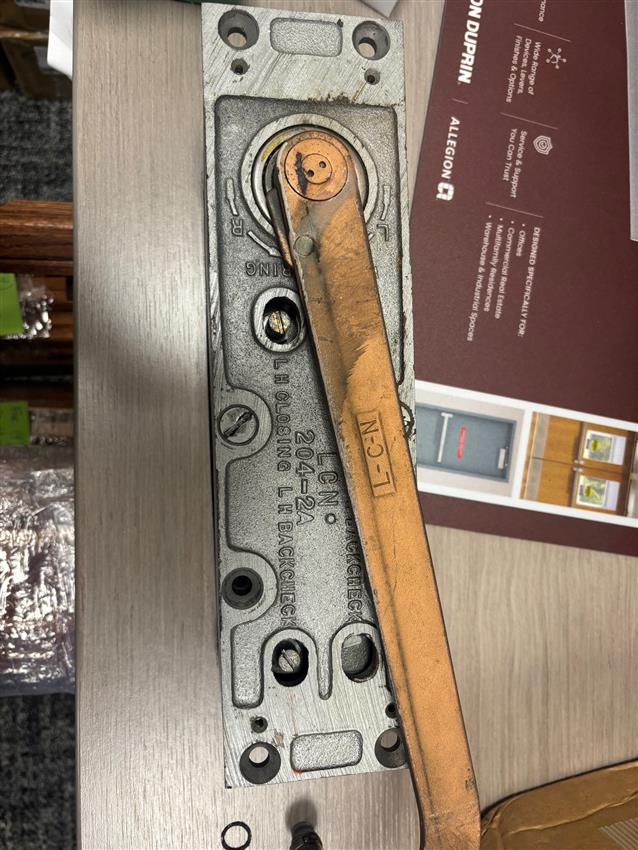

Q: We are looking for the roller that has the cotter pin on it, so when I tried a LCN 2034 roller there was no way to attach the roller to the arm and I did not check if the roller fit into the track, as the track is in the door that is on-site. So, if we had the closer rebuilt, would you then supply a new roller to make this closer in question functional?

A: While I know that we can rebuild the door closers I also unfortunately know that I do not have that arm roller. The 204 is a discontuned door closer with no remaining avaiable parts.

But all may not be lost. My suggestion is that you experiment with different rollers as seen in the attached guide roller identification chart here:

Download File

I have hd a client report back that they used a roller from the 2034 with a C-clip (the client called them Jesus clips but I have no idea why) and according to the client

that worked, kinda.

The client added:

What we should have done is sanded down the hole in the arm about a 1/16” so that the C-clip could seat all the way around the roller. This working for now.

Please report back to us if you make this type of modification as we would like to learn about your success/failure.
