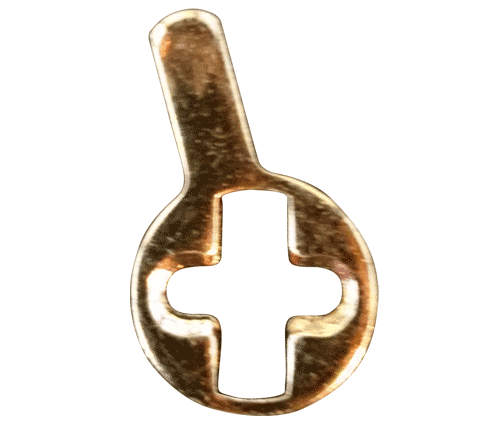

Kaba Ilco 863U-00-10

A: You have a genuine Schlage FSIC cylinder, need to put it into a Sargent 8800 device. The Sargent 41 comes with the offset cam. The problem is that Schlage does not make an offset cam and Sargent does not make a cylinder to accept Schalge FSIC. This is a problem that I am at a loss to solve, short of having a custom fabrication company "manufacturer" cams for you - sorry.

A: The only option I can come up with for this solution is as follows:

I will modify your 50 existing Schlage FSIC mortise cylinders, make new custom cams and IC core pins and assemble back to work as required.

Is this an option you might be interested in?

Please let us know if there is anything else we can help with.

A: Assuming you are installing this corbin russwin cylinder into a sargent 8200 series mortise lock you would want the Corbin Russwin A07 cam (according to CR tech support) which can be seen at the link here:

Download File

A: Unknown as I have never tried it though you can likely file etc to "make" it fit. Why not just order the Kaba Ilco 7186EA7 ?

See pages 6 & 7 here:

Click Here
