Jackson 312085L37628

Name: Jackson 312085L37628 CRL Jackson® 2085 Concealed Vertical Rod with Top Latch 36" Push Pad Exit Device - Left Hand Reverse Bevel, Satin Aluminum
Brand: Jackson
SKU: Jackson 312085L37628
Price: 753.12 USD

Jackson 312085L37628 CRL Jackson® 2085 Concealed Vertical Rod with Top Latch 36" Push Pad Exit Device - Left Hand Reverse Bevel, Satin Aluminum

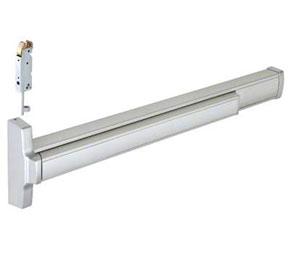

× This image is for a similar product but it will differ in size, color and/or other attributes.

Jackson 312085L37628 CRL Jackson® 2085 Concealed Vertical Rod with Top Latch 36" Push Pad Exit Device - Left Hand Reverse Bevel, Satin Aluminum

Price: $753.12 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Orlando, FL Qty: 2

Denver, CO Qty: 1

Seattle, WA Qty: 1

Los Angeles, CA Qty: 3

Dallas, TX Qty: 2

Union City, CA Qty: 1

Atlanta, GA Qty: 7

Secaucus, NJ Qty: 2

Moorestown, NJ Qty: 2

Las Vegas, NV Qty: 1

Houston, TX Qty: 1

Miami, FL Qty: 1

Carolina, SC Qty: 1

Standard Lead Time - For quantities beyond the "In Stock" levels available above, please reach out to our sales department for a quoted estimated lead time.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

312085L37628 CRL Jackson® 2085 Concealed Vertical Rod with Top Latch 36" Push Pad Exit Device - Left Hand Reverse Bevel, Satin Aluminum

CRL Jackson® Model 2085 Concealed Vertical Rod Panic Exit Devices are UL Listed - Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability Suitable for use with narrow, medium and wide stile aluminum doors Feature dual point latching with a top latch and bottom hex bolt, concealed easy-to-use push button dogging, "Soft Touch" smooth quiet action push pad, and quick and easy installation They are available in Dark Bronze and Satin Aluminum anodized finishes Standard devices come in two lengths for 36" and 48" (914 mm and 1.22 m) wide doors, and can be cut down to custom fit an opening Standard height 84" (2.13 m). For doors over 84" tall order Top Rod Extender 301347A for 12" (305 mm) or 301348A for 24" (610 mm) Devices may be ordered with optional cylinder dogging, which uses a 1-1/8" (29 mm) Mortise Cylinder such as DC7185SCKASC - ordered separately Keyed entry may be provided by ordering and installing a standard 1" (25 mm) mortise cylinder such as DL2170SCKDA with AR MS type cam, along with a Cylinder Mounting Pad such as 30821J628 Keyed access is also available with 8500LV022628 Jackson Outside Lever Trim Type: Top Latch Handing: Left Hand - Reverse Bevel Finish: Satin Aluminum For 36" (914 mm) Door	Product Page Installation Instructions Top Latch Install Instructions


Handing Chart
