IVES 7256

Name: IVES 7256 Pivot Set
Brand: Ives
SKU: IVES 7256
Price: 603.03 USD

IVES 7256 Pivot Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $603.03 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 2-3 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

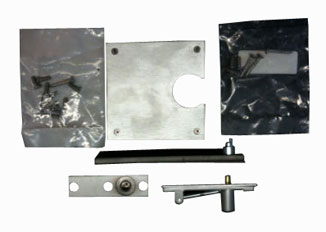

IVES 3/4" CENTER HUNG PIVOT SET

Instructions

Polished Stainless Steeel finish only.

Center hung pivot set consisting of mortised cement case mounted 7256 Bottom Pivot and a head frame mounted 7256 Top Pivot.

Door Thickness minimum 1-3/4" (44mm).

Radius Stop (A) to clear heel edge of door.

Pivot Distance (B) 1-3/4" (44mm) minimum from jamb to centerline of pivot pin. Radius heel edge of door, 1-5/8" (41mm) minimum recommended.

Clearance from bottom edge of door to the floor mounting surface is adjustable from 3/16" (5mm) to 3/4" (19mm) by varying the depth of the mortise (C) in the bottom rail of the door, refer to Table D. Over 3/4" (19mm) from the door to floor mounting surface, consult factory.

Maximum load 600 pounds (272 kg.)

Meets ANSI/BHMA Grade 1.

Vertical Adjustment based on mortise preparation in bottom rail of the door. Refer to Table D.

TABLE D
Clearance	Depth of Mortise
3/16" (5 mm)	1-3/16" (30 mm)
3/8" (10 mm)	1" (25")
1/2" (13 mm)	7/8" (22 mm)
5/8" (16 mm)	3/4" (19 mm)
3/4" (19 mm)	5/8" (19 mm)
