Q: do you deliver to uk?, thanks.
A: Absolutely - we ship Internationally every day.
Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: whats the bolt spacing center to center?
A: The center to center spacing on the bolts for the
Irwin T8D Replacement Jaw Plates - Pair Jaw Plates (8") & Screws for #8ZR Mechanics Vise
is 5”
Q: Will these replacement jaws fit my Wilton 1780?
A: I do not sell jaws for your unit but I'm not aware of any of the jaws for the Record/Irwin vise having 4” centers.
What about the idea of ordering the T8D, and then simply re-drilling the stepped hole? i've never done this before and I'm not sure if it will work but I imagine that it would.
Q: My only worry is at what strength is it hardened to because they are drilled before the hardening process, would hate to crack it.
A: That is a valid worry and unfortunately I cannot answer that question.
Q: Do you have a technical drawing of these jaws? I want to know the hole-to-hole of the screw at jaw & what M (screw metric size) does the screw uses?
A: I do not have a technical drawing of the draw set but I have the video as seen here:
Click Here
In which I detail the dimensional properties that Im able to come up provide.

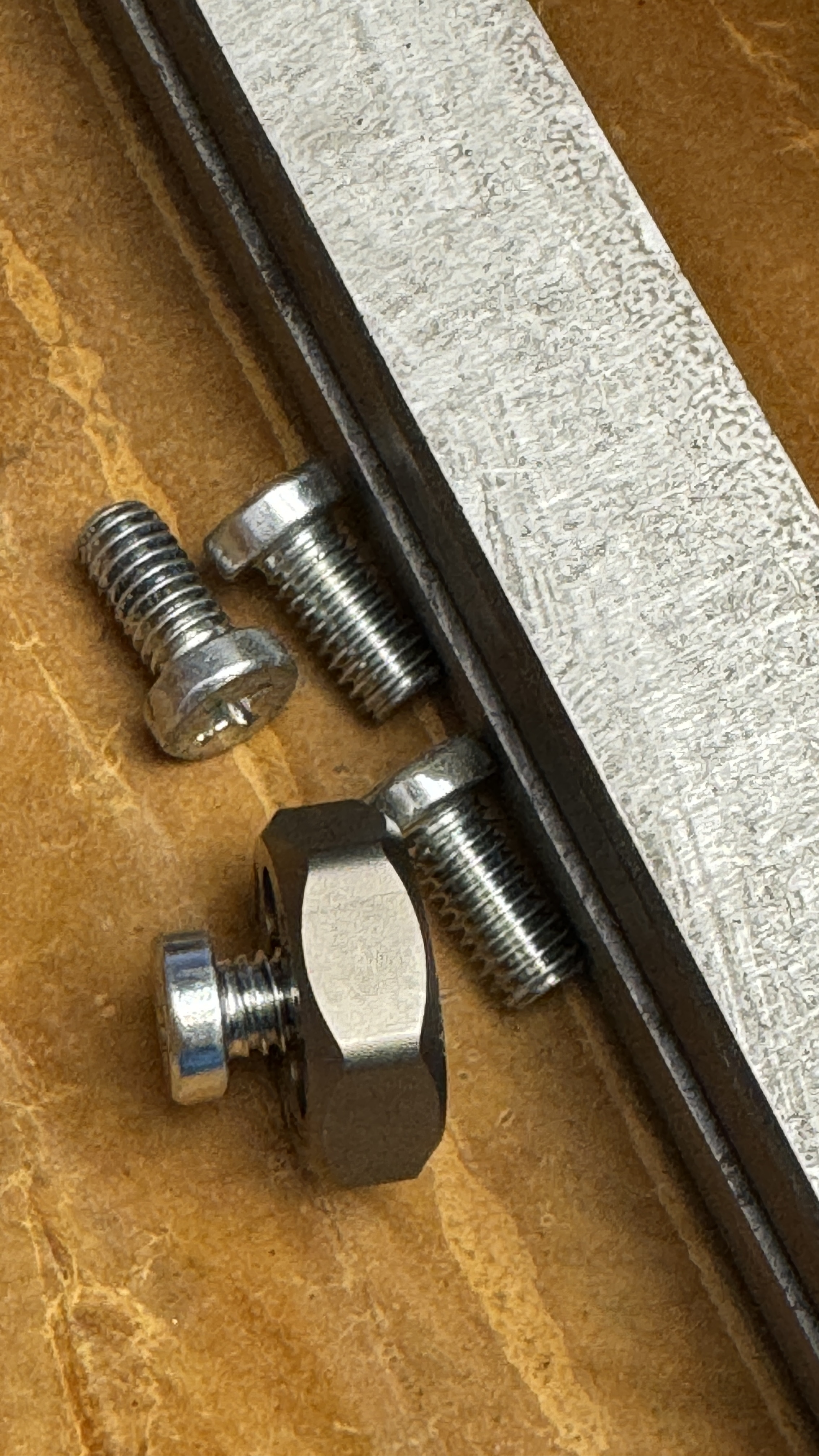

Q: I have lost the bolts for my replacement 8" jaws...do you know what size they are?

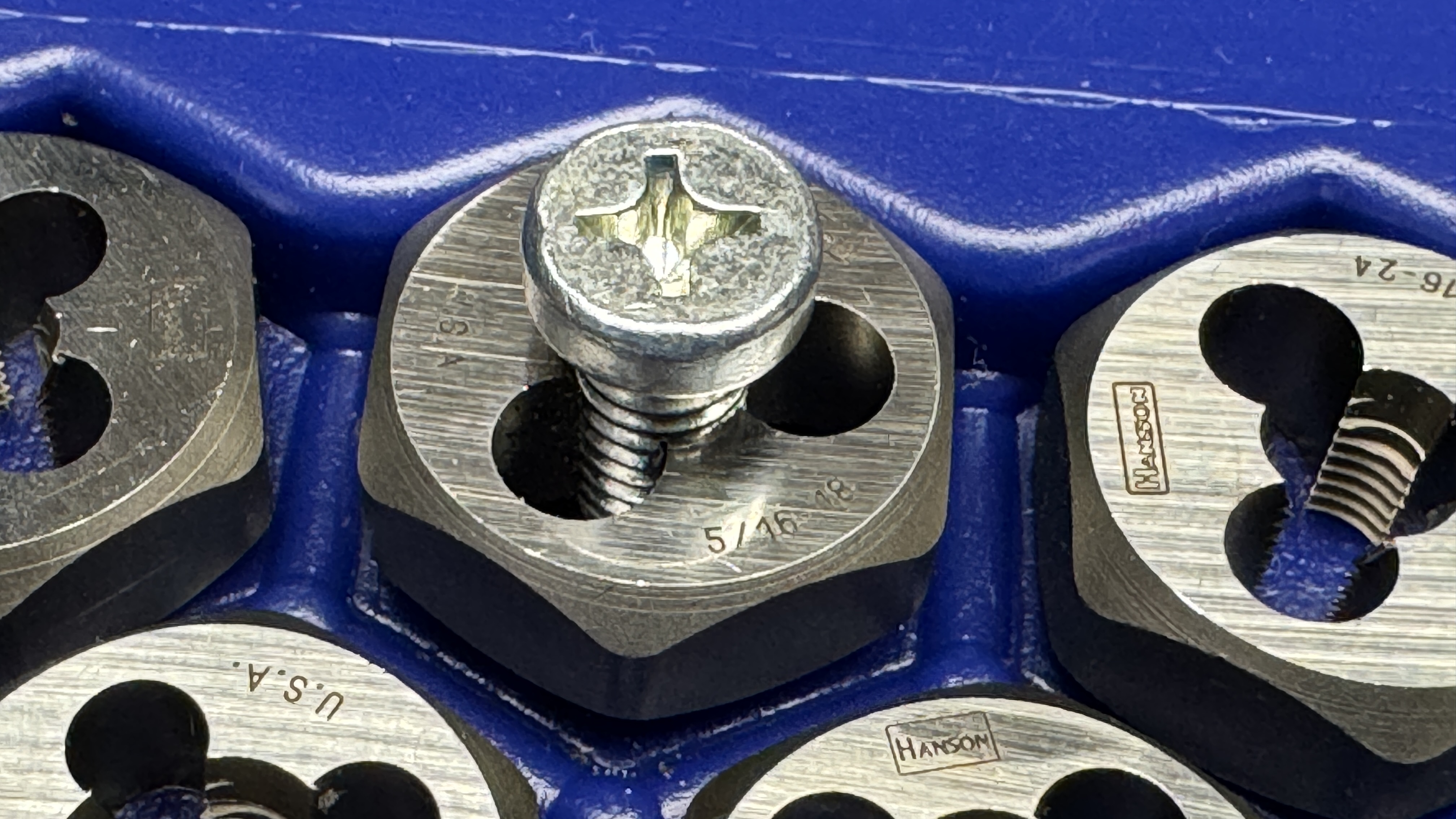

A: 5/16 x 18 is thread type on the bolt for Irwin T8D Replacement Jaw Plates - Pair Jaw Plates (8") & Screws for #8ZR Mechanics Vise
as seen here:
View Image
and here:
View Image
