Irwin T5D Replacement Jaw Plates - Pair Jaw Plates (5") & Screws for #5 Mechanics Vise

enlarge
enlarge

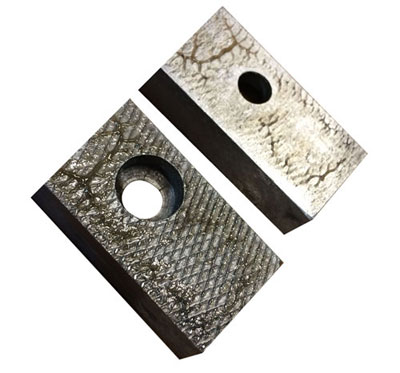

× This image is for a similar product but it will differ in size, color and/or other attributes.
Irwin T5D Replacement Jaw Plates - Pair Jaw Plates (5") & Screws for #5 Mechanics Vise
Main ImageVideo Review Irwin T5D
More from Irwin
Price: $18.15 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 3
For quantities beyond the "In Stock" above, the item(s) ships in 14 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
T5D Replacement Jaw Plates - Pair Jaw Plates (5") & Screws for #5 Mechanics Vise

Product Info:
  • Record® Mechanics Vises Accessories - T5D Replacement Jaw Plates
  • Length: 127 mm (5.00")
  • Height: 25.4 mm (1.00")
  • Width: 12.7 mm (0.50")
  • Fixing-hole diameter: 8.3 mm (0.33")
  • Distance between fixing-hole centres: 68 mm (2.687")
  • Distance from bottom of jaw-plate to fixing-hole centre: 11 mm (0.437")
  • Distance from side of jaw-plate to fixing-hole centre: 29 mm (1.156")
  • Includes: Pair Jaw Plates (5") & Screws for #5 Mechanics Vise
  • UPC: 7 34442 00792 0
  • Wt.: 1.4 lbs
  • Case Quantity: 1 Pack
  • Price given per pack.
  • Sold as Pack.
Questions and Answers
Q: I'm trying to see if these vise jaws will fit my vise. Can't get parts for it anymore. I will buy from you if they fit. Can you give me the dimensions of the Irwin T5D jaw plates? I need the length, width, thickness, and center to center distance between the mounting holes. Also please advise what the fastener size is. Thanks
A: Here is the information you have requested:

View Video

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: Hi! Does these fit to Record 35
A: It may. Dimensional properties are provided in the video as seen here:

Click Here

(Required, used to email you once question is answered.)
