Hager 5200-ALM

Grade 1 - Heavy Duty - Door Closer - Aluminum

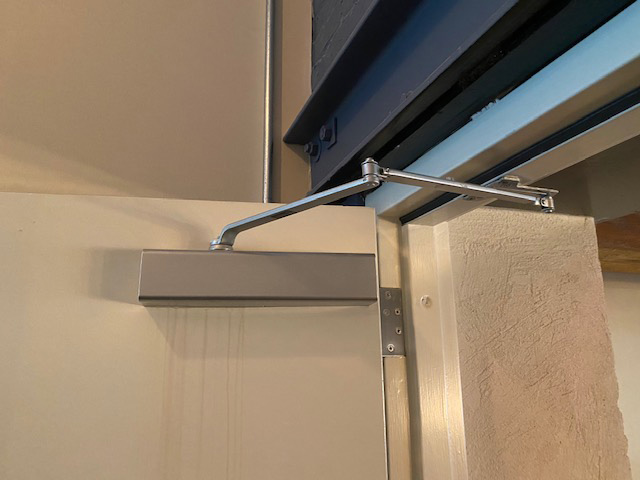

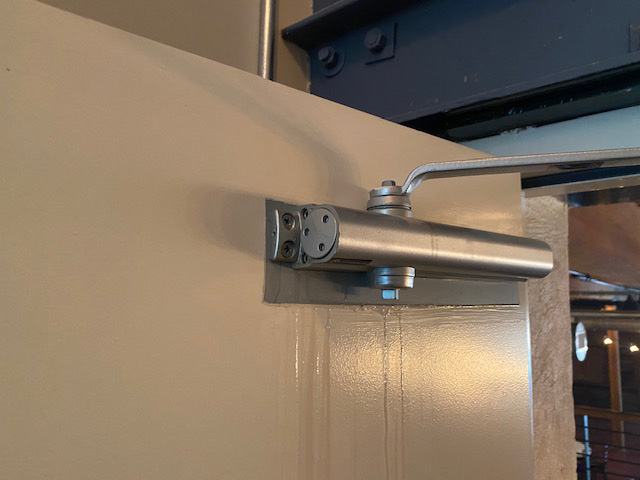

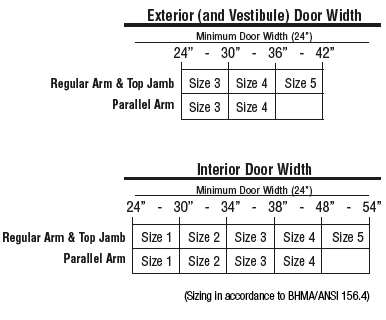

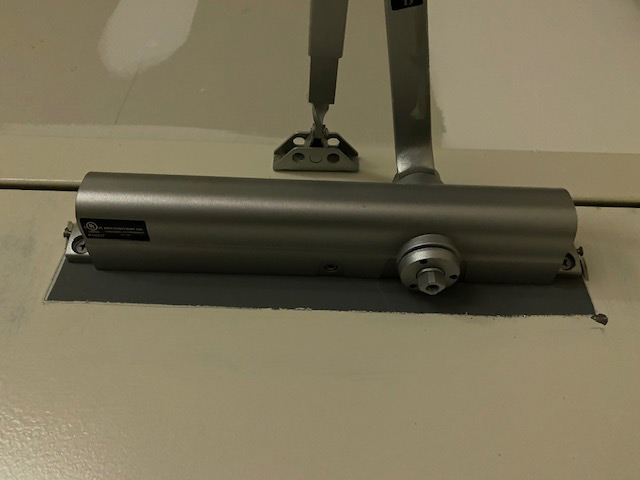

Standard Features and Benefits: Hager Companies offers a variety of surface door closers to meet a wide range of applications and uses. Heavy duty, Grade 1 door closers are ideal for schools, hospitals, and other high-use environments. Surface door closers are easy to install, with only a few holes for the body and the arm, requiring a minimum amount of preparation of the door and frame There are three basic methods of mounting door closers to the door and frame: regular arm, parallel arm, and top jamb mounts. All Hager door closers are supplied standard with a tri-pack for mounting any of the three types of applications. The package includes regular, parallel, and top jamb arm mounts. Regular arm: The regular arm application is used when there is ample room on the top rail of the door and you are not concerned about the arm extending out away from the door. The closer body is mounted on the hinge side of the top rail of the door. The forearm is then mounted to the frame face by a mounting shoe. The arm projects at approximately a 90° angle away from the door. The regular arm mount will make the closer more power-efficient than the parallel arm or top jamb mount. Parallel arm: The depth of the top rail is an important consideration when using this application. The closer body is mounted on the top rail of the door opposite the hinge side of the door. The forearm is mounted by a parallel arm bracket to the underside of the frame. The arm is parallel to the door, which makes it less likely to be damaged and aids in the overall aesthetics. The power efficiency of the closer may be reduced by the mounting applications. Top jamb: This is the preferred method of mounting a closer if you are faced with a narrow rail on a door. The closer body is mounted to the frame face above the door, opposite the door hinge side. The forearm is then mounted to the top rail of the door. The top jamb mount is more power-efficient than the parallel arm application. Specifications: Size: 1-6 adjustable. Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 5 - Standard ADA compliant ANSI A117.1 Accessibility Code UL/cUL Listed for up to 3 hours UL10C Positive Pressure Rated UL10B Neutral Pressure Rated Lifetime warranty Material: Aluminum alloy Cover: Full plastic cover - Standard. Slim line plastic cover - Optional. Full size plated metal cover - Optional Springs: Double heat treated steel, tempered springs.Precision machined, heat treated Steel piston. Valves: Adjustable latching and sweep speed valves Adjustable backcheck valve - Standard Delayed action valve - Optional Handing: Non-Handed Arms & Brackets: Tri-Pack - Regular, Top Jamb, and Parallel Arms - Standard. 15% power adjustment in standard arm for regular and top jamb mount Optional Arms: Hold Open Arm Extra Heavy Duty Hold Open Stop Arm Extra Heavy Duty Stop Arm Extra Heavy Duty Arm Extra Heavy Duty Hold Open Arm Extra Heavy Duty Cushion Stop Arm Extra Heavy Duty Hold Open Cushion Stop Arm Fasteners: Self-reaming, self-tapping wood and machine screws. Sex nuts and bolts. Door Thickness: 1-3/4" (44 mm) - Standard. 1-3/8'' - 2-1/4'' (36 mm - 57 mm) thick door - Optional Finish: Rust inhibiting primer - Standard Notes: Full rack and pinion operation Precision machined, heat treated steel piston Triple heat treated steel spindle .	Template Instructions Mounting Template Installation Instruction Parallel Arm Instalation Instruction Door Sizing Chart How To Order

Parts:

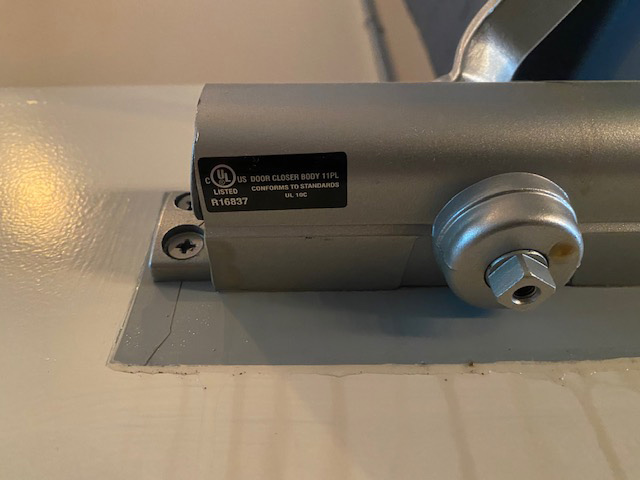

5201 Closer Body Only 5201 Closer Body

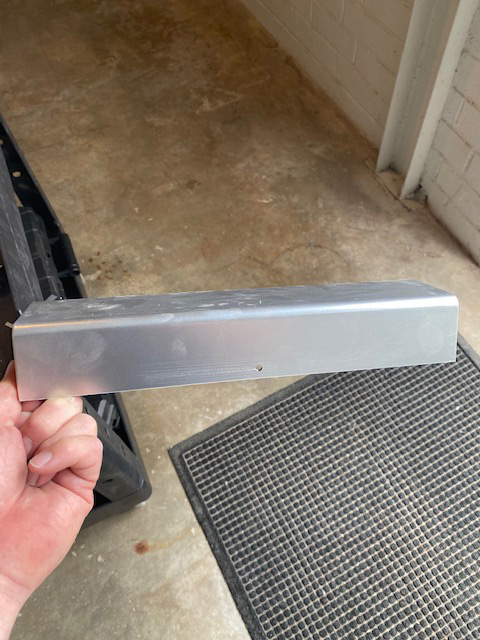

5202 Full Plastic Cover 5202 Full Cover
5203 Main Arm Assembly 5203 Arm Assembly
5204 Standard Screw Pack 5204 Standard Screw Pack

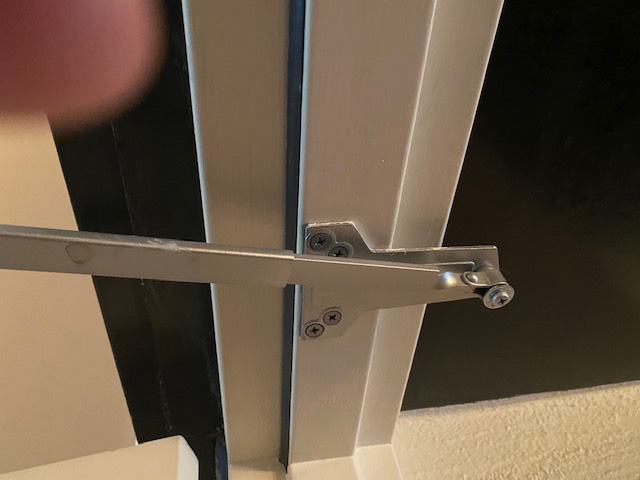

5900 Parallel Arm Bracket 5900 Arm Bracket
5902 SNB Screw Pack Standard 5902 SNB Screw Pack
