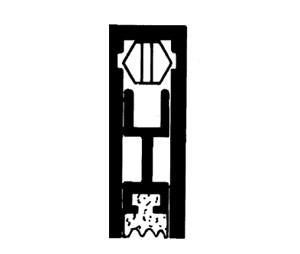

Dorbin 85-1A Ano. 32" Anodized Aluminum Automatic Door Bottom with Neoprene Insert

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Dorbin 85-1A Ano. 32" Anodized Aluminum Automatic Door Bottom with Neoprene Insert
Main ImageVideo Review Dorbin 85-1A Ano. Automatic Door Bottom
More from Dorbin
Price: $245.86 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 3 business days.
Additional Declarations -

Dorbin has put into place extreme price increases and their material has become exceptionally expense and strongly urge you to consider Reese or Pemko as alternates.

1-844-809-3667

Sales
Technical Support
Product Description:

dorbin

logo 85-1A Ano. 32" Anodized Aluminum Automatic Door Bottom with Sponge Neoprene Insert

  • Automatic Door Bottom with Sponge Neoprene Insert
  • Length: 32"
  • Width: 19/32"
  • Heigth: 1 23/32"
  • Material: Aluminum
  • Finish: Anodized
  • Insert: Closed Cell Sponge Neoprene Gasket
  • It is furnished with a closed cell sponge neoprene gasket
  • This door bottom is intended for a surface mount installation
  • Reversible (non- handed)
  • May be trimmed 4" from lock end only
  • Maximum drop is 7/8"
  • Fire Rated: Door Bottom Seals for use on wood or steel doors in up to 3-hour locations
  • Drilled for and supplied with screws for instalation. Available undrilled - please contact our sale department
  • Application:
    • Commercial Doors
    • Interior and Exterior Weatherstripping Applications
  • Extra's:
    • Low Closing Force: This door bottom can be ordered in a Low Closing Force model
    • Special Fasteners: #6 x 1/2" Pan Head Phillips Self Drilling Zinc Plated screws
      For any of these Special Extras, please contact or sales department directly.

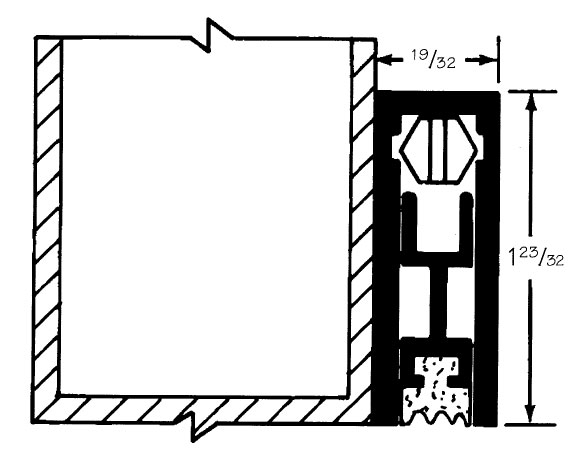

Dimensions
Dorbin
Questions and Answers
Q: We have a couple of wood French doors to the outside for which Id like to use an automatic door bottom sealer. They are 32 inch (measure 31 7/8 inch) 1 5/8 inch thick. Ive seen your videos of the Pemko and Dorbin. What do you recommend?
A: I like the standard duty surface mounted Dorbin as seen here:

Click Here

Please let us know if there are any specific questions we can asssit with.

Q: I’m still trying to find a solution to reduce the height of our threshold because the current solution makes it difficult to close the door, and the vinyl keeps ripping. We are currently using the Pemko 208AV, and with the threshold base and vinyl insert, it’s ½” in height. I’m looking for a solution that will reduce the height by roughly 1/8”. Based on your recommendation, I tried the Dorbin 85-1A Ano. 32" and it didn’t work for us. Is there another solution you can recommend? Warm regards, Bob
A: Bob regarding the Dilemma in terms of the threshold I would not have recommended the addition of an automatic door bottom to seal off the bottom of the door when the problem is inherently different.

The 208 is the threshold and you're saying that that item is one eighth of an inch too tall as it stands. It seems to me the only way to mitigate the problem is to either reduce the threshold height by one eighth of an inch, and as we have discussed in the past there are no alternate inserts for the 208 threshold that will allow you to achieve a one eighth of an inch shorter height.

Is it possible that you can alter the net height of the door and give yourself the additional one eighth of an inch clearance required for proper and smooth operation?
