DOR-O-MATIC Concealed Vertical Rod Device EL1690 EO


DOR-O-MATIC EL1690 EO

DOR-O-MATIC Concealed Vertical Rod Device EL1690 EO


Manufacturer: Dor-O-Matic
Price: $958.86






  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Standard - ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
More from Dor-O-Matic
This item ships from MA.

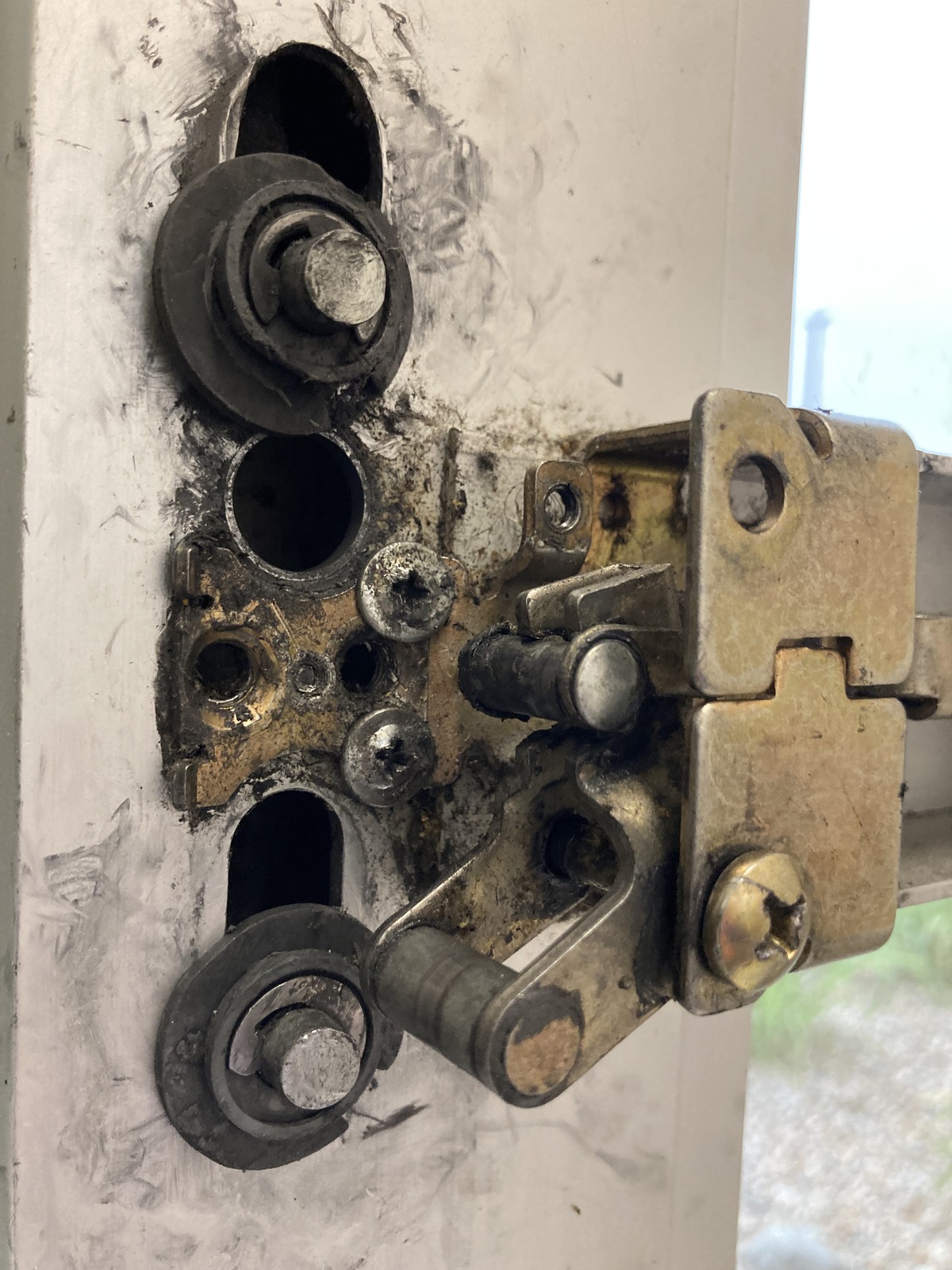

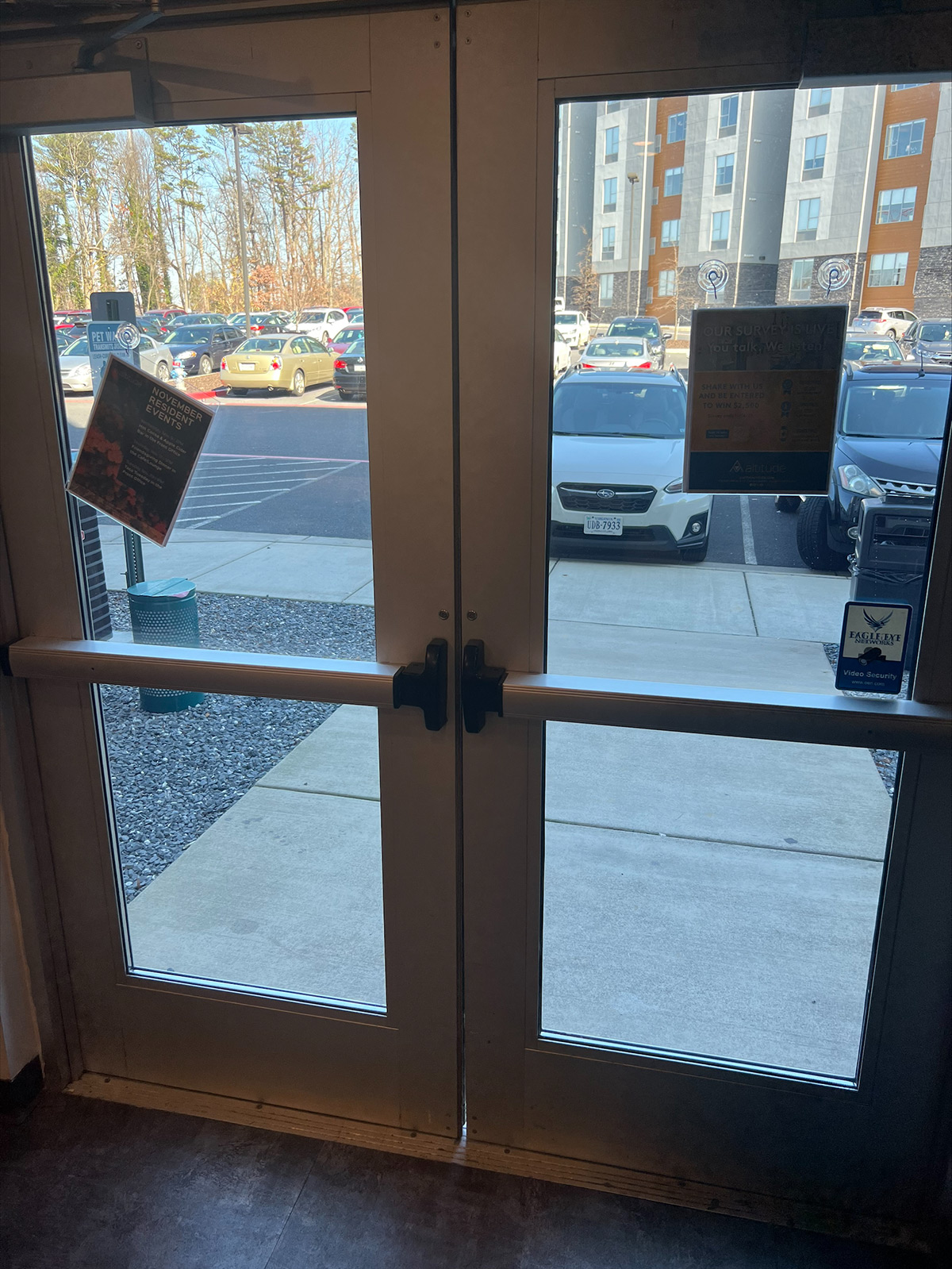

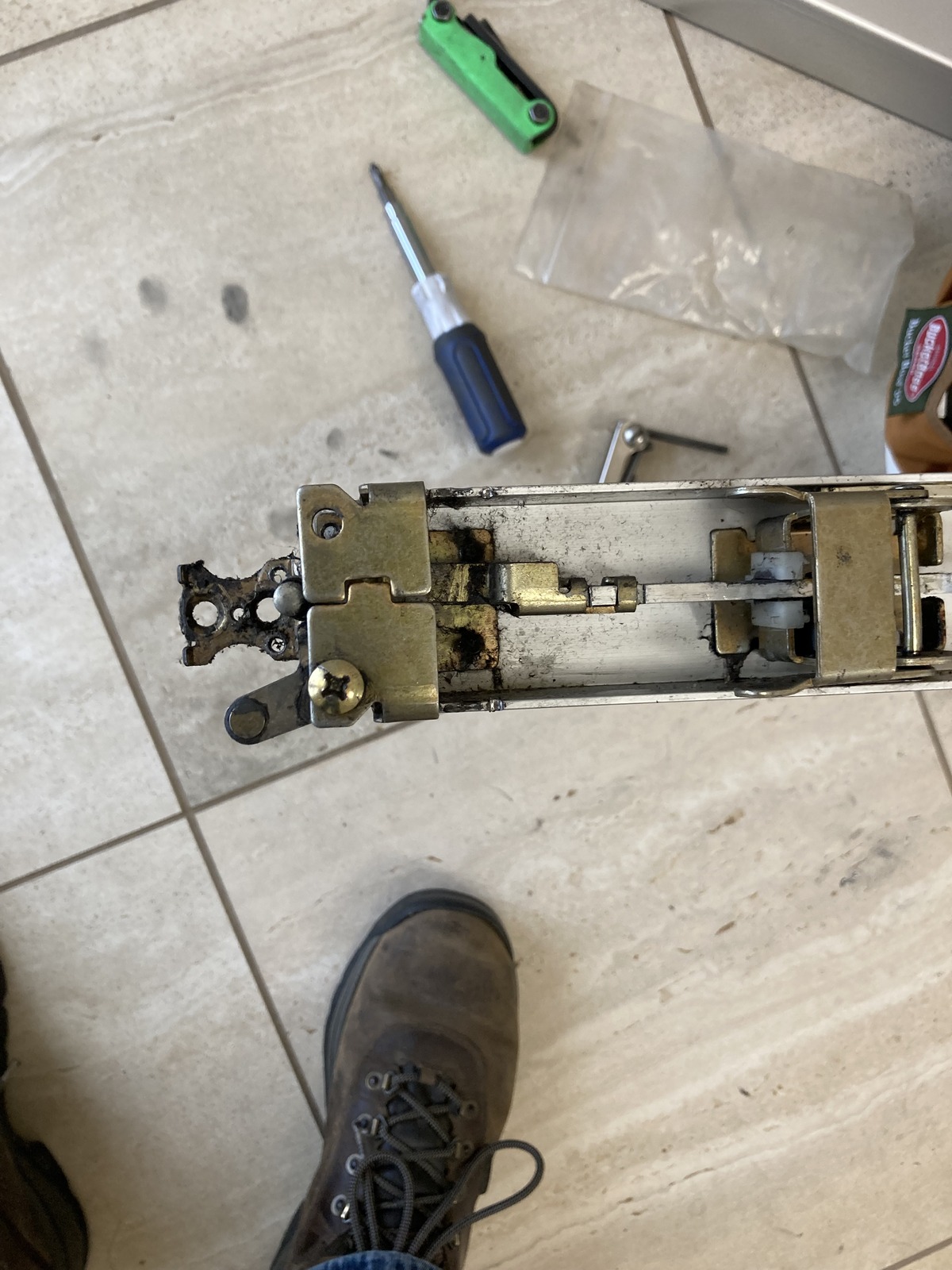

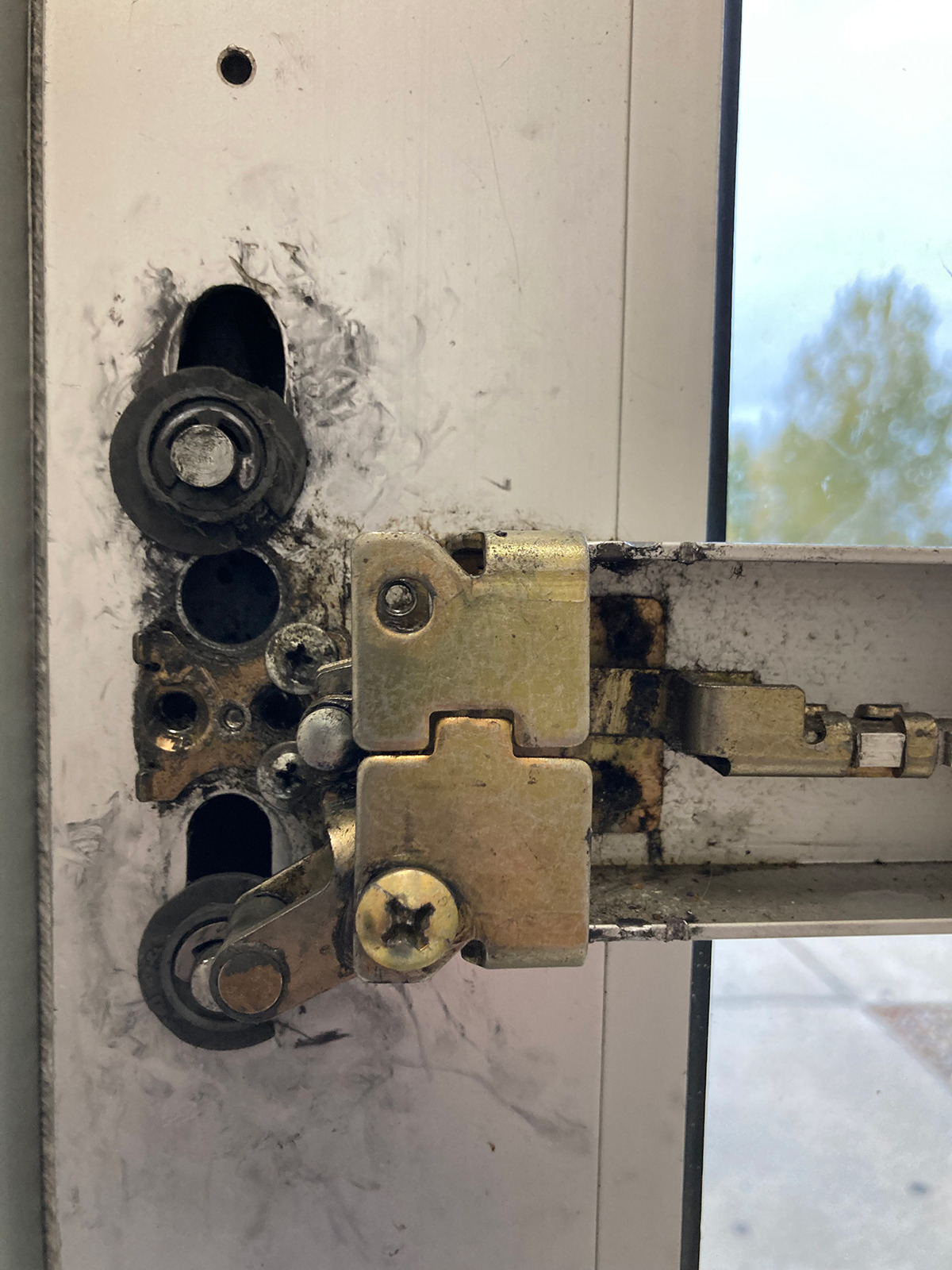

Dor-O-Matic Concealed Vertical Rod Device EL1690 EO
The ELEL1690 EO Dor-O-Matic’s heaviest device, Grade 1 offers a clean appearance in a pushpad style device, built with rugged steel operating mechanisms and durable aluminum push bars and end caps.


Product Features
  • Quarter-turn dogging
  • Simplified cartridge mounting
  • Rod extension kits for doors for most standard rim cylinders
  • Durable metal end caps
  • monitor switch
  • electric latch retraction with no manual dogging.
  • EL devices are also useful with automatic door operators
  • May be applied to fire-rated devices when under the control of an automatic fire alarm system.
  • EL feature provides remote latch retraction
    ability to exit devices.
  • A control station operator can flip a switch to retract the latch bolt
  • Immediately change an exit only or latched door to push-pull operation
  • A powerful, continuous duty solenoid retracts the latch bolt for momentary unlocking, or for extended periods of time, in lieu of manual dogging.
*rod extension kits are available for special order, please call
Instructions
Template
Catalog
Order Options Guide
Color Options
US28 628 Anodized Aluminum – Clear
DC13 710 Anodized Aluminum – Dark Bronze
Handing
Please be sure to select the correct hand when ordering. For instance you may notice the Right Hand and Left Hand Reverse drawings look similar. Indeed they appear to be similar. But there is a very important difference between them. The Right Hand drawing shows the push side of the door to be the locked (usually exterior) side of the door. But the Left Hand Reverse drawing shows the locked side of the door to be the pull side. This difference is significant when talking about door hardware as the application of that hardware is dependant upon the swing of a door.
Handing Chart
Questions and Answers
Q: Our church installed the EL1690 device with a PS914 power Supply with 900-2RS 0ption board. Installation is on two doors. When our system (Keri Doors) schedule calls for both doors to open at a given time, the doors begin to try to activate every 15-20 seconds. If we schedule the two doors to open a minute apart there is no problem. Can you advise why we are unable to open both doors simultaneously?
A: This is because both devices are asking for 16 amp at the same moment which exceeds what the PS914 can deliver.

Solution 1. Install a relay in line so as to offset the power request but a second or two.

Solution 2. (preferred) Substitute the 900-4RL board for the 900-2RS board and this will resolve your issue. When using the 900-4RL board and hitting both inputs at the same time will not knock the breaker out in the power supply as it does with the 900-2RS board.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise and feel it separates us, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with

Q: Do you have a single part number I can pull from the shelf to turn it into a EL1690
A: Unfortunately there is no EL conversion kit for the 1690. You must order a complete EL1690 device.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: I wish to drive 2 - EL1690 devices Is the proper way PS914 x 900-2RS Is it possible to drive 4 - EL1690 devices with a single power supply? Is the proper way PS914 x 2 - 900-2RS I do not know the proper way to arrange this.
A: One PS914 can be used with a 900 4RL to control 4 of those.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: What power supply do I need for my EL1690?
A: The PS914-2RS as seen here:

Click Here

is required to operate the EL1690 exit device.

Q: What power supply is need for Falcon EL devices?
A: The Von Duprin PS914 power supply with either the 900-2RS or the 900-4RL option board is required as seen here:

Click Here

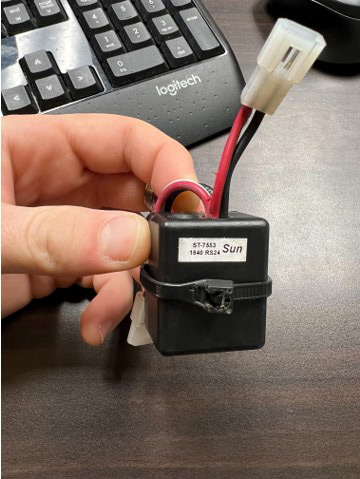

Q: What is the part number for Doromatic EL solenoid?

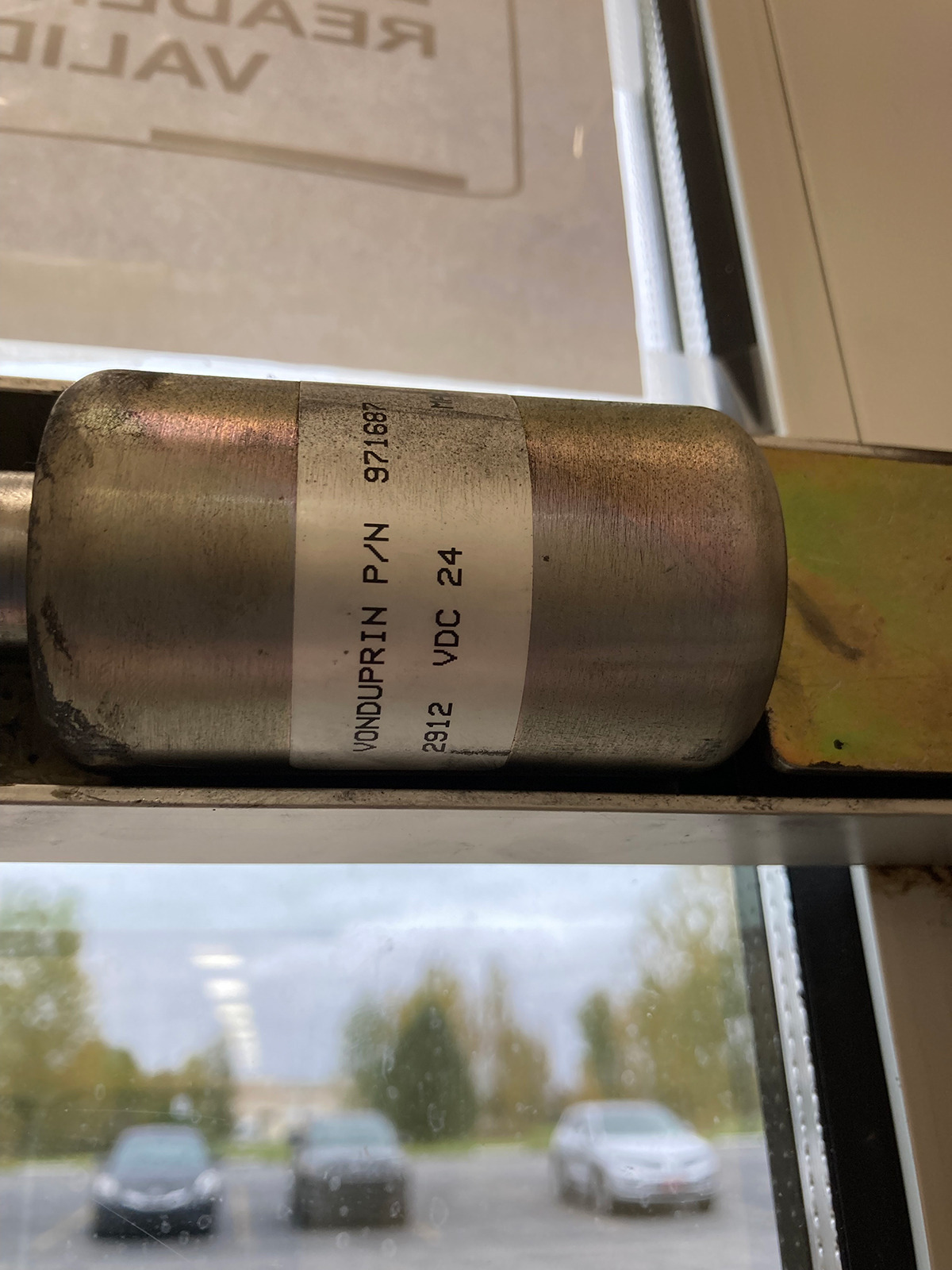

A: he part number for the solenoid for the 1690/1790/2390 is 971687-00 as seen here:

Click Here

and for the 1490/1590 is SOLENOID.142 which is 971687-00 as seen here:>

Click Here

with a machined bracket.

The solenoid characteristics are the same for all Dor O Matic EL or ED type devices, just a difference in brackets.
