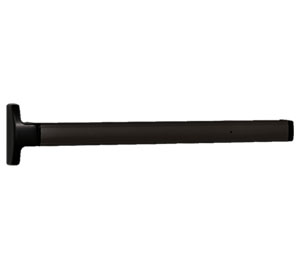

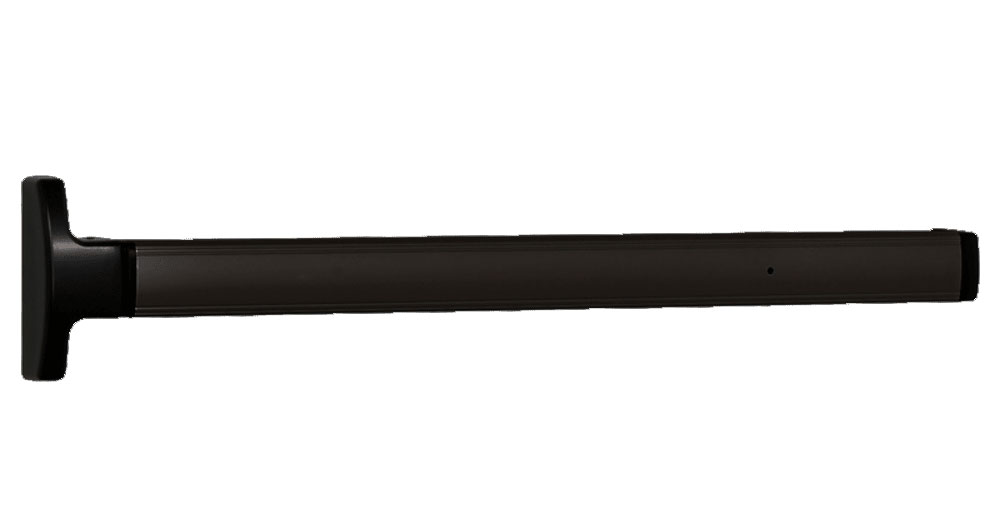

DOR-O-MATIC 1690EO 36IN DC35

The design of the 1690 is ideally suited for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. The cover plates and end caps are constructed of cast metal to hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device and permits unrestricted traffic flow. This locking mechanism is designed to offer more versatility than crossbars, which require two-point dogging.

• 1690 Series Concealed Vertical Rod Panic Device
• Grade 1
• Narrow style touchpad
• Exit only
• For 36" wide and 1-3/4" thick doors
• DC35 Black Anodized Aluminum finish
• Centercase and endcap are powder coated black only
• Field Reversible
• Hex Key Dogging
• Standard top strike: PB48

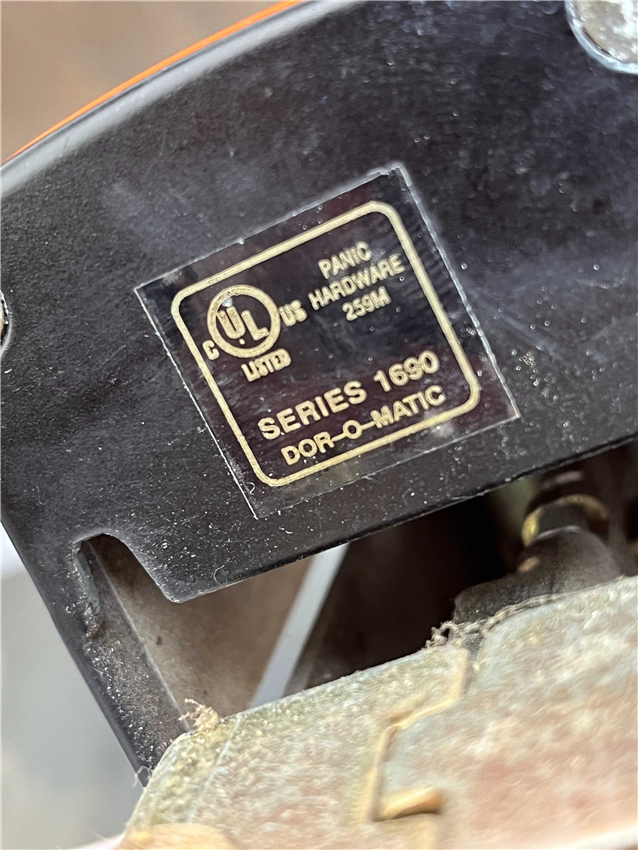

• Carries the Underwriters Laboratory (UL) label and are approved for life safety
• Streamlined design has no openings for chains — reducing the risk of code infringements

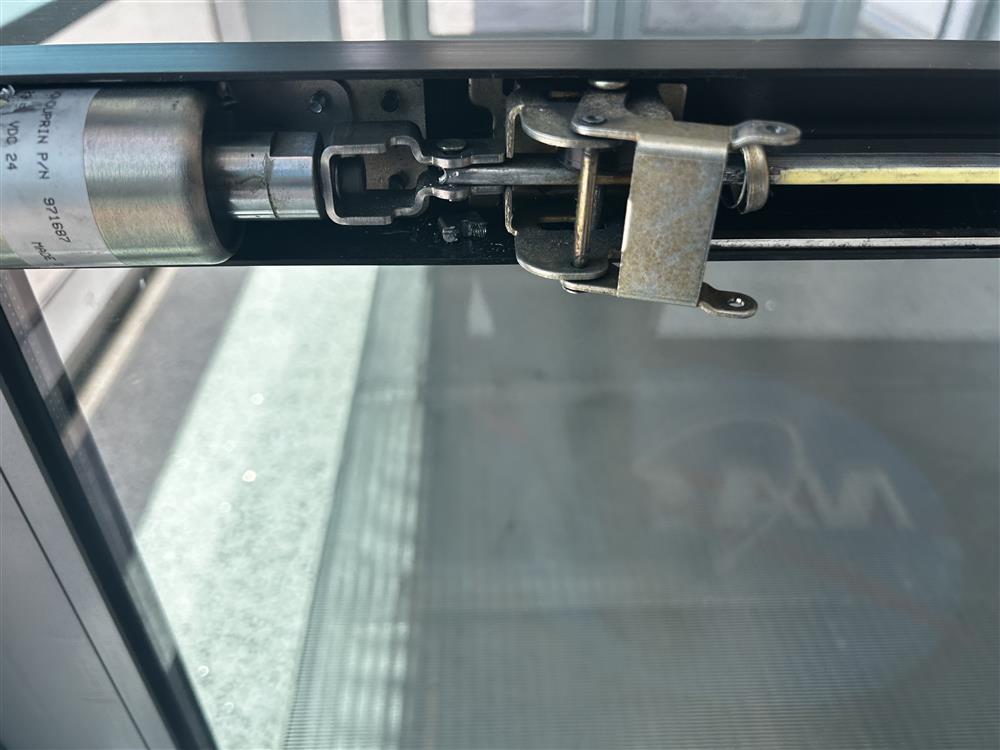

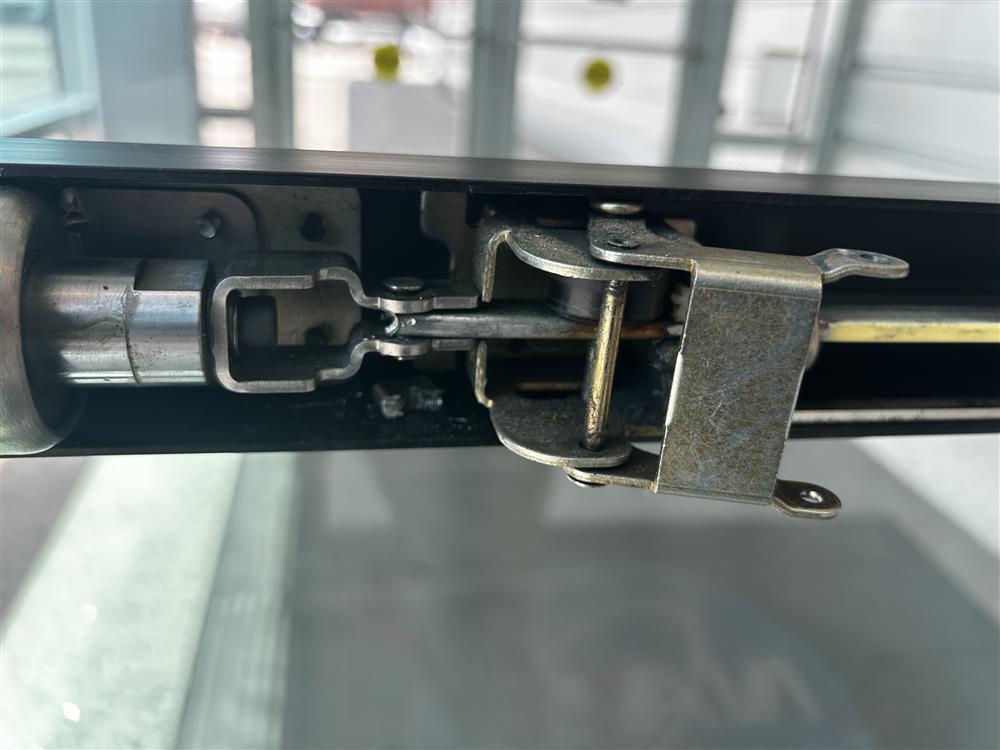

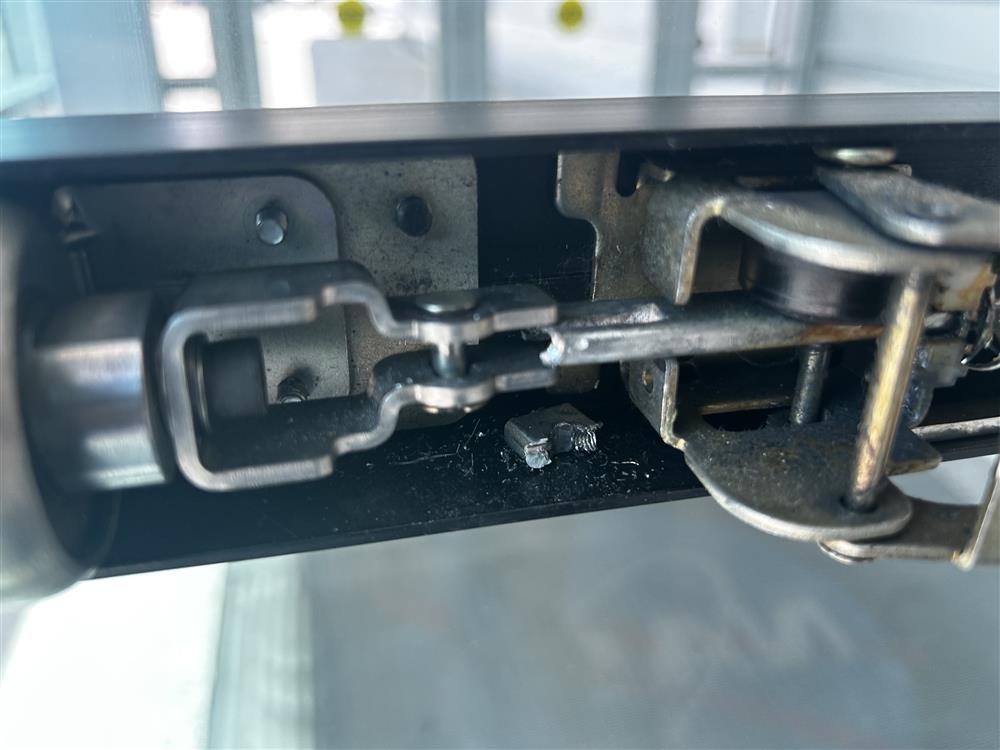

• Vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation
• Cover plates and end caps are constructed of cast metal to hold up to rigorous use
• Quick, single-point dogging feature in the housing deactivates the device and permits unrestricted traffic flow
• The locking mechanism is designed to offer more versatility than crossbars, which require two-point dogging.
