Detex V40 x EB BK

Name: Detex Battery V40 x EB BK Powered Alarmed Rim Exit Device
Brand: Detex
SKU: Detex V40 x EB BK
Price: 547.43 USD

Detex Battery V40 x EB BK Powered Alarmed Rim Exit Device

× This image is for a similar product but it will differ in size, color and/or other attributes.

Detex Battery V40 x EB BK Powered Alarmed Rim Exit Device

Price: $547.43 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


	Stainless steel self-latching bolt
	Angled end cap to deflect damage
	Plated steel, anodized aluminum and ABS components endure heavy use and exposure to the elements
	Built-in inhibitors prevent ABS fading and weakening, typically caused by exposure to extreme temperatures and UV rays
	Cylinder dogging standard (can also be ordered less dogging)
	Tamper-resistant housing protects electronics, battery and internal hardware, preventing manipulation
	Tapered design sheds rainwater
	Bright signage deters theft and reduces false alarms and resists fading

	Installation Made Easy :
	Patented plastic template design for perfect alignment with door and frame without paper template
	Fast, easy, trouble-free installation	Installation guide
	Secure installation prevents costly mistakes and enhances security

Benefits:	Electronic Features :
Priced to be the best value for durable and attractive loss prevention hardware	State of the art electronics for reliable security & instantaneous alarm
Provides reliable loss prevention protection 24 hours a day	Tamper-resistant security switching electronically monitors latch bolt
Rugged, durable design reduces maintenance	Approximately 100 Decibel alarm
Aesthetically pleasing design for almost any door in any décor	Adjustable 2 min. re-arming feature for auto re-arm
Accommodates 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard cam. Call factory for other non-standard mortise cylinder applications.	Visual and audible arming indicators
Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements for panic & exit hardware	Armed/Disarmed status indicator is field selectable
Reduces employee and customer theft	Powered by standard, 9-volt battery
	Visual and audible low-battery alert
	Delayed arming feature for arming after door closed

Physical Characteristics :
Exterior of anodized aluminum and damage and corrosion resistant ABS for years of heavy use
Stainless-steel, dead-latching bolt with a 3/4" throw
Dimensions: Two sizes - * 36" fits 34" to 36" doors; 48" fits 40" to 48" doors (Optional mounting configurations available for other door widths - Consult Factory)

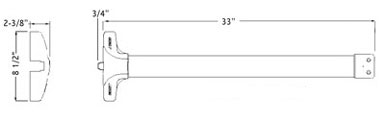

Length - 33" (see drawing below)
Height of cover - 8-1/2"
Profile from face of door - Undogged 3-1/4", dogged 2-3/8"
Fits 2" narrow stile doors with Narrow Stile Door Kit (sold separately)

Maintenance:
	Under normal conditions, only periodic testing and general inspection recommended
	Under normal conditions and operations, battery life of 12 months. Time varies depending on use, climate, battery performance and other non-controllable factors.
Specifying and Ordering for Loss Prevention Applications :
	To order the Weatherized Detex Value Series specify V40xEBxW, for fire rated, specify FV40xEBxW (Call for other details of features & options)
	Requires Mortise Cylinder; Standard Yale Cam (Detex Mortise Cylinder part #102281-7 sold separately)
Configurable Options and Finishes:
F prefix - 3 hour fire rating
H prefix - Hurricane rating
Base plates available in brushed aluminum and black (BK) anodized finishes
Push pad in solid black (BLK) or red with white lettering (Also available in green with white lettering in several languages
Can be used on 3' and 4' doors and gates
Available in several different configurations, with outside trims, alarms, security options, signage and finishes

Options Available:
	Auto re-arm for ensured protection
	Through-door mounting kit available - Parts #101616 & 101617
	Key stop option available so key can only be removed when armed - Part #101867
	Security screw kit available - Part #101869
	NS - Narrow stile door option. For use on full 36" and 48" wide doors with 2" stile. Specify 628 (AL, aluminum) or 711 (BK, black anodized). 98 semi-mortise strike included.
	Glass bead kits available - Parts #101879 & #101873
	Remote signaling available (Specify when ordering)
	Outside key control available (Call for details)
	Other Value Series models to include weatherized, delayed egress, electric switching and electric integration devices
	Cylinder spacer required for 7-pin cylinder on inside key control (ECL-1595)

Detex Limited Warranty:

Detex Value Series® Panic Hardware, when properly installed, used and maintained is warranted to be free of defects in material and workmanship.

We will, for a period of three (3) years from the date of purchase, repair or replace any part which, upon our examination, proves to be defective under normal use.

Electrical companents, when properly installed, used and maintained, are warranted to be free of defects in material and workmanship for a period of one (1) year.

This warranty will be honored upon presentation of proof that the product covered thereby was purchased directly from an authorized Detex distributor.

We shall not be liable for any direct, incidental or consequential loss or damage arising out of the failure of this panic hardware to operate.
