Dorma DB800

copy to clipboard

DB800 Series Dead Bolts

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
DB800 Series Dead Bolts
More from Dorma
Price: $147.80 USD
Ships From
Comments (Optional)
This item is not in stock and typically ships in 1 business day.

1-773-809-3667

Sales
Technical Support
Product Description:
DORMA’s DB800 Series Grade 1 dead bolts provide increased security, reliability, and durability.

dorma DORMA offers a choice of rugged dead bolts to provide an added level of protection.

dorma The DB800 Series are Grade 1dead bolts available with 2-3/8" and 2-3/4" (standard) backsets.

dorma The 1" throw dead bolt includes a hardened steel roller to prevent sawing through the bolt.

dorma The heavy duty cylinders are throughbolted, with reinforced cylinder rings to protect against physical attack.

dorma Brass 6-pin cylinders are provided for security and durability.

dorma The solid steel strike plate reinforcement with 2" screws protects the door jamb against a kick-in attack.

DB800 Series

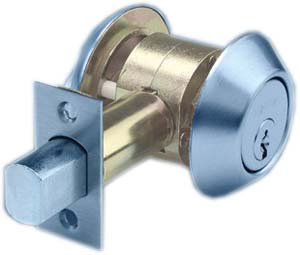

Techical picture
cut sheet
Installation Instruction
Templates
Product Brochure
Technical Drawing
Recommended Applications
arrow Apartments
arrow Municipal Buildings
arrow Retail Complexes
arrow Warehouses
Technical Details:
• DB800 Grade 1 Tubular Auxiliary Dead Bolt.
• Threaded mortise cylinders for strength and durability.
• Available in Small Format Interchangeable Core (SFIC), Schlage C and E, Sargent LA, and Corbin Russwin L4 (consult factory for additional keyways).
• Dead bolt front manufactured from stainless steel, brass, or bronze, depending on selected finish.
• Stainless steel, brass, or bronze strikes.
• Available with 2-3/8" or 2-3/4" (standard) backset; 1" throw dead bolt with hardened steel roller.
• Solid steel reinforced strike plate with 3" screws.

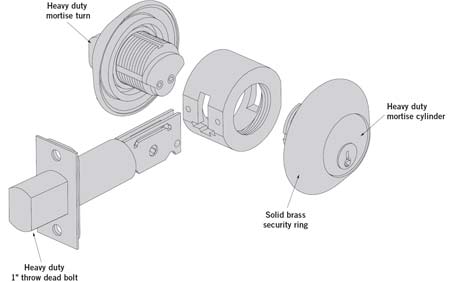

CL8000
Certification
Dorma The DORMA DB800 is certified to the requirements of ANSI A156.5 2001 Grade 1.
Dorma The DORMA DB800 is U.L./C.U.L. listed as 3-hour fire rated auxiliary lock.
Cylinders and Keying:
Dorma Unless otherwise specified, cylinders will be provided in DORMA standard keyway with two (2) nickel silver keys..
Dorma Optional patented key system available.
Dorma Refer to DORMA Price List for full details and options such as master keying, retrofit cylinders and keyways, and small format nterchangeable cores.
Finishes:
hammer Brass: 605 (Bright) or 606 (Satin).
hammer Bronze: 612 (Satin) or 613 (Dark Oxidized Oil Rubbed Satin).
hammer Chrome: 625 (Bright) or 626 (Satin).
FUNCTION SERIES OUTSIDE/INSIDE DESCRIPTION
Cylinder x Turn DB860
dummy trim
• Dead bolt operated by key outside or by turn inside.
Cylinder x Blank DB861
passage
• Dead bolt operated by key one side. Blank plate on other side.
Cylinder x Cylinder DB862
privacy

• Dead bolt operated by key either side.

Cylinder x Classroom DB863
entry

• Dead bolt operated by key outside.
• Turn retracts dead bolt but does not project it.

Turn Only DB880
classroom
• Dead bolt operated by turn inside. Blank plate on
other side.
How to Order CL800/CK800 Series
Arhitectural Builders Supply sells the entire Dorma Lock Line . If you would like to order non-stock products please refer the chart below or call: 877-631-9411.
• DB800 Series Dead Bolt
• DB860 Series Grade 1 Heavy-Duty
• Cylinder x Turn Function
• Satin Chrome Finish
• Right Hand
• 2-3/4" Backset Latch Bolt with 1" Throw
• 1-3/4" Thick Door
• 1-1/8" x 2-3/4" Strike
• 6-Pin Mortise Cylinder
order
1" Throw Latch Bolt Strike ANSI Strike Full Lip Strike
deadbolt
deadbolt
deadbolt
deadbolt
28252 — 1-1/8" x 2-1/4"
1" throw dead bolt with 2-3/4" backset. Standard for DB800 Series Dead Bolts.
5103 — 1-1/8" x 2-3/4" strike. No lip. Standard for
DB800 Series Dead Bolts.
5004 — 1-1/4" x 4-7/8" ANSI strike with dead bolt cutout. No lip. Optional for DB800 Series Dead Bolts. 5203 — 1-5/8" x 2-1/4" full lip strike with dead bolt cutout. 1-1/8" lip length. Optional for DB800 Series Dead Bolts.
28152 — 1-1/8" x 2-1/4"
1" throw dead bolt with 2-3/8" backset. Optional for DB800 Series Dead Bolts
