Compx TLCB251
Compx TLCB251
Compx TLCB251 Cabinet Lock - Double Door Lock Cylinder Body with 11/16" Offset
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
5.31 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (No Minimums
):
Naples, FL Warehouse Qty: 6
In Stock (Minimums Apply
):
Vernon Hills, IL Warehouse Qty: 132
For quantities beyond the "In Stock" above, the item(s)
ships in 10-15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $35.00 worth of product from CompX to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

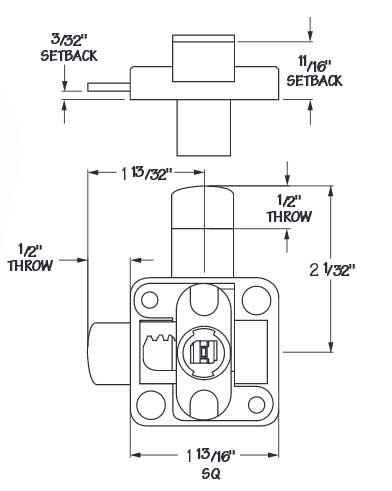

TLCB251 Double Door Lock Cylinder Body - with 11/16" Offset
Timberline Type 251 Double Door Lock
Mounts in 3/4” Material
Surface mounted lock for locking two adjacent doors
Locks both doors without the use of a spring catch
Works with either overlay or inset doors
Requires 16.5 mm diameter bore hole
Turn key counter-clockwise to lock
Key removable in both locked and unlocked positions
Application: Lower Left Hand or Upper Right Hand Installation
Associated Items: TLSP100, TLSP257, TLSP100-BN, TLSP257-BN Strike Plates
TLSP100 and TLSP257 strike plates sold separately (1 of each required per lock)
NOTE: Order lock plug separately.
Packing:
25 Each/Box
Sold In:
Both broken and full box quantities.
Video Detail Page
Questions and Answers
Q: is it possible if I will use one key for 30 locks
A:
The Compx TLCB251 Cabinet Lock - Double Door Lock Cylinder Body with 11/16" Offset is the lock body only but you could certainly order 30 - cylinders such as the Compx TLLP100-101TA Master Keyed Lock Plug - Bright Nickel, 101TA and will all come keyed alike with 2 - keys each cylinder (many other finishes and keyways are available as well). You could also consider keying some or all of the cylinders differently and then using a master key to access all the cylinders in the installed system as well.
