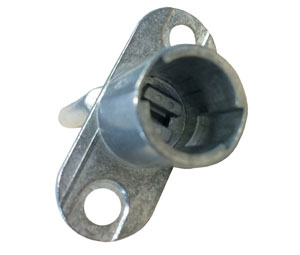

Compx TLCB100 Multiple Drawer Gang Lock - Cylinder Body, 3/4" - Front Top Rail Mount - 1 Each

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Compx TLCB100 Multiple Drawer Gang Lock - Cylinder Body, 3/4" - Front Top Rail Mount - 1 Each
Main ImageVideo Review Compx TLCB100
More from CompX
Price: $5.24 USD
Ships From
  Volume Price Information
 Buy 25 or more and pay $4.72 each (save 10.0%
Comments (Optional)
In Stock (Minimums Apply):
Vernon Hills, IL Warehouse Qty: 11
Middletown, OH Warehouse Qty: 6
For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
Multiple Drawer Gang Lock - Cylinder Body, 3/4" - Front Top Rail Mount - 1 Each
  • Timberline System 100 is designed to have lock cylinder mount into fixed cabinet top rail
  • Cylinder Length: 3/4"
  • Associated Items:
  • TLAP037 - Adjustable Pin
    TLLC100 - Lockbar Clip
    TLLB120 - Lockbar Clip 12"
    TLLB240 - Lockbar Clip 24"
    TLLB360 - Lockbar Clip 36"
    TLLB480 - Lockbar Clip 48"
    TLDC500 - Locking Clip
    TLLR100 - Lockbar Retainer
  • Packing: 25 Each/Box
  • Sold In: 1 Each. Both broken and full box quantities.
  • 10% Discount available on full box orders.

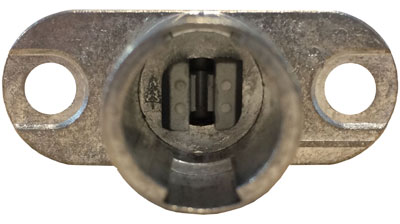

Multiple Drawer Gang Lock

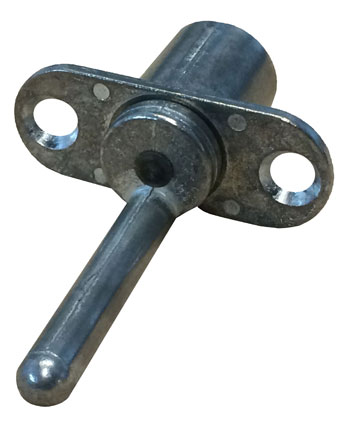

Multiple Drawer Gang Lock

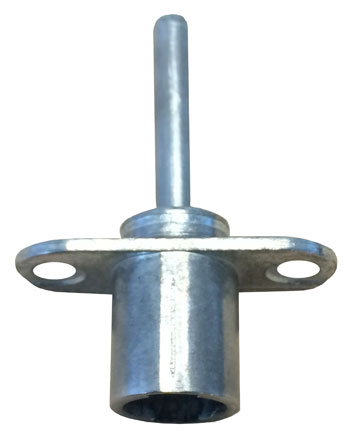

Multiple Drawer Gang Lock

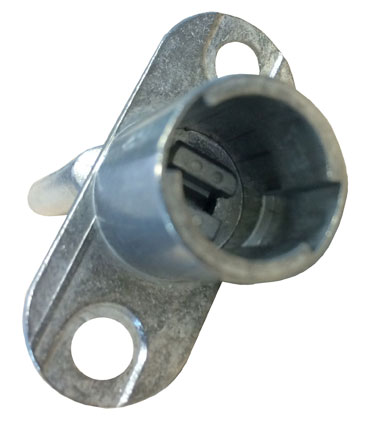

Multiple Drawer Gang Lock
Questions and Answers
Q: What is the length of the tailpiece and the projection of the cylinder housing?
A: 1 1/8 length of the tailpiece and 3/4 for the projection for the cylinder housing.

Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: Thank you. I also need to know the diameter of the cylinder housing. Thanks again
A: The hole required for this unit is 16.5 mm (1/25.4*16.5) = .649" per the 79'th page of the .psf:

Download File

My best guess would be 5/8" cylinder diameter housing.

Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
