Carr SPT-12DD

copy to clipboard

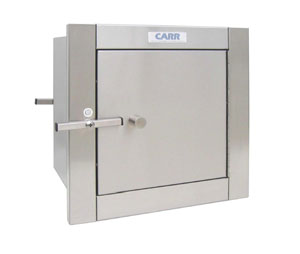

Carr SPT-12DD Specimen Pass-Through Cabinet

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Carr SPT-12DD Specimen Pass-Through Cabinet
Main ImageVideo Review Carr SPT-12 Specimen Pass-Through Cabinet
More from Carr Corporation
Price: $801.83 USD
Ships From
Comments (Optional)
Standard - ships in 14 business days.

1-844-809-3667

Sales
Technical Support
Product Description:

Carr SPT-12DD Specimen Pass-Through Cabinet

  • Facilitates the collection of lab samples while maintaining patient privacy
  • 17" deep for walls up to 16"
  • Meets ADA requirements
  • Also known as Model SPT121217

Description :

  • All stainless steel, 2 doors (one on each side)
  • Welded double wall stainless steel construction, ground and polished
  • Door interlocking systems prevents both doors from opening at the same time

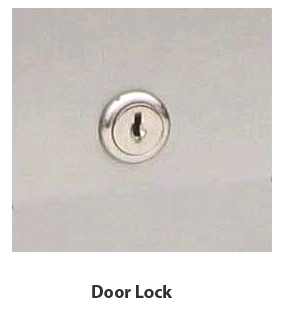

  • Option to delete the interlock and add standard keyed locks.
  • A stainless steel wall flange is included with each unit and an opposing wall flange is optional (WF-12 and has an OD of 14-3/8" x 14-3/8" and need to be slightly bigger than the built-in flange as they have holes in them for mounting screws).
  • Patient side is defined as the side with the fixed flange.
  • Overall size is 12" high, 12" wide
  • Rough opening 12 3/8" x 12 3/8"
  • Accomodates walls up to 16" thick
  • Handles:
    • Knob - standard (shown below)
    • Handle - optional (shown below)
  • The optional handle installed on the door is designed to open with far less force than ADA requirements, see video below.

Note :

The instructions are for a standard non-telescoping double door unit. Please call or email us for specific template and installation instructions.


Template


Installation


Certificate


Operation Video
400 Series Door Closer
400 Series Door Closer

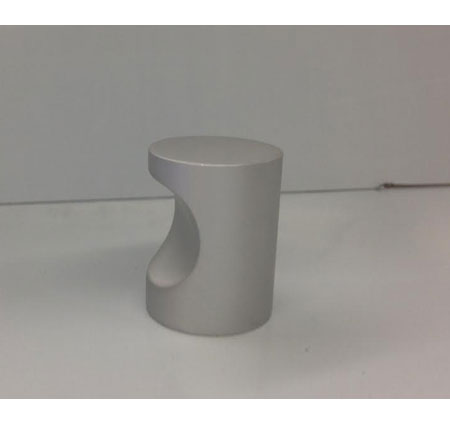

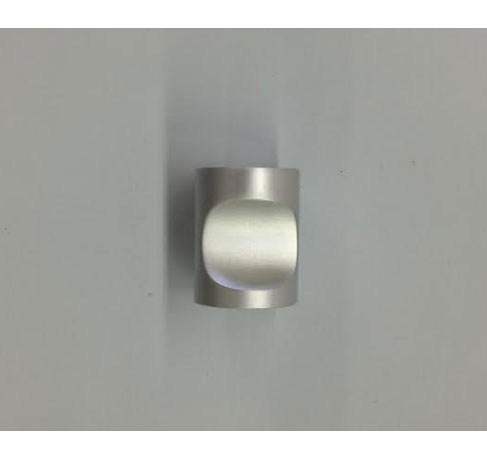

Standard Knob Supplied with Cabinet
Standard Knob
(Click to Enlarge)

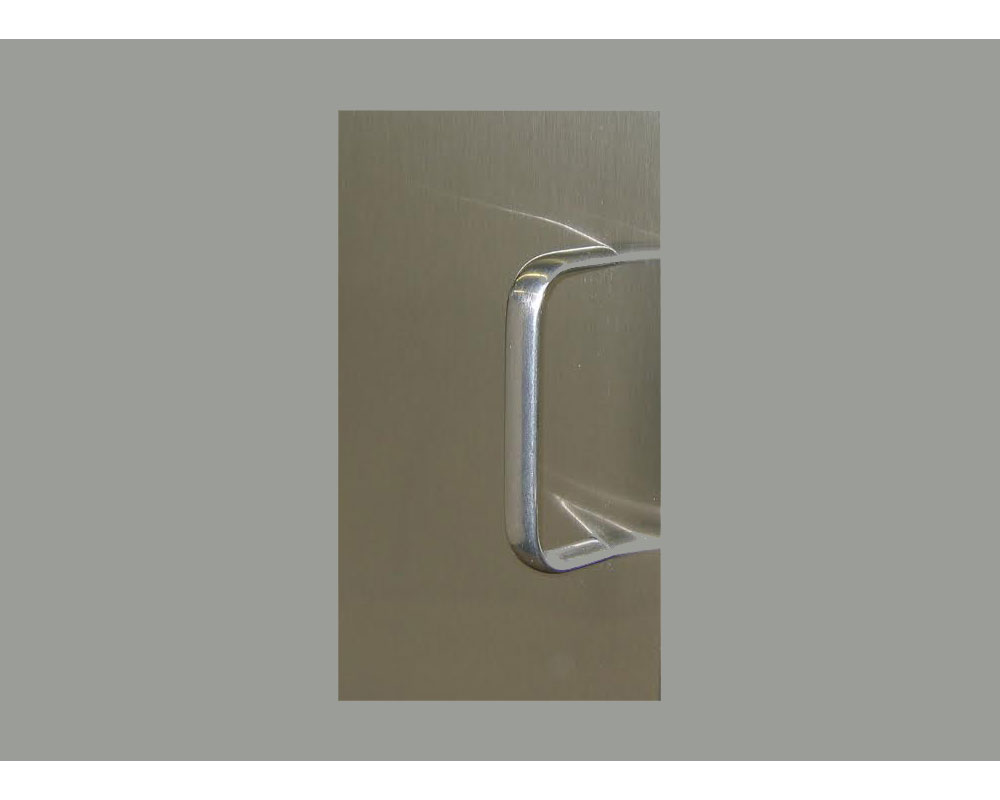

Optional Handle Supplied with Cabinet
Standard Knob
(Click to Enlarge)

Carr SPT Operation
