Carr SPT-12 GD

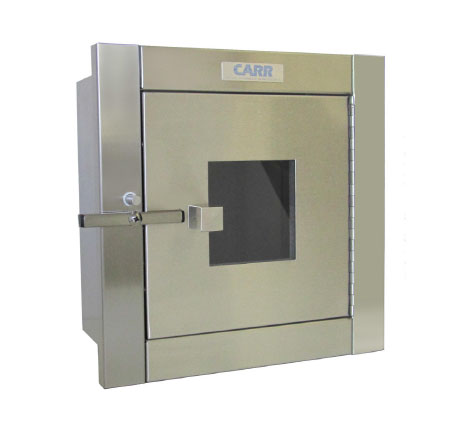

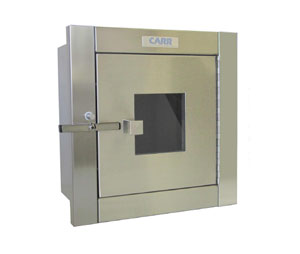

Carr SPT-12 GD Specimen Pass-Through Cabinet with Glass Door
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
631.89 USD
Select Glass Door Configuration
Glass Door on Patient Side
Glass Door on Non-Patient Side
Glass Door on Both Sides (Add $150.80)
Select Handle Option
Standard Knob
Optional Handle for Both Doors (Add $100.00)
Optional Handle for One Door (Add $50.00)
No Knob or Pull (you must supply and install)
Select Wall Flange
Not Required
WF-12 Opposing Wall Flange Required (Add $146.64)
Comments
(Optional)
In Stock Ready for Shipment
ADD TO CART
This item is not in stock and typically ships in 10-15 business days.
Check Inventory
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
[email protected]
Technical Support
[email protected]
Product Description:
Carr SPT-12 GD Specimen Pass-Through Cabinet with Glass Door
Facilitates the collection of lab samples while maintaining patient privacy
7" deep for walls up to 6"
Glass door is tempered glass
Meets ADA requirements
Also known as Model SPT12127
Description :
All stainless steel, 2 doors (one on each side)
Welded double wall stainless steel construction, ground and polished
Door interlocking systems prevents both doors from opening at the same time
Option to delete the interlock and add standard keyed locks.
A stainless steel wall flange is included with each unit and an opposing wall flange is optional (WF-12 and has an OD of 14-3/8" x 14-3/8" and need to be slightly bigger than the built-in flange as they have holes in them for mounting screws).
Patient side is defined as the side with the fixed flange.
Overall size is 12" high, 12" wide
Rough opening 12 3/8" x 12 3/8"
Accommodates walls up to 6" thick
Handles:
Knob - standard (shown below)
Handle - optional (shown below)
The optional handle installed on the door is designed to open with far less force than ADA requirements, see video below.
Note :
The instructions are for a standard non-telescoping double door unit. Please call or email us for specific template and installation instructions.
Template
Installation
Certificate
Operation Video
Standard Knob Supplied with Cabinet
(Click to Enlarge)
(Click to Enlarge)
Optional Handle Supplied with Cabinet
(Click to Enlarge)
Carr SPT Operation
Video Detail Page
Questions and Answers
Q: Hi, how does this lab pass through work? The glass could be on just the technician side so they can see when a specimen is there, but they can't see into the bathroom ?
A:
In this instance you would have a solid door on the opposite side so you can do a glass door on the technician side and a solid door on the opposite side however your client would be able to see into the lab side.
Q: What are the dimensions of the clear glass in the middle of the door?
A:
The window for the SPT12 is 4 1/8" x 4 1/4". Let me know if you need any further information.
