Cal-Royal SH-140 US26D

copy to clipboard

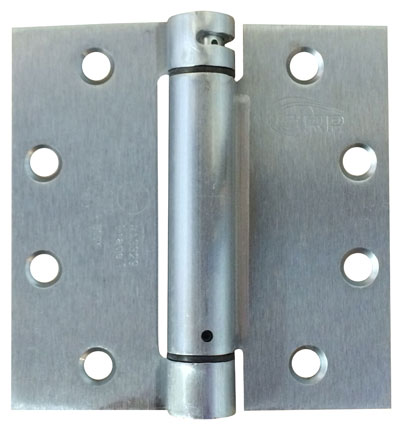

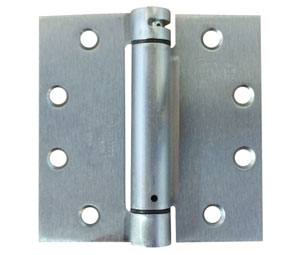

Cal-Royal SH-140 4.5x4.5in US26D - Satin Chrome Single Acting Spring Hinge-Full Mortise-Standard Weight-Steel Base

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Cal-Royal SH-140 4.5x4.5in US26D - Satin Chrome Single Acting Spring Hinge-Full Mortise-Standard Weight-Steel Base
Main ImageVideo Review Cal Royal SH 140 US26D
More from Cal-Royal
Price: $19.05 USD
Ships From
  Volume Price Information
 Buy 354 or more and pay $16.01 each (save $3.04
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 3 business days with $82.50 minimum purchase of Cal-Royal products or 15 business days for smaller orders.

Cal-Royal has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:

4-1/2" x 4-1/2" US26 - Polished Chrome Single Acting Spring Hinge-Full Mortise-Standard Weight-Steel Base

  • Hinge must be purchased in quantities of 2.
  • ANSI K81071F
  • UL Listed
  • Material: Steel
  • Gauge: .134
  • Number of Holes: 8
  • Screws
    • Machine: 1/2 x 12-24
    • Wood: 1-1/4 x 12
  • Note: Specifications of product in image may differ from product being sold. Read description carefully.

Instructions
  • Important: Do not exceed three(3) holes tension for 180º door opening. Or four(4) holes tension for 90º opening.
  • Caution: Always rotate the tension ver to the left regardless of right or left hand door applications.

  • BE SAFE AND CAUTION CARE!

  • Hinge Installation:
    • Install hinge regulary with adjustment head in the up position
  • Adjustment of Spring Tension:
    • 1) Make sure the door is in the closed position.
    • 2) Insert Tension Adjustment Rod in the right hand hole in the Adjustment Hole as shown in figure AA (from Instructions PDF image).
    • 3) Rotate Tension Adjustment Rod to the left and insert Tension Stopper Pin in the hole as shown in figure BB (from Instructions PDF image).
    • 4) Release Tension Adjustment Rod until Tension Stopper Pin contacts right hand side of adjustment holes.
    • 5) Remove Tension Adjustment Rod and test door for closing cycle and force.
    • 6) If door doesn't close repeat procedure until door closes.
    • 7) After final adjustment drive the Tension Stopper Pin flush with hinge barrel.

    Consult chart below for recommended hinge size for door sizes

    Maximum Labeled Door Size Recommend 3'-0" wide x 7'-0" high
    Hinge SeriesHinge Selection
    Recommended Maximum Door Weight (Lbs)Spring HingesButt Hinges
    3.5" x 3.5"4" x 4"4.5" x 4.5" and 4.5" x 4"
    5060702 Each1 Each
    70851152 Each1 Each
    901101503 EachNone
  • NOTES:
    • The information above is based on limits set by NPFA#80.
    • Two(2) spring hinges is a maximum requirement on fire labeled doors by NPFA#80.
    • Weather stripping, extreme window air pressure on one side of the door may require the use of maximum amount of spring hinges.
    • For best results use all spring hinges
Satin Chrome Single Acting Spring Hinge
