Bommer LB4381-400-633
Bommer LB4381-400-633

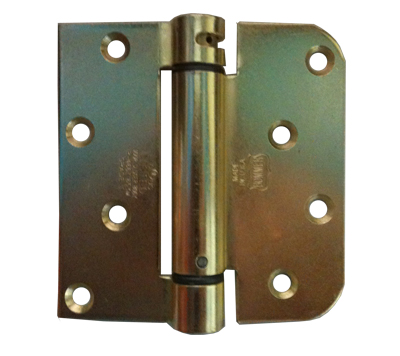

Bommer LB4381-400-633 4x4in Single Acting Spring Hinge-Full Mortise-Residential Weight-Lube Bearing-Steel Base-Satin Brass Plated
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
23.69 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
Low Inventory -
This product is discontinued
but there is 1 left in stock
and ready for shipment. Order today.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
4" x 4" Full Mortise Lube Bearing Steel Spring Hinge - Satin Brass
Full Mortise
ANSI K81071F
UL Listed for fire door applications
BHMA certified Grade 1 for one million cycles
Non-handed
Self lubricating bearings
Easily adjustable spring tension
Special template hole location
Designed to fit standard hinge preparation of STANLEY DOOR SYSTEM doors and frames
Pivot point aligns with residential butt hinges gauge .085 to .109
Material: Steel
Corners: 5/8" Radius Leaf / Square Leaf
Gauge: .096
Number of Holes: 8
Screw Size (and Quantity Per Hinge)
Wood: #10 x 3/4" (8)
Machine: #10-24 x 1/2" (8)
Recommended Maximum Labeled Door Size: 3' Wide by 7' High
Recommended Maximum Door Weight:
85 lbs with two spring hinges and one butt hinge
110 lbs with three spring hinges
Replacement Bommer Tension Pin:
F87464
Replacement Bommer Tension Rod:
F0910
Note: Specifications of product shown may be different than the one being sold. Read description thoroughly.
Template
Installation Instructions
Certifications and Hinge Selection Guide
