Q: I bought the Bilco RPRS8 Turn Handle Assembly Part #: Bilco RPRS8 and received today, but when i was install it to my roof hatch i realize the one of the pin hole on the shaft does not face the same direction as the other end . I think this is a manufacturew error. I mange to install it anyway but the handle outside is not facing the direction like it supose to be in the manual. can you send me a shaft that have both pin hole facing the same direction.. Order#61268
A: That unit is indeed intended to have the handles either facing the same direction or 180° from each other as shown here:
Download File
We have a replacement coming your way today. Thank you for bringing this to our immediate attention.
Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: I am looking at the Bilco RPRS8 Turn handle assy. What is the square shaft dimension. I need a 1/4 square shaft.
A: The caliper says .311"
Q: Are the handles on this hatch plated? Or plain steel?
A: They are a zinc alloy die cast handle.
Q: I was wondering if you carry the wrench with a T handle? we have many vaults that require a key-are you aware if Bilco ever had one? or a part #?
A: As far as I am aware they never manufactured a unit that was in the shape of a T - handle.
Q: Hi, I am looking for a replacement roof hatch handle see attached pics:
View Image
View Image
View Image

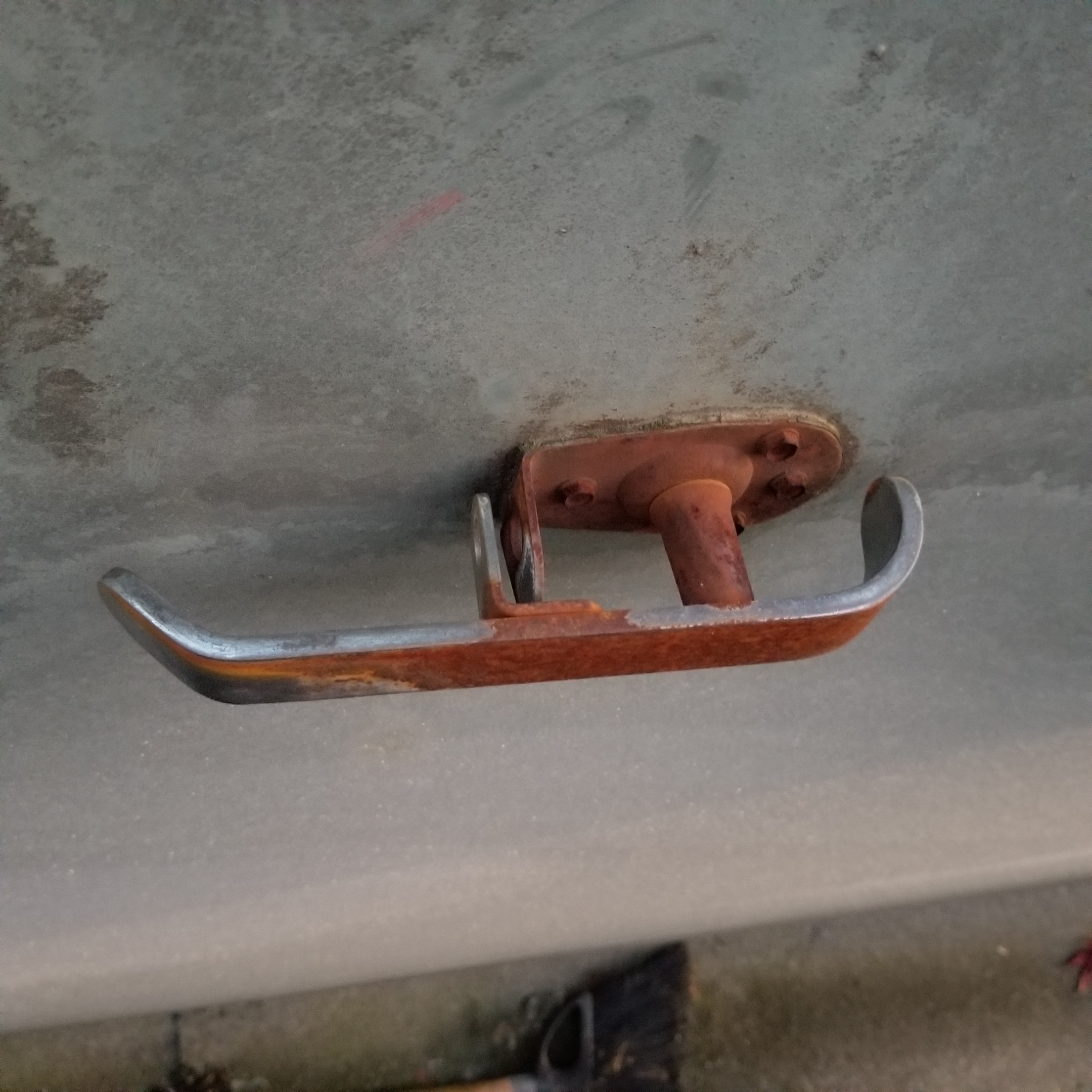

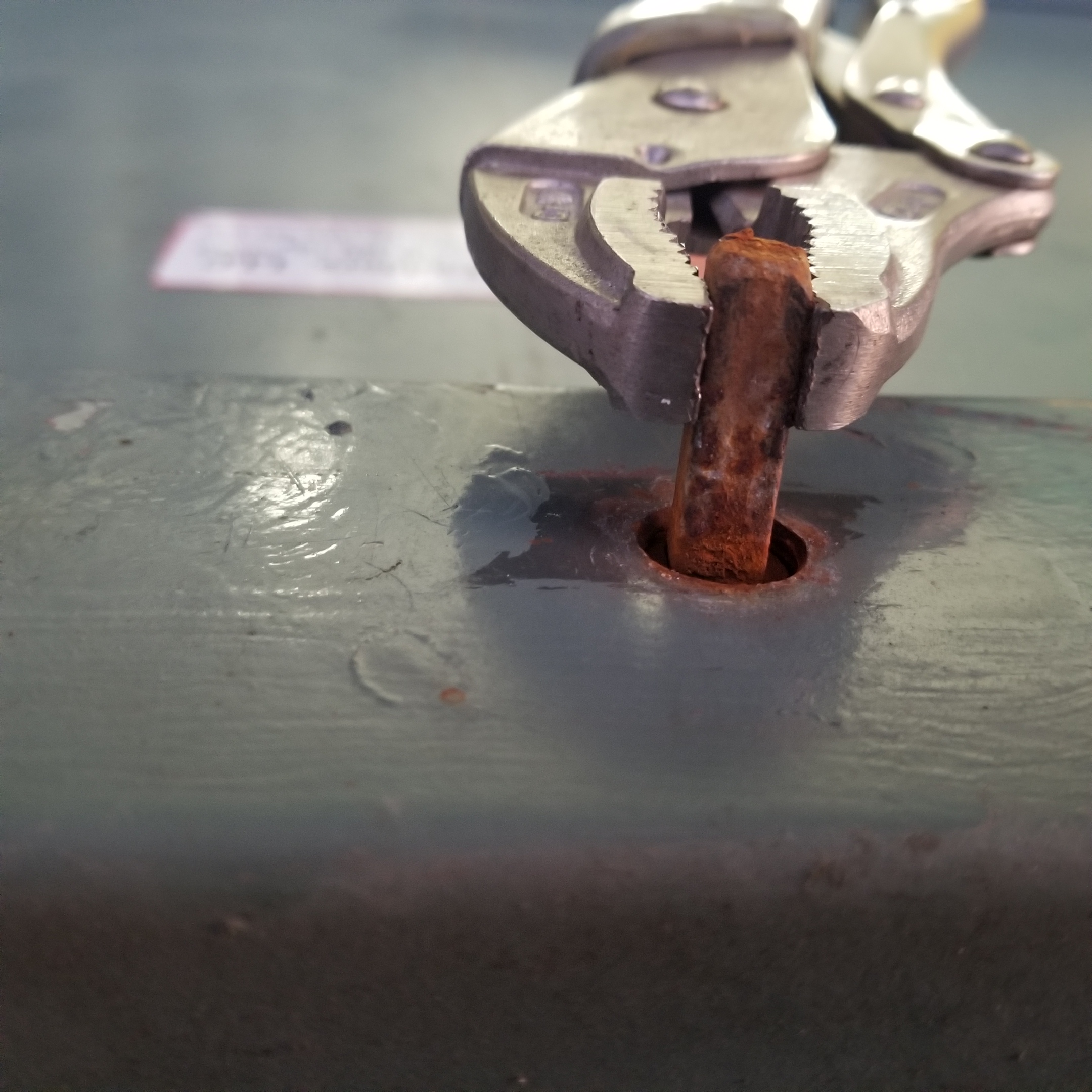

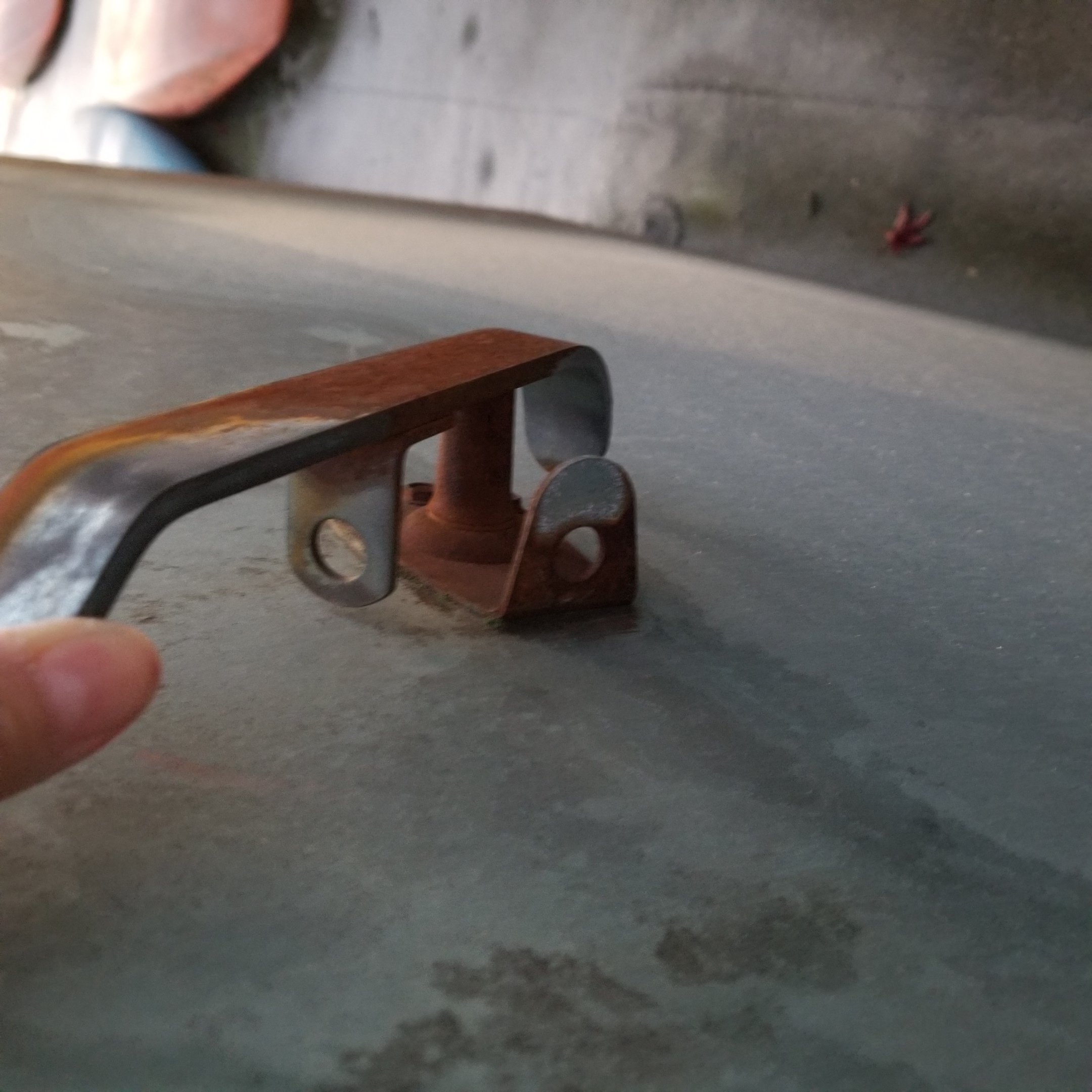

the first pic is the inside which we are currently using vicegrips the other two are on the outside. I found the following part on your website: Bilco RPRS8 Bilco RPRS8 Turn Handle Assembly - Shaft Length: 4-5/8" I was wounding if it will work as a replacement, the instructions show a box on the inside that the handle attaches to and as you can see from pic 1 I do not have a box. The rod seems to in gauge a mechanism inside the door which when turned releases dual latches on each end of the door. Please let me know if this item will work and or recommend a part that could work. Thank You,
A: Based on your images I believe the JL Industries RHD-KIT-LATCH-FULL Kit, Roof Hatch, Latch all L Handle, Slam Latch, Pull Handle
as seen here:
Click Here
would be a better option.
this may not be an exact match, but a closer match than the Bilco RPRS8.
