Bilco KTSLAM

Name: Bilco KTSLAM Replacement Zinc Plated - RPRS7 - Chromate Sealed Lock Assembly 4# for 1" Cover - 4-5/8" Shaft
Brand: Bilco
SKU: Bilco KTSLAM
Price: 154.35 USD

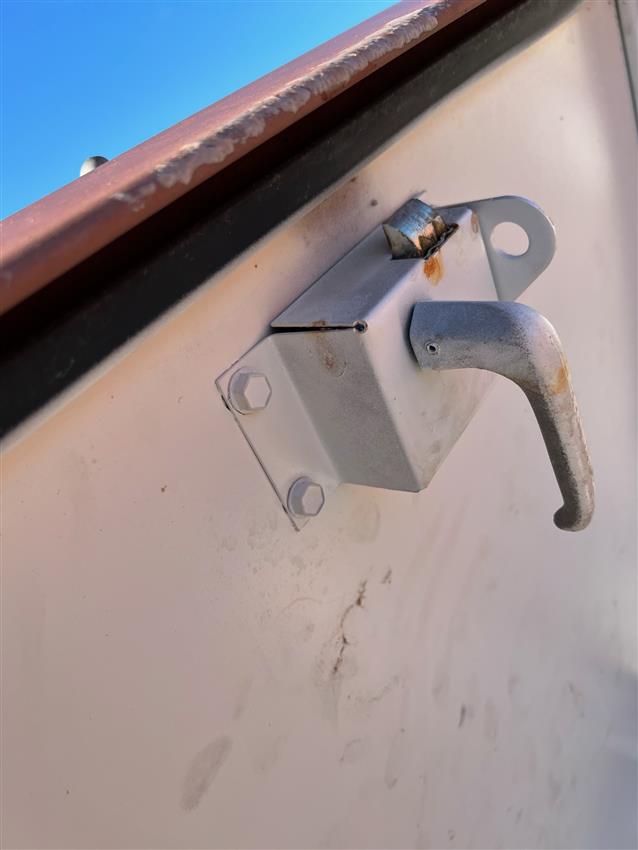

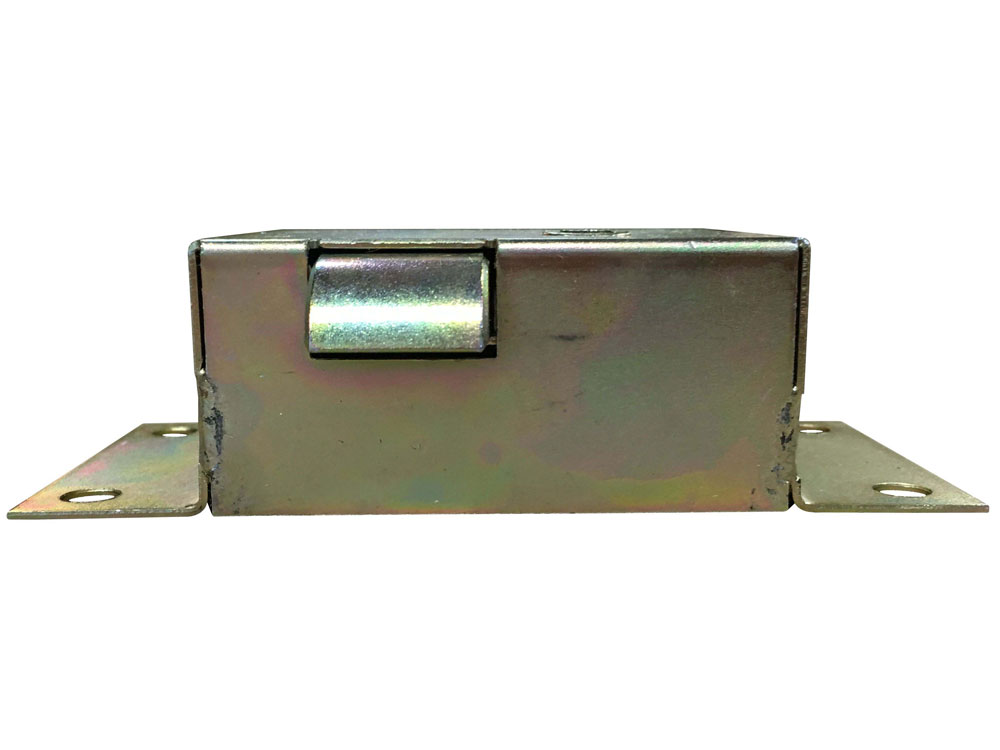

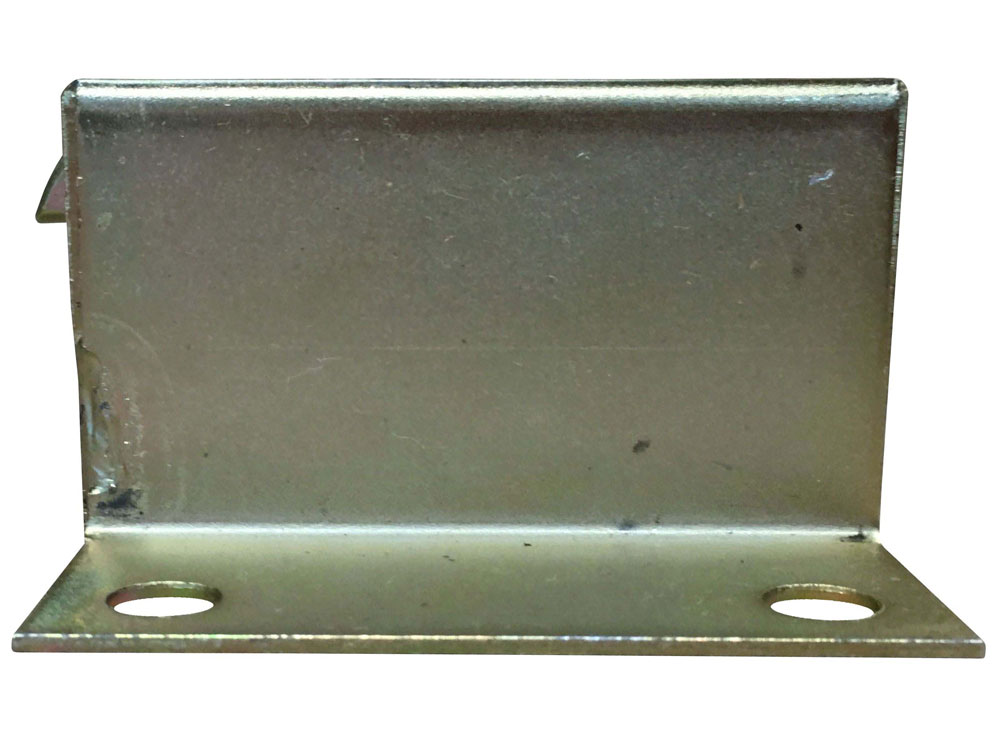

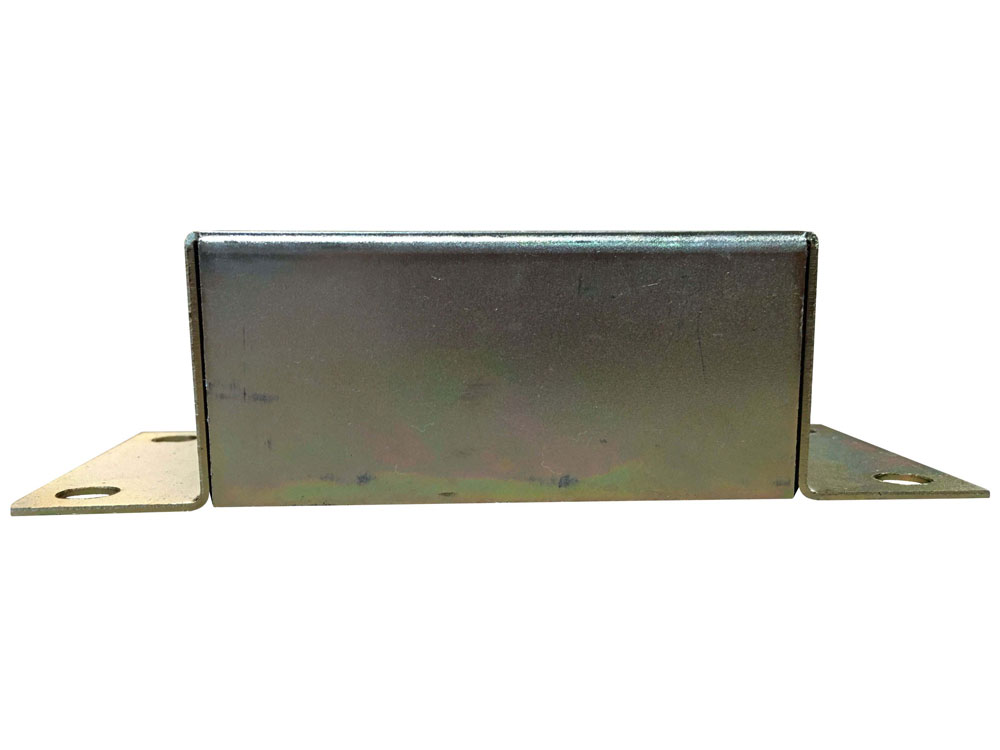

Bilco KTSLAM Replacement Zinc Plated - RPRS7 - Chromate Sealed Lock Assembly 4# for 1" Cover - 4-5/8" Shaft

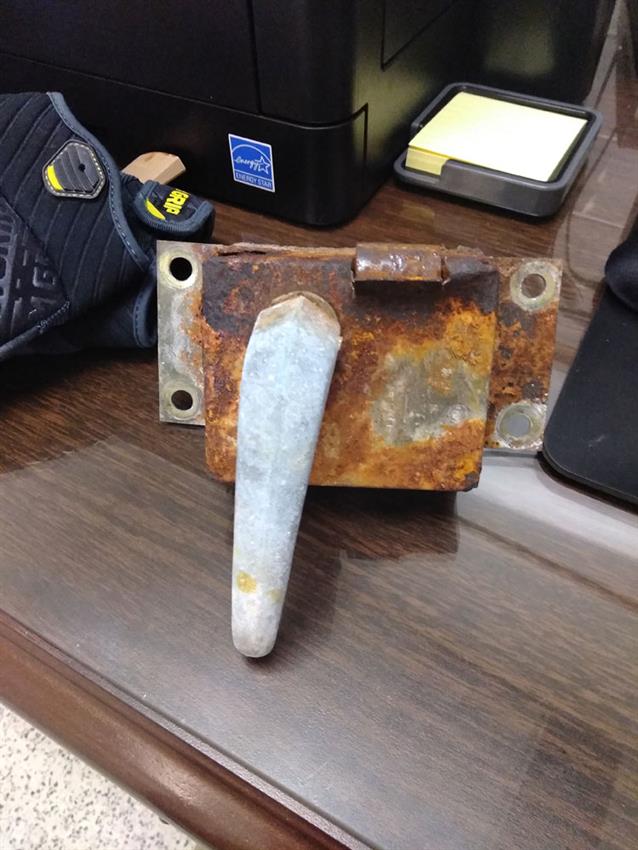

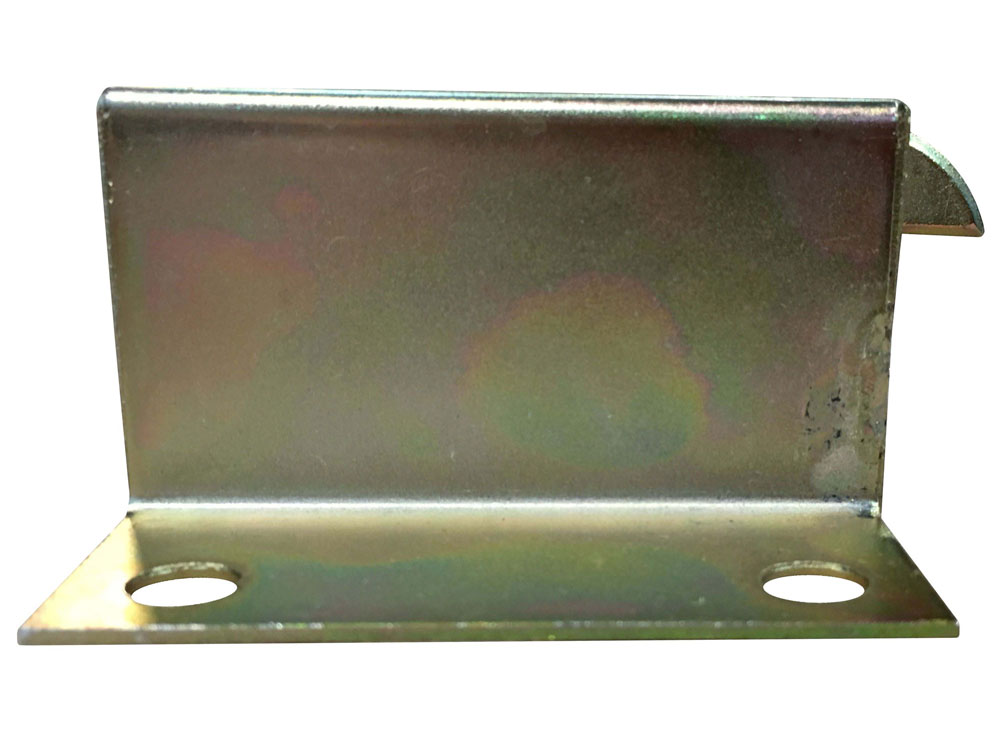

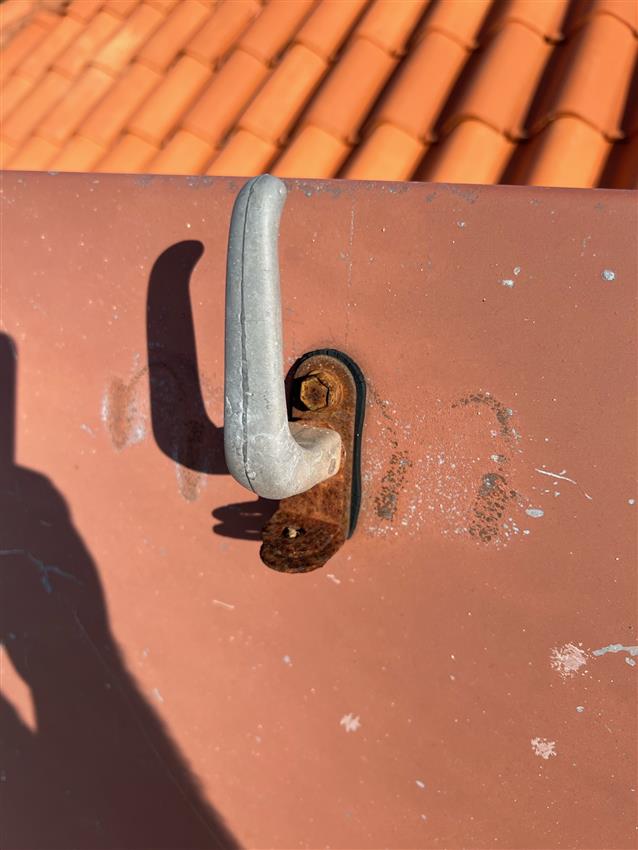

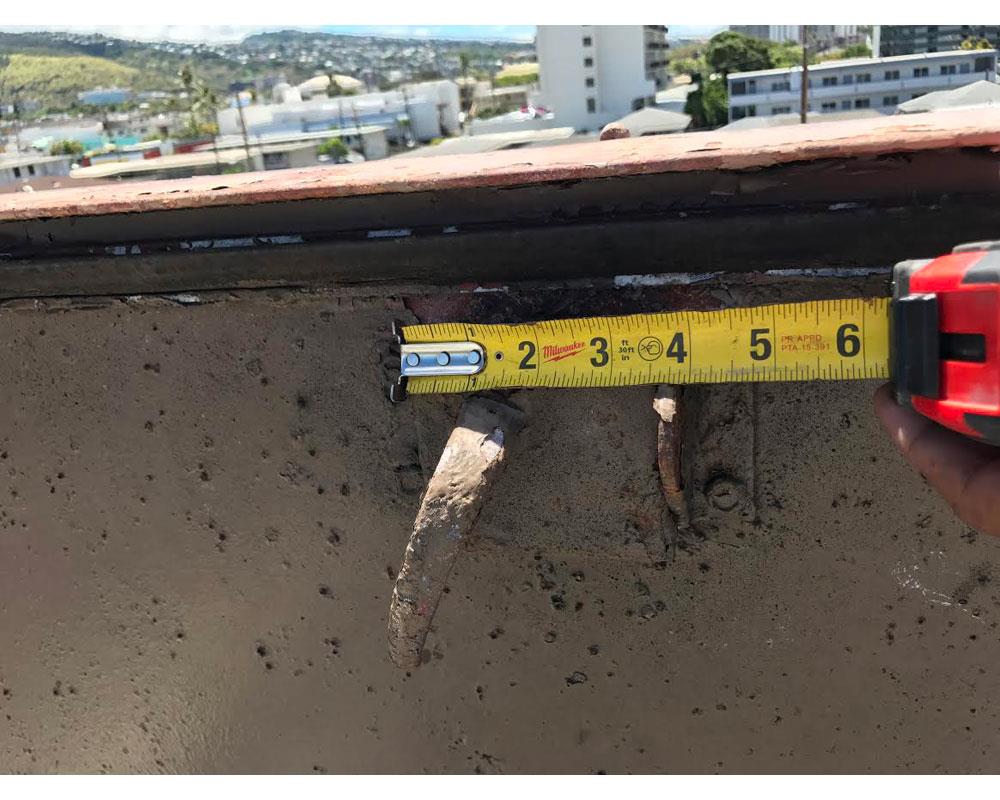

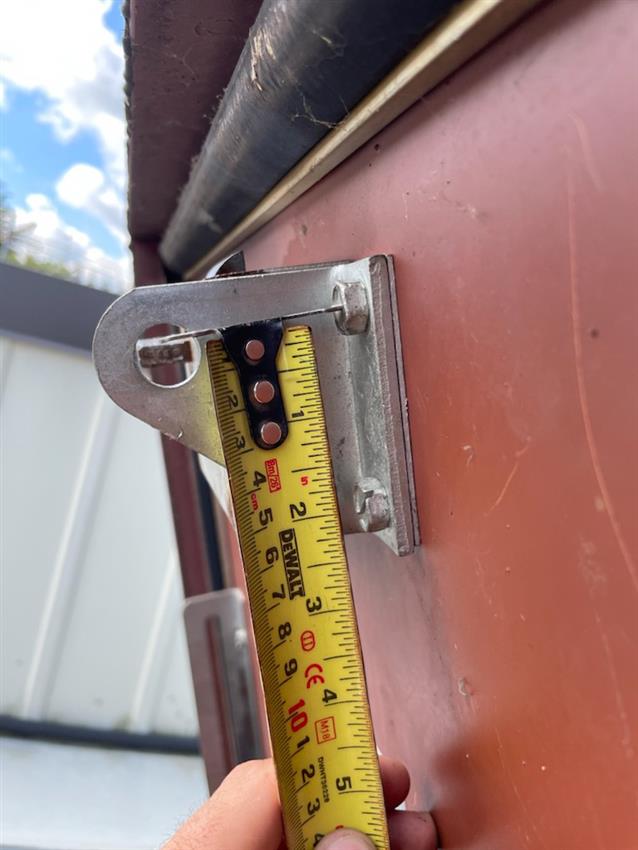

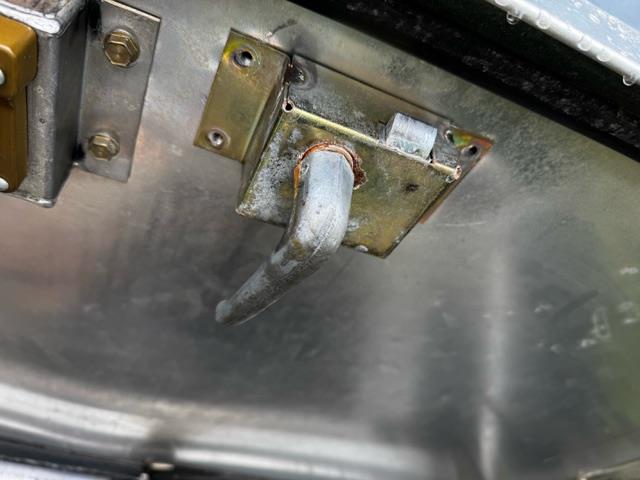

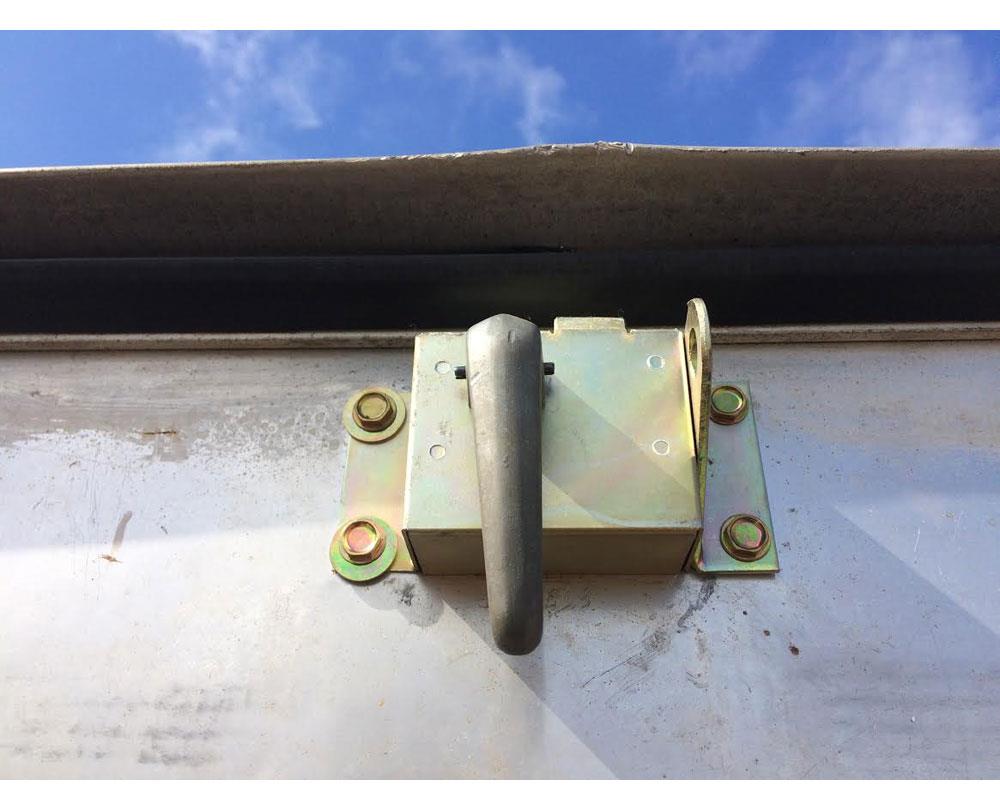

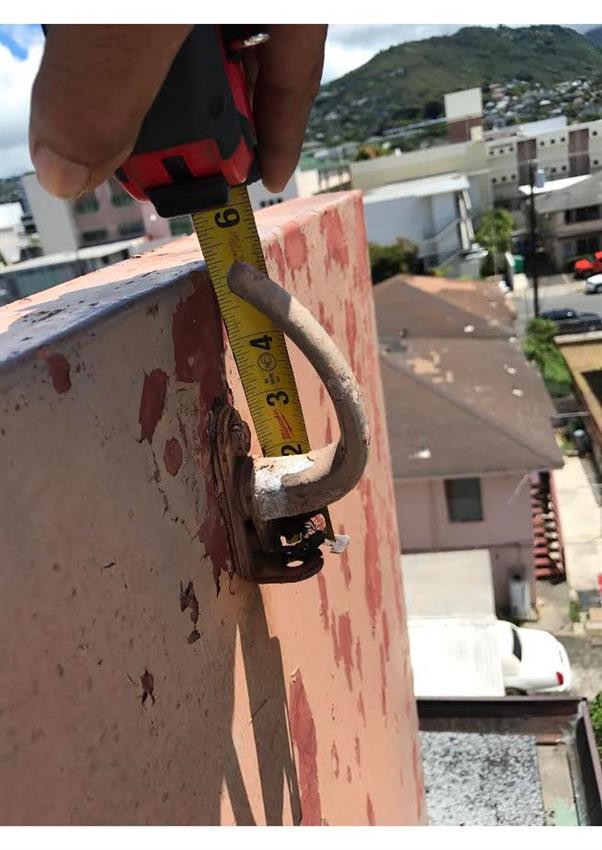

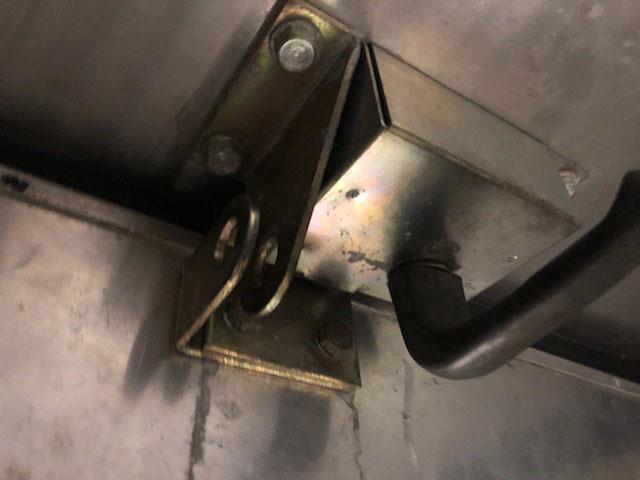

× This image is for a similar product but it will differ in size, color and/or other attributes.

Bilco KTSLAM Replacement Zinc Plated - RPRS7 - Chromate Sealed Lock Assembly 4# for 1" Cover - 4-5/8" Shaft

Price: $154.35 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 999

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:

KTSLAM Replacement Zinc Plated - RPRS7 - Chromate Sealed Lock Assembly 4# - 4-5/8" Shaft

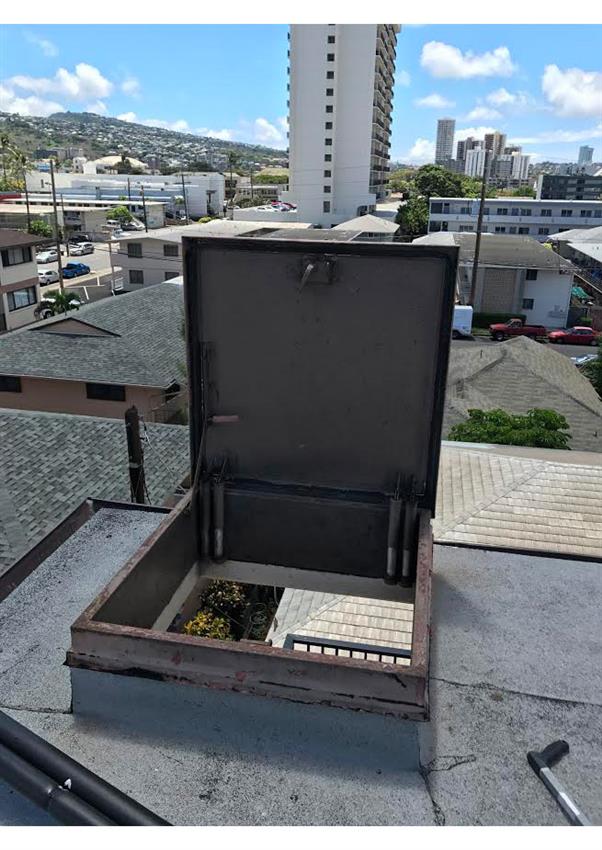

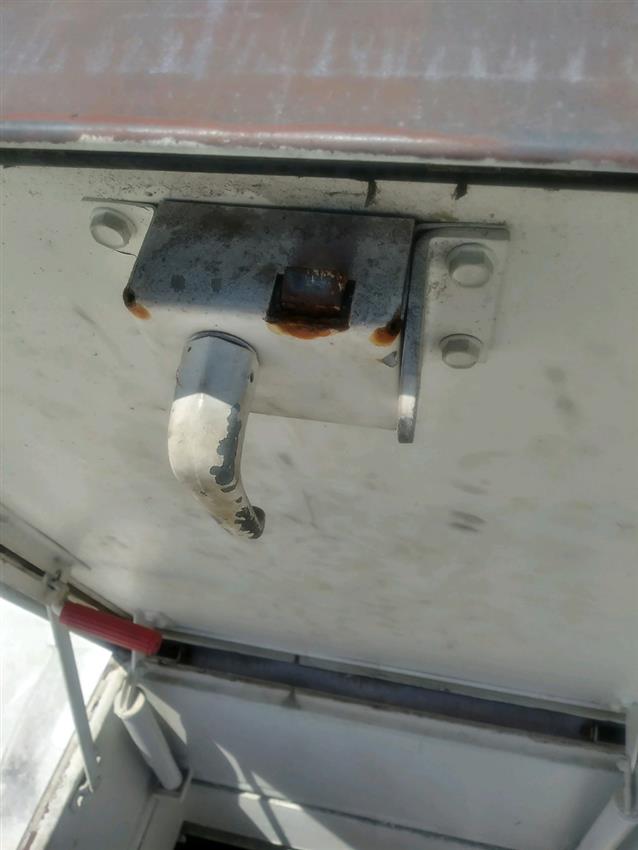

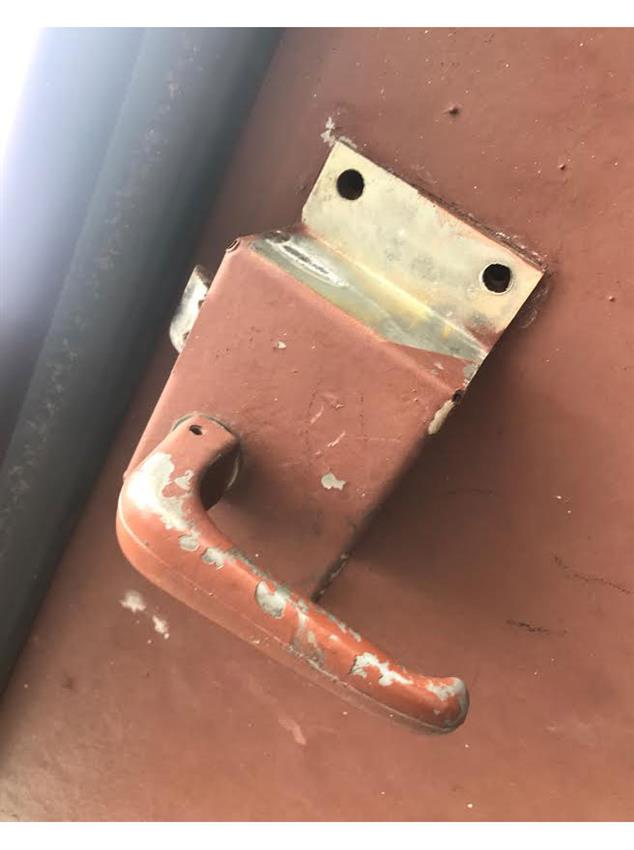

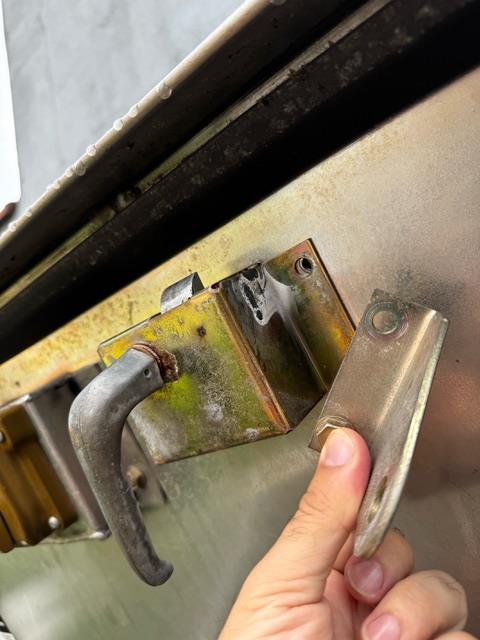

Non-stainless steel Replacement door latch for roof hatches
Bolt Type and Quantity for KTSLAM:
- 7-OF THE SD3-Y SELF TAPPERS
- 1-OF THE SD3-1-Y LOW PROFILE SELF TAPPERS

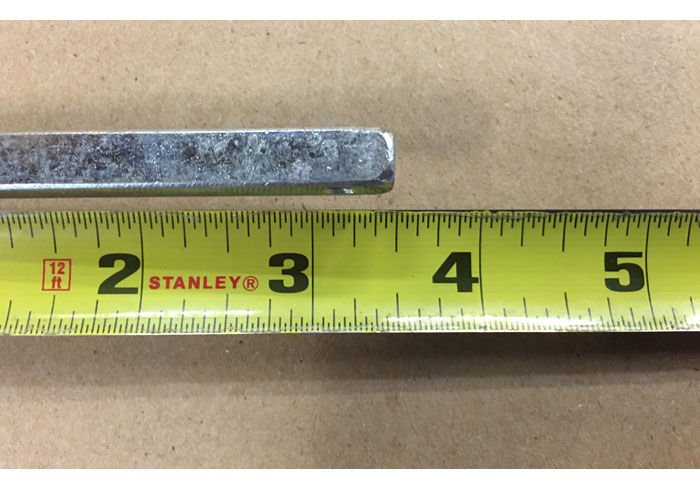

- Shaft Length: 4-5/8"
- For 1" Cover

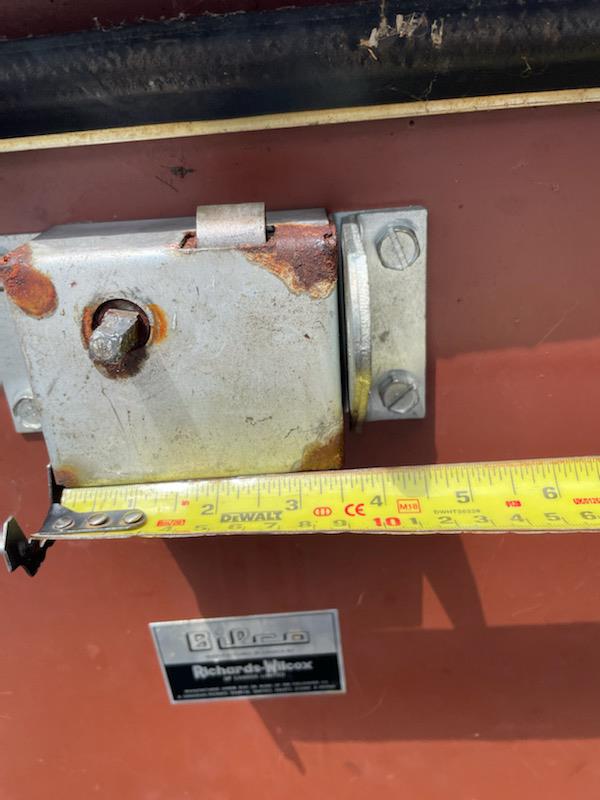

- Center to Center of Screws horizontally = 5"
- Center to Center of Screws vertically = 2"

Instructions

Bolt Drawings

Technical Information

S-Door Technical Drawings

Bill of Materials & Parts Schematic

Bilco Lock Assembly List

Formal Bilco Part #	Bilco Shop Part #	Description	Cover	Shaft Length
Bilco RPRS7	KTSLAM	Zinc Plated Lock Assy	1" Cover	4-5/8" Shaft
Bilco RPRS7SS	KTSLAM/S	Stainless Steel Lock Assy	1" Cover	4-5/8" Shaft
Bilco RPRS7-1	KTSLAM-T	Zinc Plated Lock Assy	2" Cover	5-5/8" Shaft
Bilco RPRS7SS-1	KTSLAMTS	Stainless Steel Lock Assy	2" Cover	5-5/8" Shaft
Bilco RPRS7-1B	KTSLAM-TB	Zinc Plated Lock Assy	3" Cover	6-5/8" Shaft
Bilco RPRS7-TBSS	KTSLAMSTB	Stainless Steel Lock Assy	3" Cover	6-5/8" Shaft
