Bilco JD-2 Type J - Double Leaf - Floor Access Door - Drainage Channel Frame - 48" x 48" - 300 PSF
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
3,587.56 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 10-15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Type J - Double Leaf - Floor Access Door - Drainage Channel Frame - 48" x 48" - 300 PSF
Standard Features and Benefits:
Constructed with a channel frame for use in exterior applications or in those situations where there is concern of water or other liquids entering the access opening.
Type J floor access doors feature steel construction, red oxide primer finish, and engineered lift assistance for easy one-hand operation.
Engineered with lift assistance for smooth, easy one-hand door operation, regardless of size
Automatic hold-open arm locks the cover in the open position to ensure safe egress
Constructed with corrosion resistant materials to provide many years of trouble free, dependable service
Heavy-duty construction and positive latching mechanism help to prevent unauthorized access.
The replacement lifting mechanism for the Bilco JD-2 Type J - Double Leaf - Floor Access Door - Drainage Channel Frame - 48" x 48" - 300 PSF is the
Bilco RPSWJ100 Replacement 100lb Lifting Mechanisms for Vault Door as seen here:
Specifications:
Size:
48"W x 48"L.
Material:
Cover and frame are 1/4" (6 mm) steel
Cover:
Diamond-pattern tread plate reinforced for 300 psf (1464 kg/m2) live load.
Frame:
Formed channel frame with full anchor angle welded around the perimeter. A 1-1/2" (38mm) drain coupling is welded under the frame for a pipe connection to a dry well or disposal system.
Hinges:
Heavy forged brass hinges with 3/8" (9 mm) type 316 stainless steel hinge pins.
Latch:
Type 316 stainless steel slam lock with fixed interior handle and removable exterior turn/lift handle. Latch release is protected by a flush, gasketed, removable screw plug
Lift Assistance:
Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with grip handle release.
Finish:
Alkyd base red oxide primer.
Hardware:
Engineered composite compression spring tubes and steel compression springs packed in grease. Slam lock and all fasteners are type 316 stainless steel. All other hardware is zinc plated/chromate sealed
Brochure

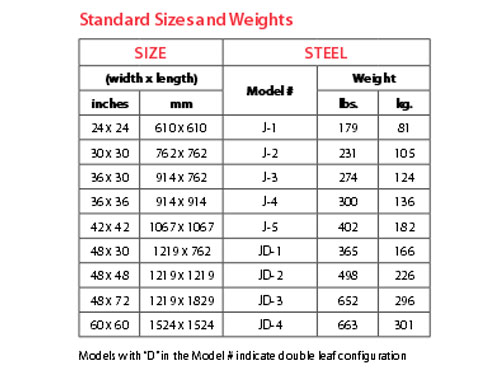

Sizes and Shipping Weights
Template
Installation Instructions

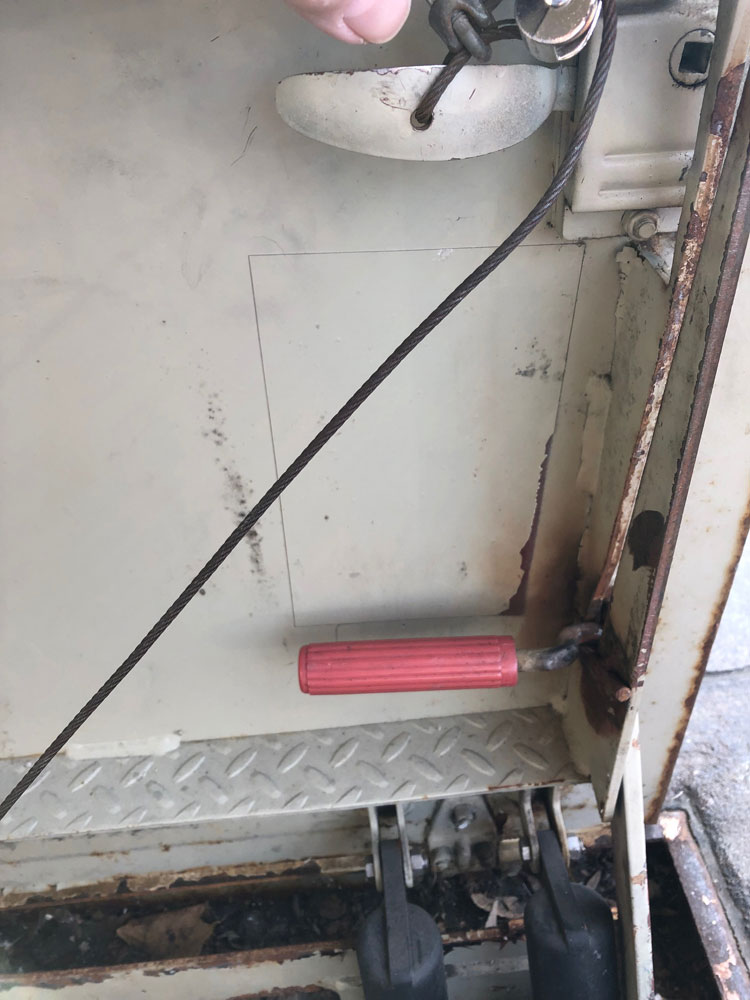

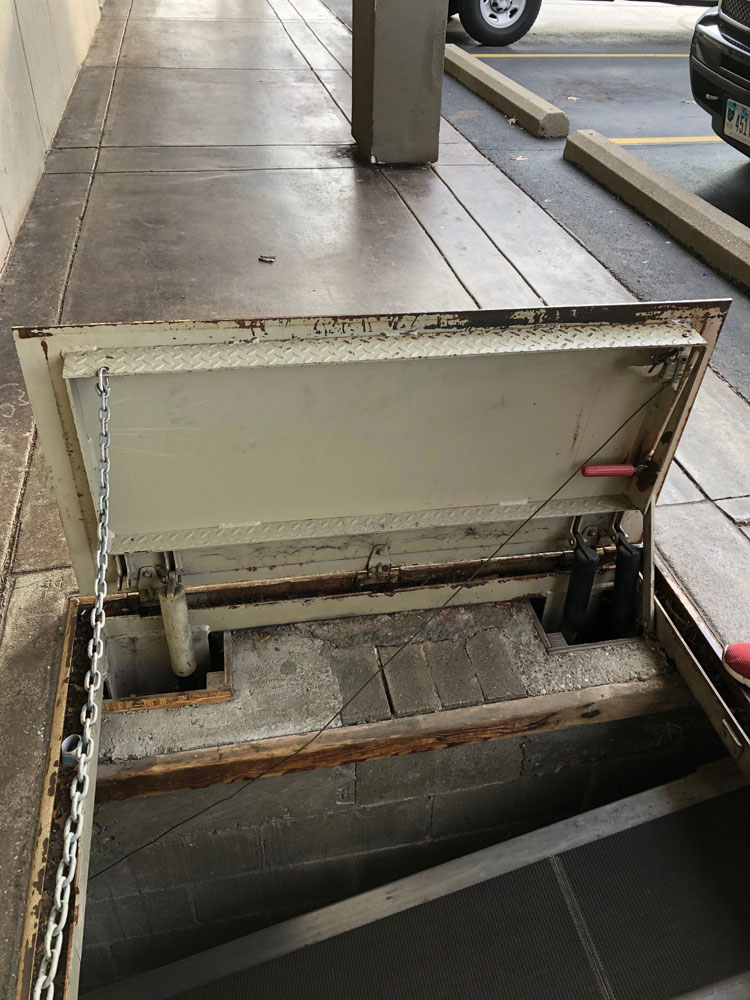

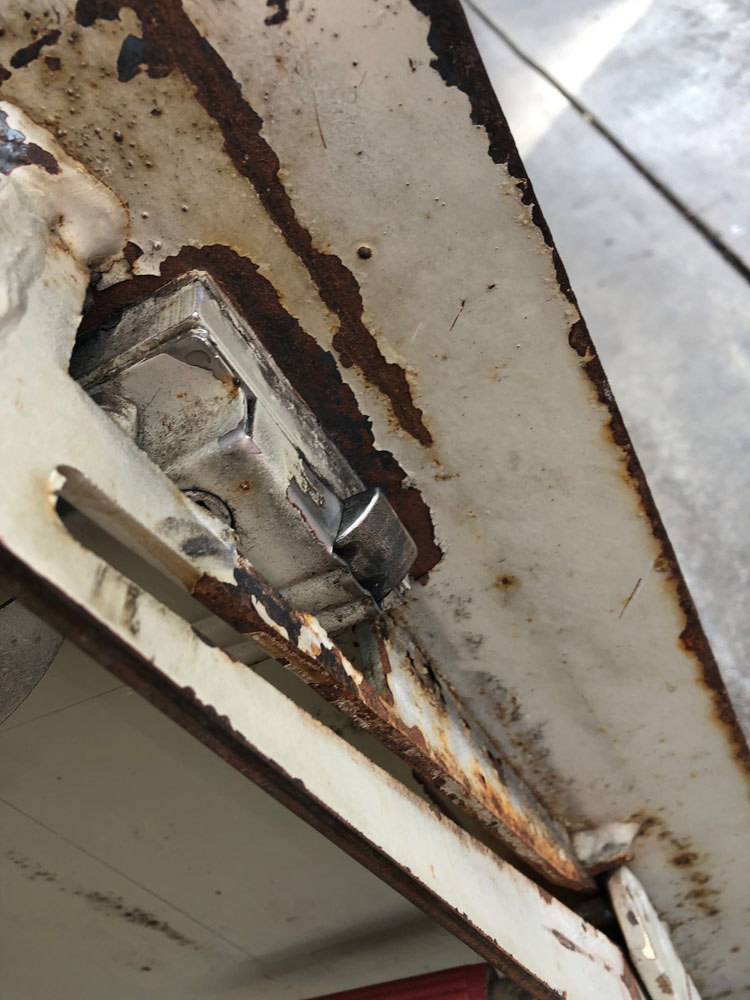

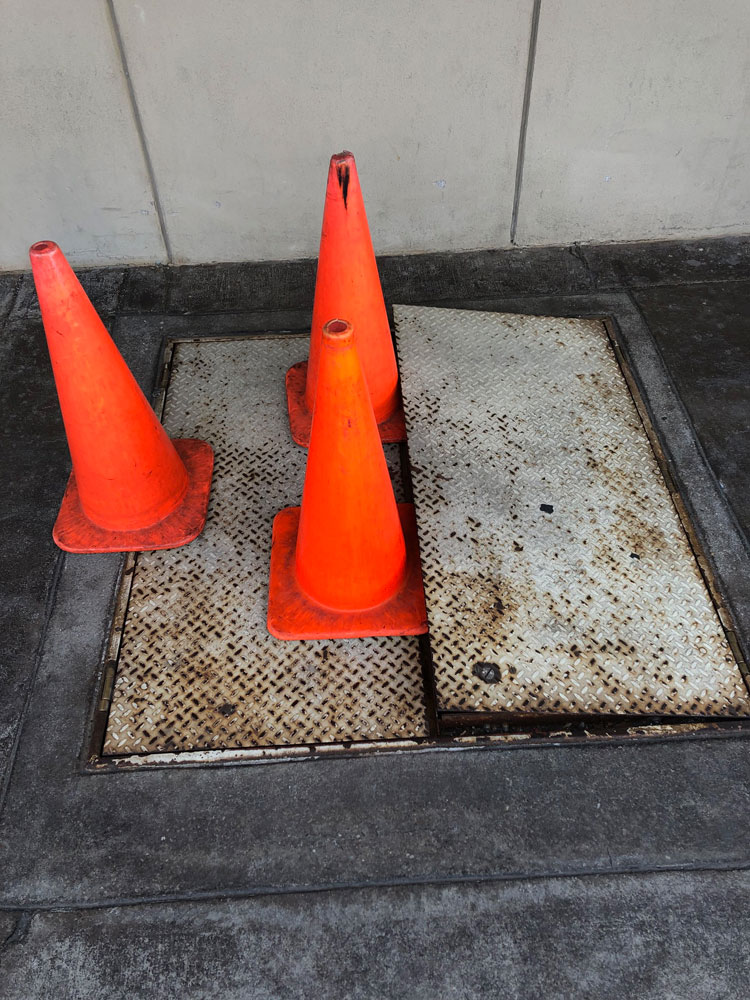

Customer Supplied Photos
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
