Bilco JD-2AL

copy to clipboard

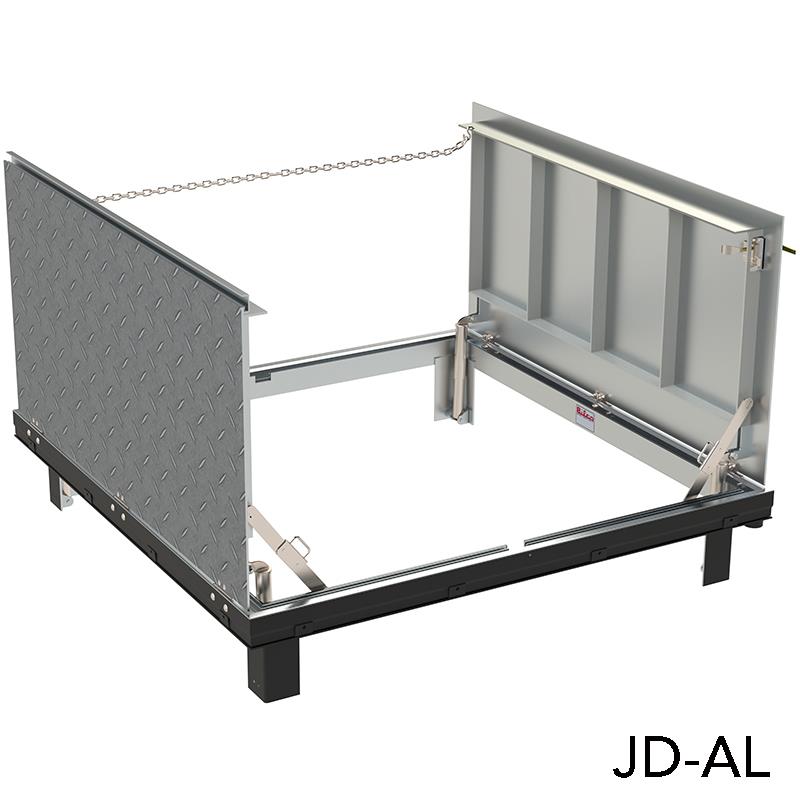

Bilco JD-2AL Type J-DAL - Double Leaf - Floor Access Door - Drainage Channel Frame - 48" x 48" - 300 PSF - Aluminum

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Bilco JD-2AL Type J-DAL - Double Leaf - Floor Access Door - Drainage Channel Frame - 48" x 48" - 300 PSF - Aluminum
Image 2
More from Bilco
Price: $2,826.19 USD
Ships From
Comments (Optional)
ADD TO CART
This item is not in stock and typically ships in 10-15 business days.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Type J-DAL - Double Leaf - Floor Access Door - Drainage Channel Frame - 48" x 48" - 300 PSF - Aluminum

    Standard Features and Benefits:
    • Constructed with a channel frame for use in exterior applications or in those situations where there is concern of water or other liquids entering the access opening.
    • Type J-AL floor access doors feature aluminum construction, type 316 stainless steel hardware, and engineered lift assistance for easy one-hand operation.
    • Standard Type 316 Stainless Steel Hardware
    • Engineered with lift assistance for smooth, easy one-hand door operation, regardless of size
    • Automatic hold-open arm locks the cover in the open position to ensure safe egress
    • Constructed with corrosion resistant materials to provide many years of trouble free, dependable service
    • Heavy-duty construction and positive latching mechanism help to prevent unauthorized access
    • Exclusive 25-year warranty

    Specifications:
    • Size: 48"W x 48"L.
    • Material: Cover and frame are 1/4" (6 mm) aluminum
    • Cover: Diamond-pattern tread plate reinforced for 300 psf (1464 kg/m2) live load.
    • Frame: Extruded aluminum channel frame with bend down anchor tabs around the perimeter. A 1-1/2" (38mm) drain coupling is welded under the frame for a pipe connection to a dry well or disposal system
    • Hinges: Heavy forged Type 316 stainless steel hinges with 1/4" (6 mm) type 316 stainless steel hinge pins.
    • Latch: Type 316 stainless steel slam lock with fixed interior handle and removable exterior turn/lift handle. Latch release is protected by a flush, gasketed, removable screw plug
    • Lift Assistance: Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with release handle automatically locks cover(s) in the open position.
    • Finish: Mill Finish aluminum with a bituminous coating applied to the exterior of the frame.
    • Hardware: Type 316 stainless steel throughout




Questions and Answers
Q: Is this capable of supporting H20 loading?
A: The Bilco JD-2AL is not H20* rated however the Bilco JD-2ALH20 Type JD-AL-H20 - Double Leaf - Floor Access Door - Drainage Channel Frame - 48" x 48" - H20 Loading - Aluminum as seen here:

Click Here

is indeed designed to withstand vehicular traffic in off-street locations. Single or double leaf covers are constructed of 1/4” (6.35mm) diamond pattern plate and reinforced for AASHTO H-20 wheel loading.

* According to jensenmetaltech.com Covers designed for high density traffic conditions utilizing a 16,000 lb. dual wheel load with a 30 percent increase for impact as seen here:

Click Here
