ASI 5001-SS

Name: ASI 5001-SS Cartridge Soap Dispenser
Brand: ASI
SKU: ASI 5001-SS
Price: 120.08 USD

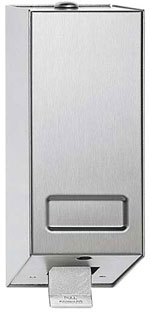

ASI 5001-SS Cartridge Soap Dispenser

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $120.08 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Surface Mounted Disposable Cartridge Soap Dispenser

Operation

Soap is forced through disposable valve by pulling a lever forward.
Disposable cartridges are available to dispense soap, hand lotion, heavy duty cleaner, waterless cleaner and antiseptic soap and are typically good for 1500 washings.
Typical soap cartridges are super-concentrated cleansing formula approved for medical and food handling facilities.

Installation

Unit is surface mounted to wall or partition using No 10 screws (by others) through concealed mounting holes.
For compliance with ADA Accessibility Guidelines, unit should be installed so that dispenser lever is 54" (1372mm) maximum above finished floor (AFF) if clear floor side reach access is provided or 48′′ (1219mm) maximum AFF if clear floor forward reach access only is provided or 46′′ (1168mm) max. AFF if side reach over an obstruction is only provided (i.e. vanity).
For general utility install unit so that lever is 46′′ (1168mm) AFF or 15′′ (382mm) above wash basin.
