Home > Bathroom Hardware > Soap Dispensers > Recess Mounted > ASI 5002

ASI 5002

copy to clipboard

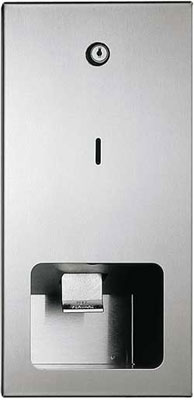

ASI 5002 Recessed Cartridge Soap Dispenser

enlarge

enlarge

× This image is for a similar product but it will differ in size, color and/or other attributes.

ASI 5002 Recessed Cartridge Soap Dispenser

Price: $310.33 USD

Ships From

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

ASI Recess Mounted Disposable Cartridge Soap Dispenser

New cartridge and valve with each refill
Cartridge not included
Refill viewer slot provided at front face
Satin stainless steel
Tumbler lock keyed alike to other ASI washroom equipment
Includes one lock (L-001) and one key (E114 key)
Rough wall opening: 5-3/4′′W x 13-1/2′′H x 4-1/4′′D (146mm x 343mm x 108mm)

Soap Dispensing Information

Operation

Soap is forced through disposable valve by pulling a lever forward.
Disposable cartridges are available to dispense soap, hand lotion, heavy duty cleaner, waterless cleaner and antiseptic soap and are typically good for 1500 washings.
Typical soap cartridges are super-concentrated cleansing formula approved for medical and food handling facilities.

Installation

Rough Wall Opening (RWO) required is 5-3/4′′W x 13-1/2′′H x 4-1/4′′D (146mm x 343mm x 108mm)
Unit is recessed mounted in wall or partition using No 10 self tapping screws (by others) through concealed mounting holes.
For compliance with ADA Accessibility Guidelines, unit should be installed so that dispenser lever is 54" (1372mm) maximum above finished floor (AFF) if clear floor side reach access is provided or 48" (1219mm) maximum AFF if clear floor forward reach access is provided or 46′′ (1168mm) max. AFF if side reach over an obstruction is only provided (i.e. vanity).
For general utility install unit so that lever is 46′′ (1168mm) AFF or 15′′ (382mm) above wash basin.

Questions and Answers

Q: IM BUY 2 5002 SOAP DISPENSERS but im dont know what can a soap we need to buy

A: This link here is will help identify the soap compatible with your dispensing model:

I find an online search for 800 ml bag in a box soap returns several matches for compatible soap products.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.

Please reply to this email or contact our sales department here:

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

(Required, used to email you once question is answered.)
