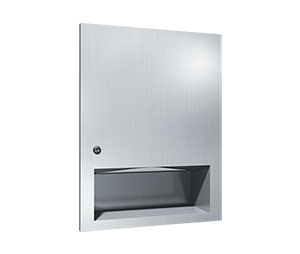

Well-suited for the smaller washroom with less space and traffic, this unit dispenses 350 C-fold or 475 multi-fold paper towels. Door held closed with tumbler lock. All exposed surfaces have No 4 satin finish. Door shall be attached to the side of cabinet with a full length 3/16′′(5mm) dia. stainless steel multi-staked piano hinge and shall be held closed with tumbler lock keyed alike to other ASI washroom equipment. Structural assembly of all components shall be of welded construction. All exposed surfaces shall be No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Unit is mounted in wall recess using No 10 self tapping screws (by others) through concealed mounting holes provided. For compliance with ADA Accessibility Guidelines, unit should be installed so that towel dispenser slot is 54" (1372mm) maximum above finished floor (AFF) if clear floor side reach access is provided or 48" (1219mm) max. AFF if clear floor forward reach access only is provided. For general utility mount unit 42" (1067mm) from top of finished floor to bottom of unit. Note that top of RWO is 3/4" (19mm) below top of unit.
Towels are self-feeding until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly.
