ASI 0864-25

Name: ASI 0864-25 Sanitary Napkin and Tampon Vendor
Brand: ASI
SKU: ASI 0864-25
Price: 516.53 USD

ASI 0864-25 Sanitary Napkin and Tampon Vendor

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $516.53 USD

Comments (Optional)

In Stock (Minimums Apply):

Yonkers, NY Warehouse Qty: 183

Quick Ship - up to 25 units available to ship in 1 business day

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Surface Mounted Sanitary Napkin and Tampon Vendor

Holds 30 napkins and 27 tampons of specified sizes
Satin stainless steel
Tumbler locks keyed alike to other ASI washroom equipment
Includes two locks (L-001), two keys (E114 key), one lock (L-002) and one key (HL202 key)
Internal coin-box keyed differently than door locks

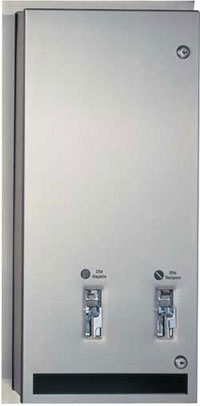

Recess mounted model shown in image


Cut Sheet	Parts Diagram

Operation

Coin mechanism - 25¢ operation.
Napkin and tampon dispensers operate independently.
Selected product drops into vending opening after operator actuation.
Unit vend product supply is replenished on cycle determined by maintenance needs by opening door and manually reloading product into dispenser supply tracks.
Track weights MUST BE USED to provide positive feed.

Installation

Unit is surface mounted using four (4) No 10 self-tapping screws (by others).
For maximum usability and compliance with ADA Accessibility Guidelines, unit should be installed so that coin slot is between 54" (1372mm) maximum above finished floor (AFF) and 38" (965mm) minimum AFF.
Installer must provide adequate wall anchoring for screw mounting.
