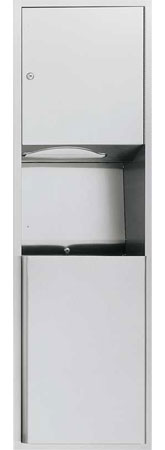

ASI 04697-4 Semi-Recessed Paper Towel Dispenser and Waste Receptacle Unit

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $552.77 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Semi-Recess Mounted Paper Towel Dispenser and Waste Receptacle

Dispenses 600 C-fold, 800 multi-fold or 1100 single-fold paper towels
Waste capacity of 12 gallons
Satin stainless steel
Tumbler locks keyed alike to other ASI washroom equipment
Rough wall opening: 15-3/4" W x 54-1/2" H x 3-1/4" D minimum (400mm x 1384mm x 83mm)

Operation

Paper towels are manually withdrawn through dispensing slot.
An adjustable towel adapter ensures that towels feed properly until depleted.
Dispenser is refilled by unlocking door and replacing towels for an empty or partially empty unit.
Dispenser supply is replenished on cycle determined by maintenance needs.

Installation

Rough wall opening (RWO) required is 15-3/4" W x 54-1/2" H x 3-1/4" D minimum (400mm x 1384mm x 83mm)
For general utility mount unit 16" (106mm) above finished floor (AFF) from bottom of unit.
Secure unit to wall with No 10 self-tapping screws (by others) through concealed mounting holes.
For compliance with ADA Accessibility Guidelines, install unit so that towel dispenser slot is 54" (1372mm) maximum AFF if clear floor side reach access is provided. or 48" (1219mm) maximum AFF if clear forward reach access is only provided.
SR collar is installed on cabinet prior to mounting in recess following procedure described on SR Collar Data Sheet.
