ASI 0197-1-93

Name: ASI 0197-1-93 Turbo-Dri™ Automatic High Speed Hand Dryer - (110-120V) - Satin Stainless Steel
Brand: ASI
SKU: ASI 0197-1-93
Price: 695.10 USD

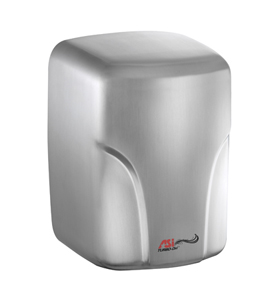

ASI 0197-1-93 Turbo-Dri™ Automatic High Speed Hand Dryer - (110-120V) - Satin Stainless Steel

× This image is for a similar product but it will differ in size, color and/or other attributes.

ASI 0197-1-93 Turbo-Dri™ Automatic High Speed Hand Dryer - (110-120V) - Satin Stainless Steel

Price: $695.10 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

ASI 0197-1-93 Turbo-Dri™ Automatic High Speed Hand Dryer - (110-120V) - Satin Stainless Steel

Quick drying — less than 12 seconds Turbo-Dri™ Automatic High Speed Hand Dryer
Operates automatically from IR sensor activated by beam reflection from objects placed in sensing zone. Motor and heating element shall have internal resetting automatic thermal protection.
Auto-resetting thermostat
60-second automatic shut off
Cover shall be fabricated of heavy-duty, one piece formed stainless steel 1/16" [1,5] thick finished on all exposed surfaces as satin or bright polished (by option specified) or heavy-duty, one piece formed steel 1/16" [1,5] thick finished on all exposed surfaces with white porcelain enamel.
Voltage : 120 VAC, 50/60 Hz. 1.6 kW
Air Output: 68 CFM max - Temp: 140° F (60° C)
Heater: 400 - 900 Watts
Current: 1.6 Amps @ 120 VAC; 1.6 Amps @ 240 VAC
Overall size: 8 1/16" W x 11 19/64" H x 7 5/64" D (287 x 205 x 180 mm)
Finish: Satin Stainless Steel


Cut Sheet	Circuit Diagram	Manual	Template

Operation

Dryer is activated by user placing hands under sensor.
LED in sensor array shines blue light during operation to guide user to optimal hand placement for shorter drying time.
Dryer automatically shuts off after user removes hands from sensor zone.

Installation

Surface mount unit on wall with four (4) 1/4" washers and screws or bolts (not supplied)
Electrical service is supplied and connected (by others) prior to installing cover.
Cover is secured to back plate with recessed, pin-hex socket head cap screws (supplied).
For general utility, install unit so that sensor lens is 44" to 54" [1118 to 1372] AFF.
