ASI 20030

Name: ASI 20030 Surface Mounted Twin Hide-a-Roll Toilet Tissue Dispenser
Brand: ASI
SKU: ASI 20030
Price: 130.79 USD

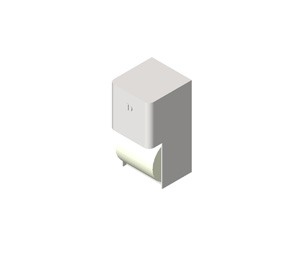

ASI 20030 Surface Mounted Twin Hide-a-Roll Toilet Tissue Dispenser

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $130.79 USD

Comments (Optional)

In Stock (Minimums Apply):

Yonkers, NY Warehouse Qty: 1768

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Surface Mounted Twin Hide-a-Roll Toilet Tissue Dispenser

Holds two rolls up to 5 1/4" (133 mm) diameter (double roll capacity 3600 sheets).
Top roll automatically drops in place when bottom roll is used up.
Type 304 satin finish stainless steel cabinet and mechanism.
Theft-resistant spindles with integral plated steel endpins.
Overall Size: 6 1/16" W x 12 1/8" H x 6 1/2" D (154 x 308 x 165 mm)

Operation

Reloading instructions are printed on graphic label inside door.
Bottom roll is depleted prior to top roll automatically dropping into lower position for use.
Empty rollers cannot be removed without key unlocking door.

Installation

Surface mount unit on wall or partition using four (4) 1/4" x 1" (M6 x 25) Philips pan head self-tapping screws (provided by others) through slots on rear wall into suitable wall preparation (by others).
Top two mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws.
Bottom two mounting holes are horizontal slots for ease of adjustment.
For compliance with ADA Accessibility Guidelines install top of unit between 31" to 54" (794 to 1372) above finished floor and with vertical centerline of unit between 7" to 9" (178 to 228) from commode front
